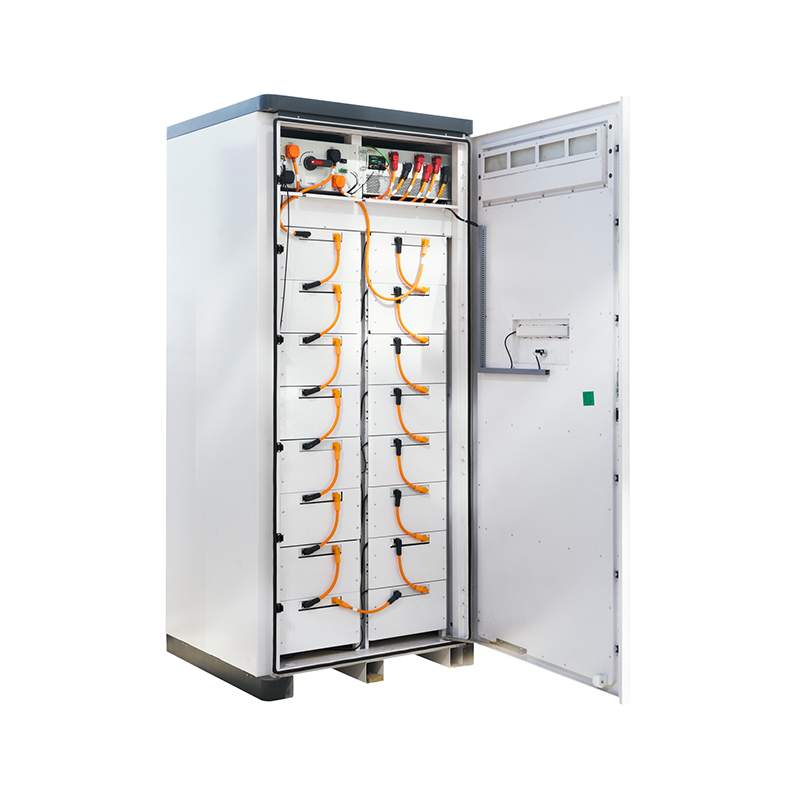

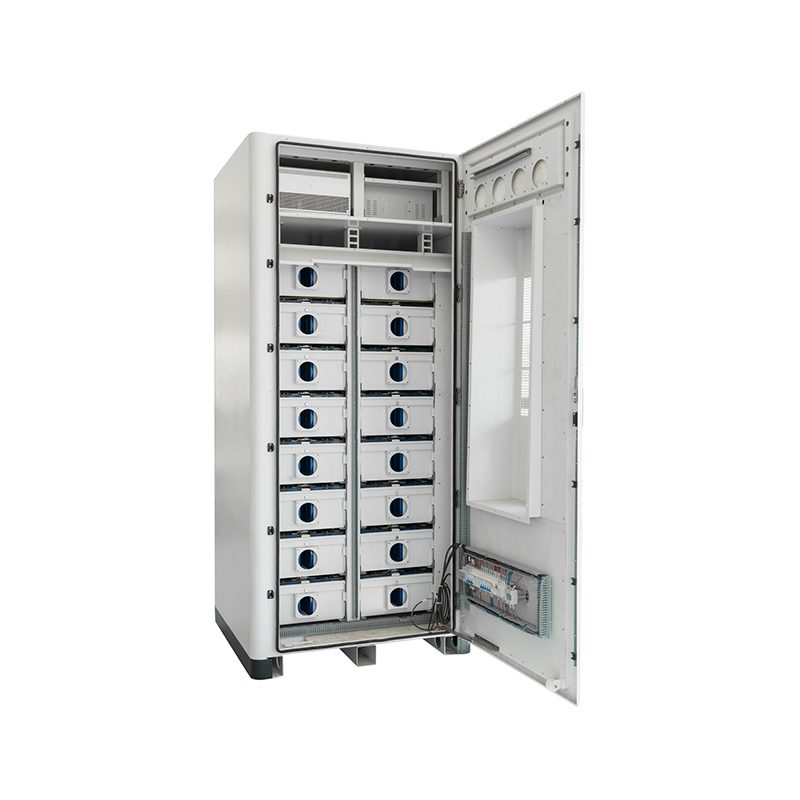

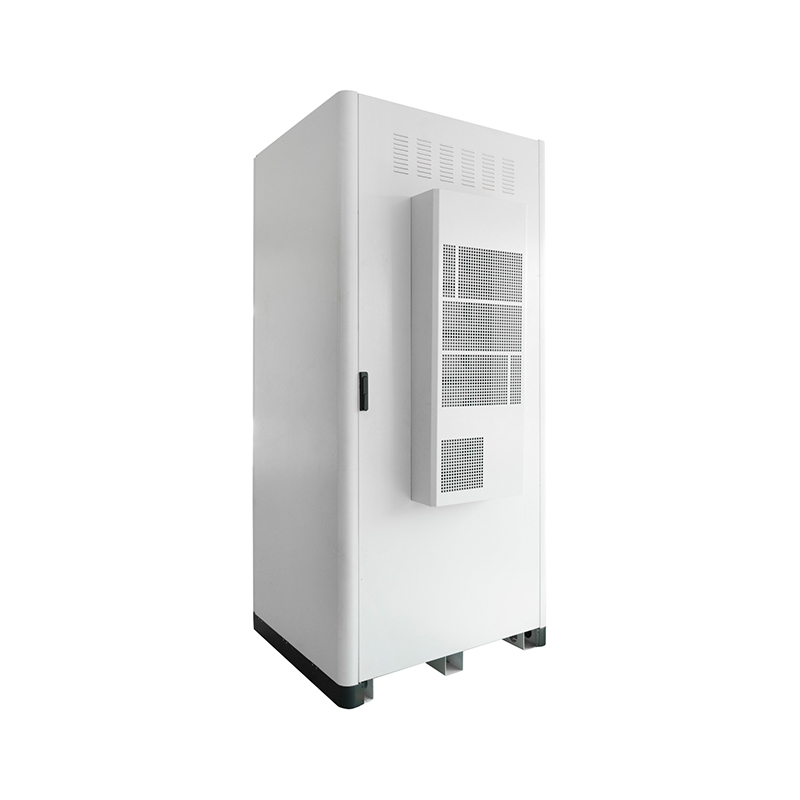

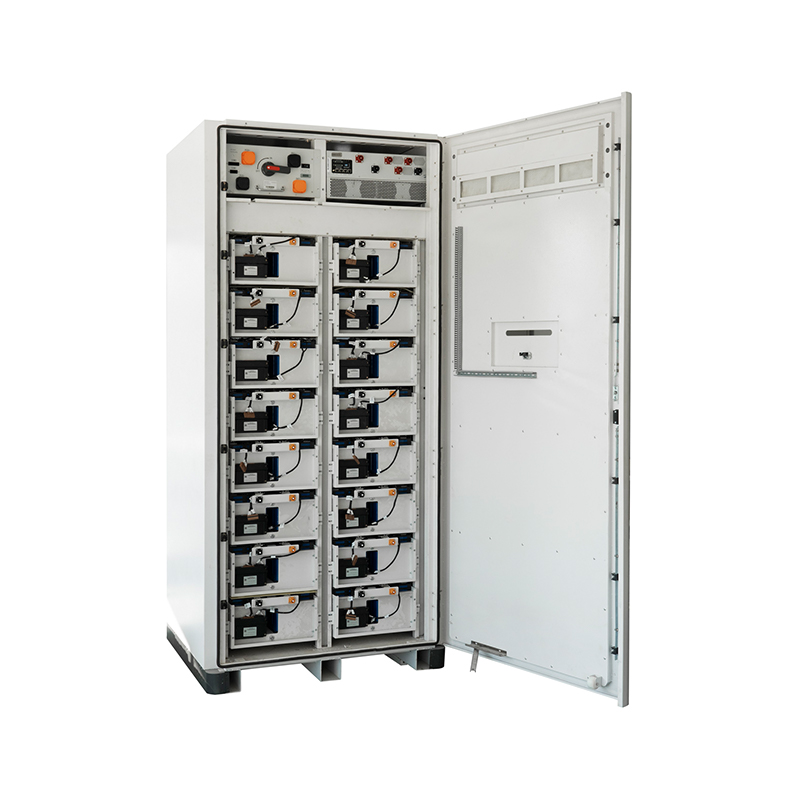

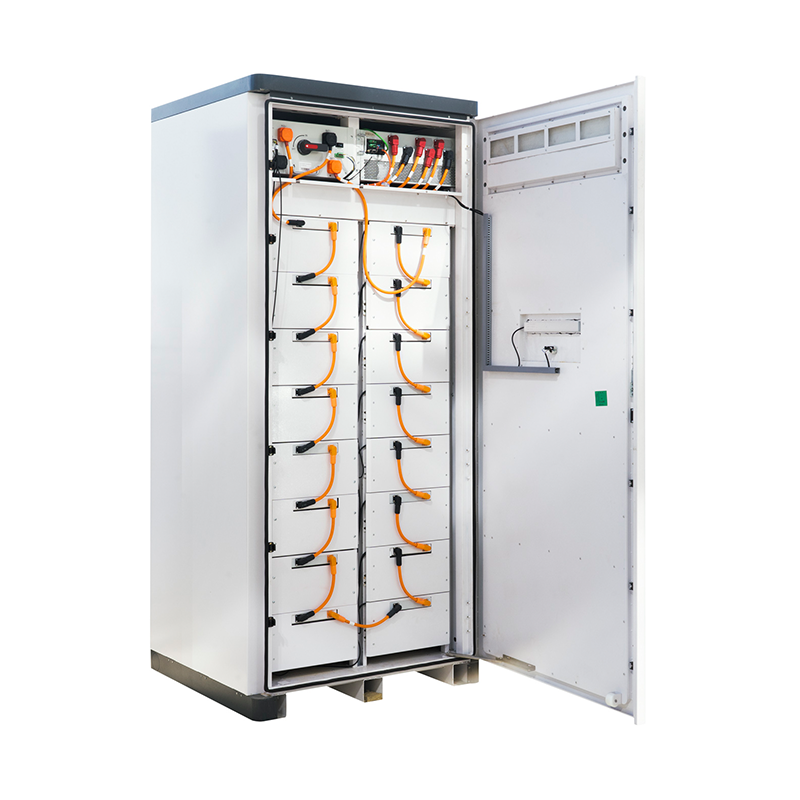

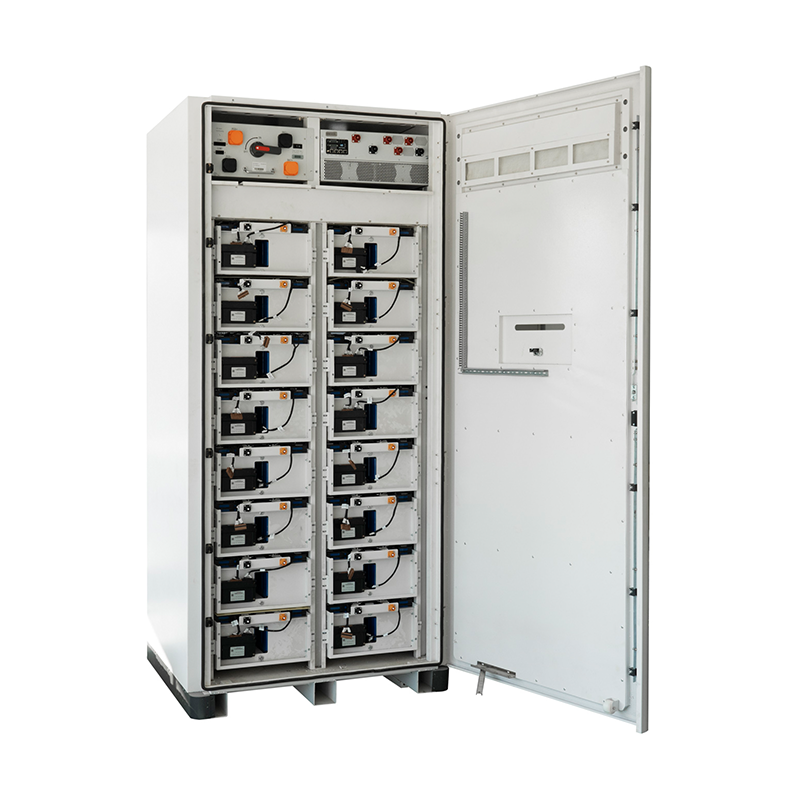

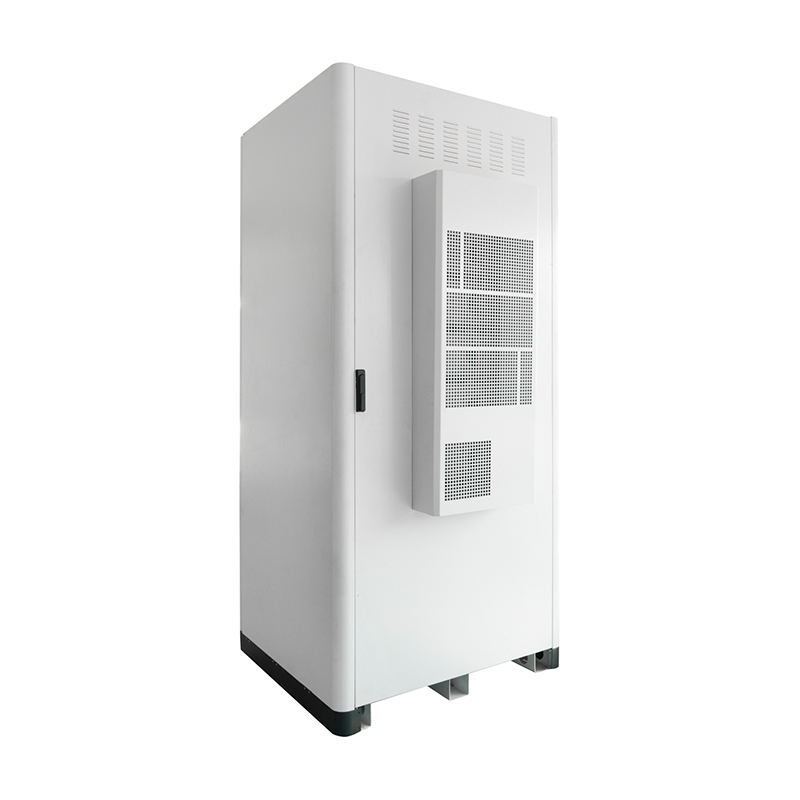

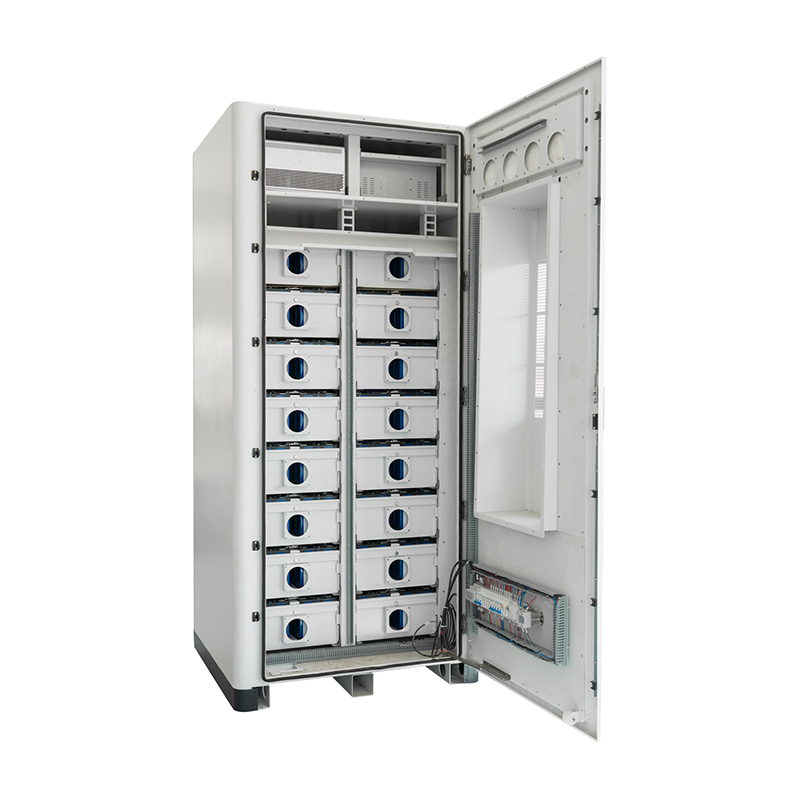

Compact cabinet-style energy storage system for small to medium-sized commercial and industrial applications. It delivers efficient energy storage and fast switching capabilities, supporting both on-grid and off-grid transitions to flexibly respond to varying load demands. With a 215 kWh capacity, it effectively meets daily peak shaving and load management requirements. The system is stable, intelligent, and engineered to reduce energy costs, improve power reliability, and minimize dependence on traditional grid supply. It is well-suited for manufacturing facilities, commercial buildings, and retail environments, enabling enhanced operational continuity and cost-efficient energy utilization.
| Basic Parameters | GCab-W-200 | GCab-W-250 | GCab-W-800 |
| Basic Electrical Parameters | |||
| Rated Capacity | 225kWh | 257kWh | 836kWh |
| Rated Charge/Discharge Power | 110kW/110kW | 125kW/125kW | 418kW/418kW |
| Voltage Range (VDC) | 710-1500 | 810-1500 | 1123-1500 |
| Depth of Discharge (DoD) | 95% | ||
| Round-trip Efficiency | ≥91% | ||
| Mechanical & Structural Parameters | |||
| Size (WxDxH) | 1200×1100×2700mm | 1200×1100×2700mm | 1550×2430×2900mm |
| Weight | 2.5T | 2.65T | 10.5T |
| Protection Rating | IP54 + IK10 | ||
| Cooling Method | Forced air cooling | ||
| Battery System Characteristics | |||
| Battery Type | LFP (Lithium Iron Phosphate) | ||
| Cycle Life | 8000 cycles (capacity retention>80%) | ||
| Service Life | 15 years | ||
| Operating Temperature Range | Charging: 0-50℃ / Discharging: -20-55℃ | ||
| Self-discharge Rate | ≤3%/month | ||
| Power Conversion System | |||
| PCS Topology | Bidirectional energy storage converter + MPPT | ||
| Grid-tied Characteristics | Voltage ±10%, Frequency ±2.5% | ||
| Off-grid Switching Time | ≤10ms | ||
| THDI | ≤3% | ||
| Intelligent Management System | |||
| EMS Functions | Peak-valley arbitrage control, demand management, VPP interface, SOC balancing algorithm | ||
| Communication Protocols | Standard Modbus TCP/RTU, IEC 61850, CAN 2.0B | ||
