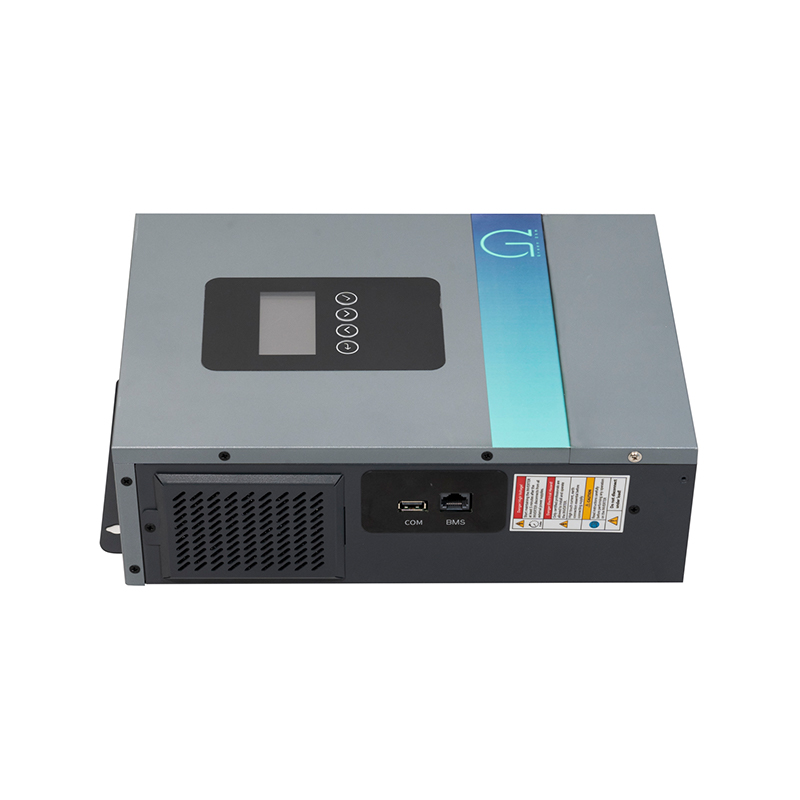

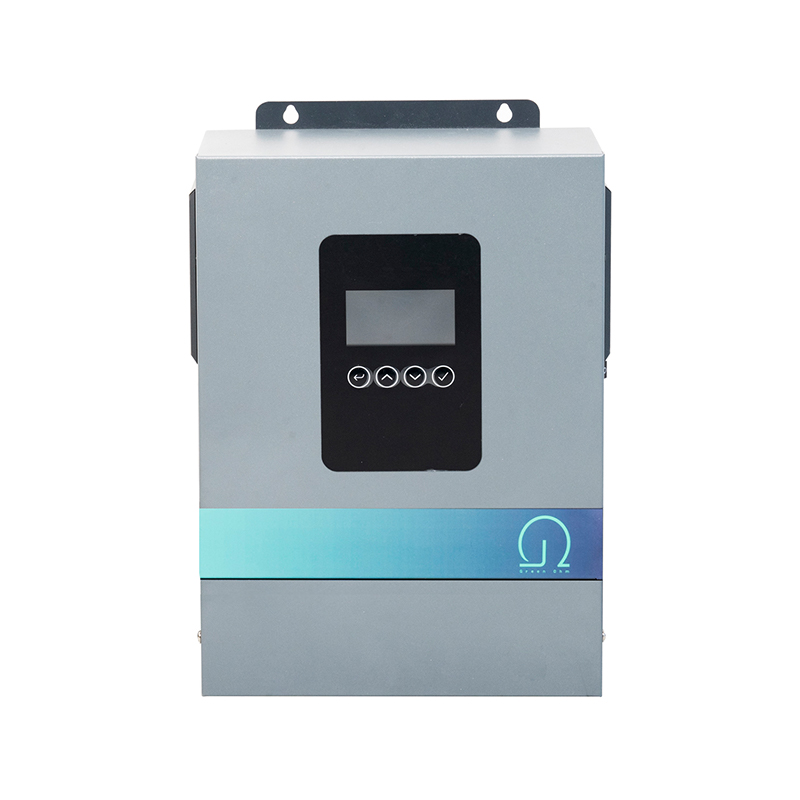

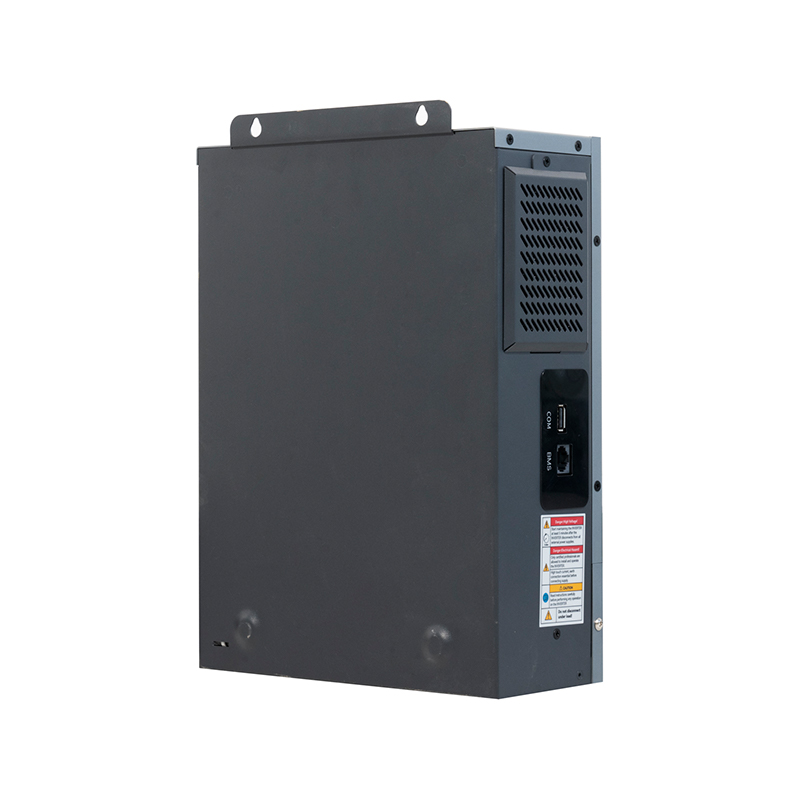

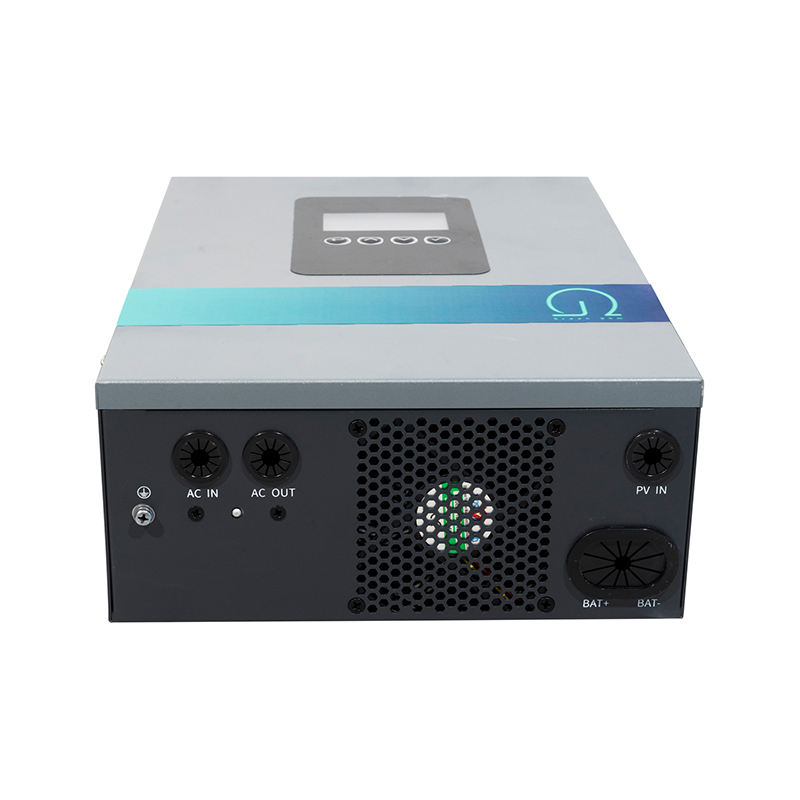

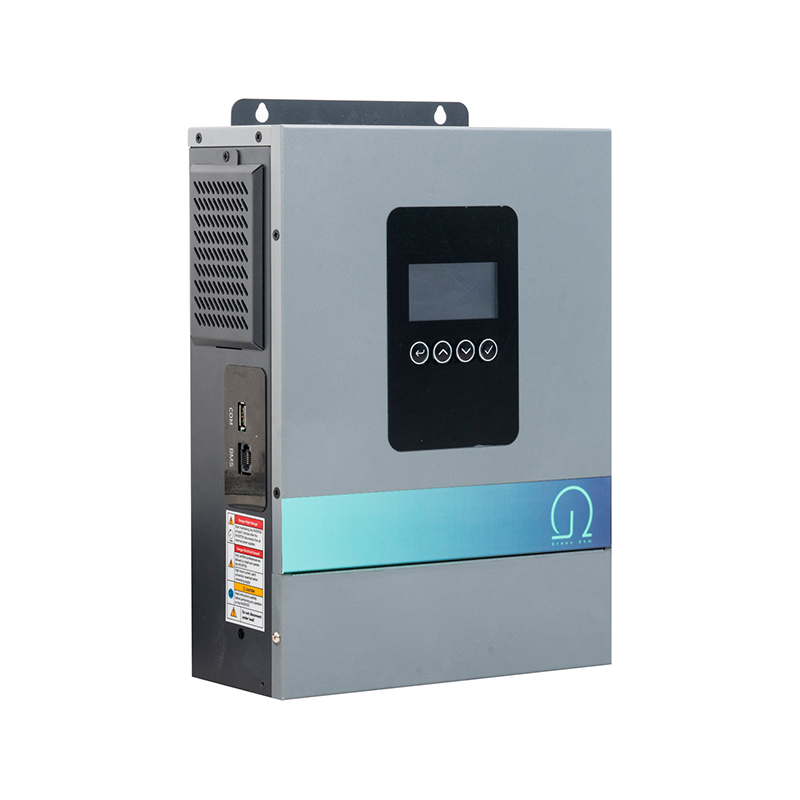

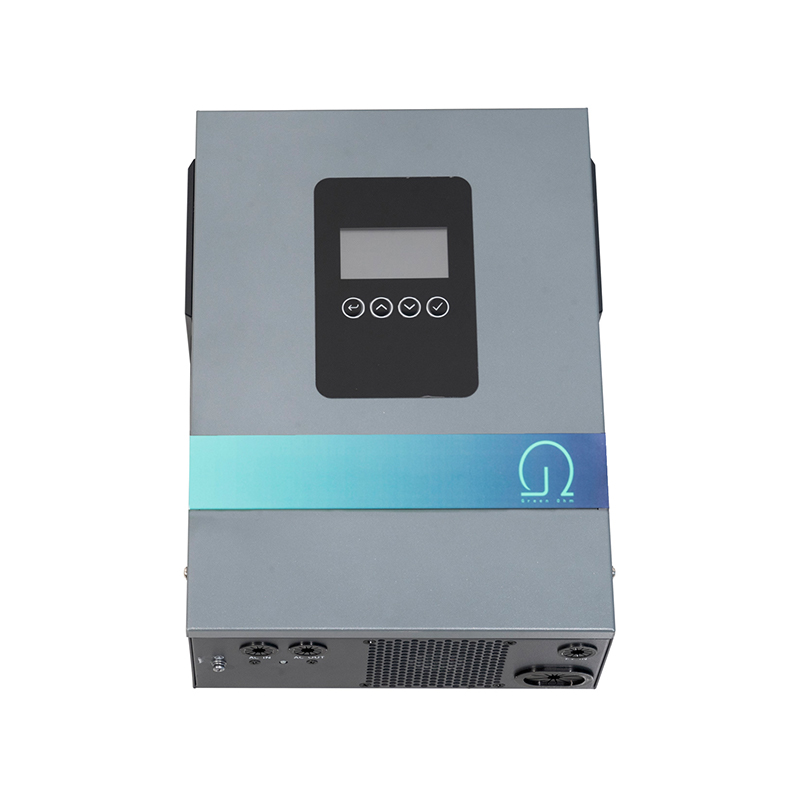

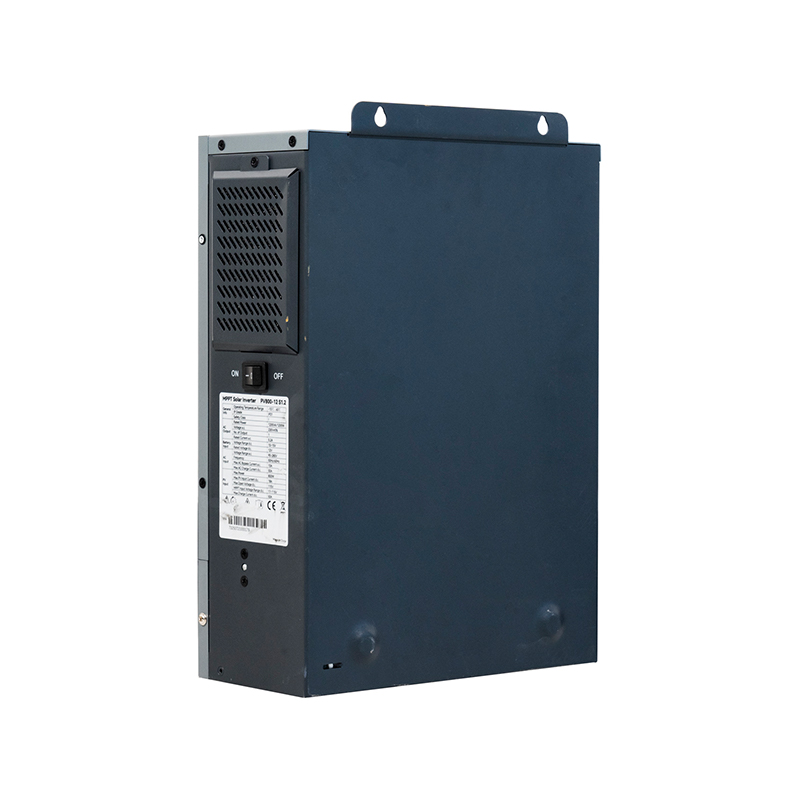

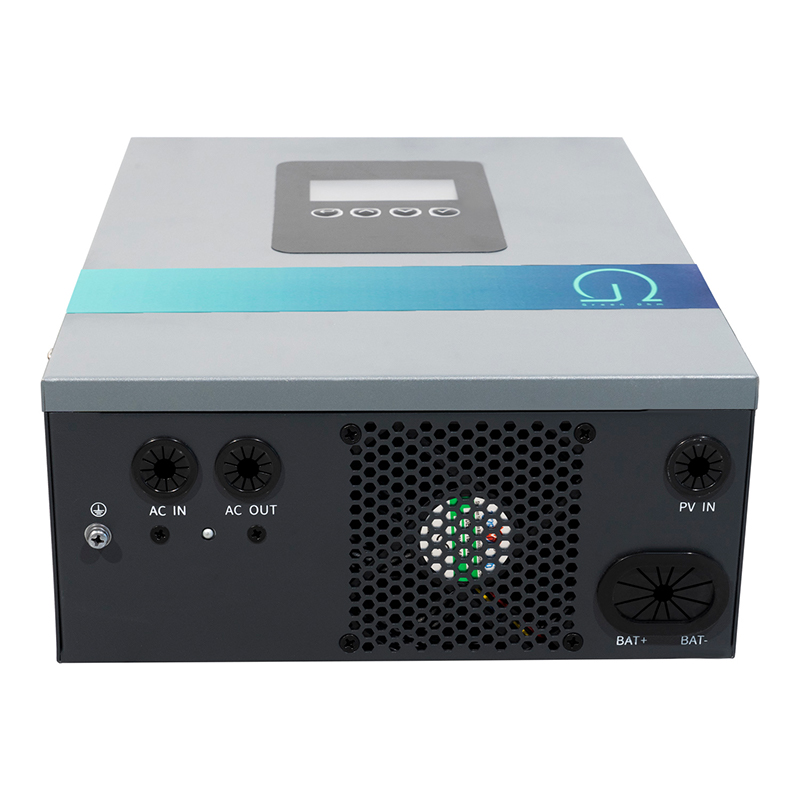

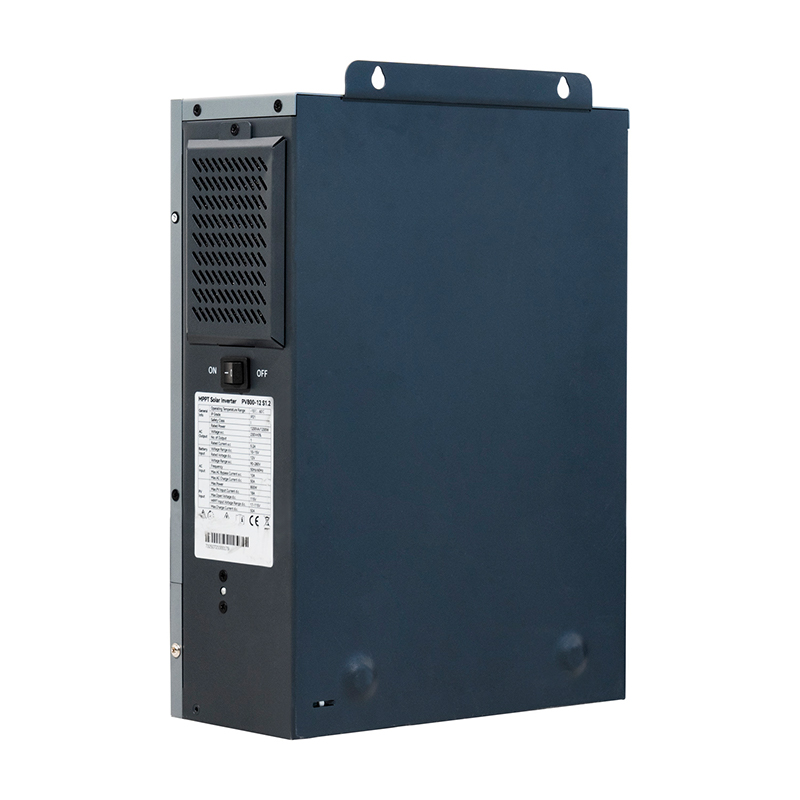

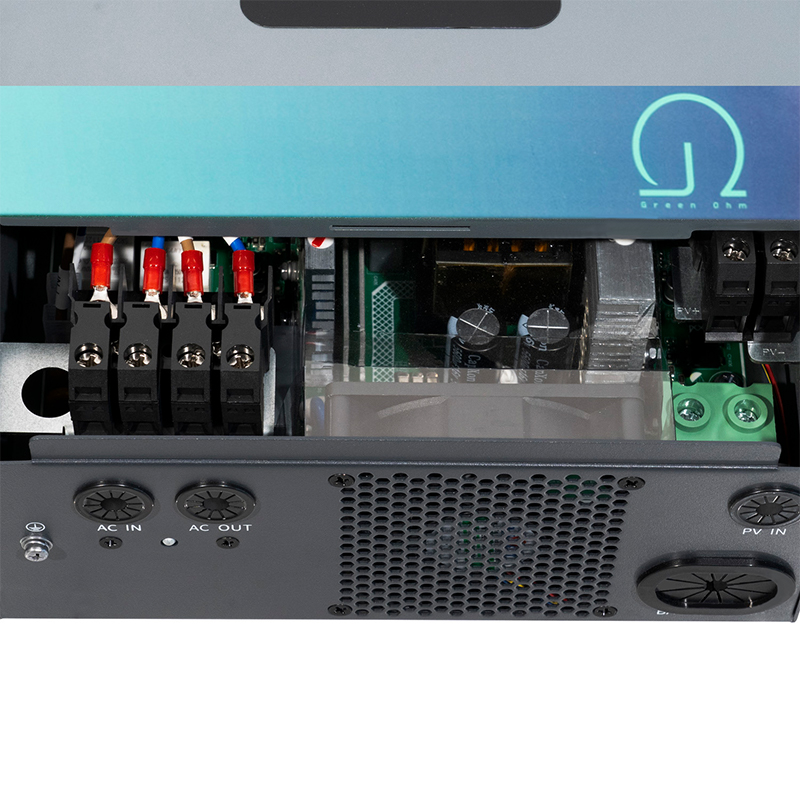

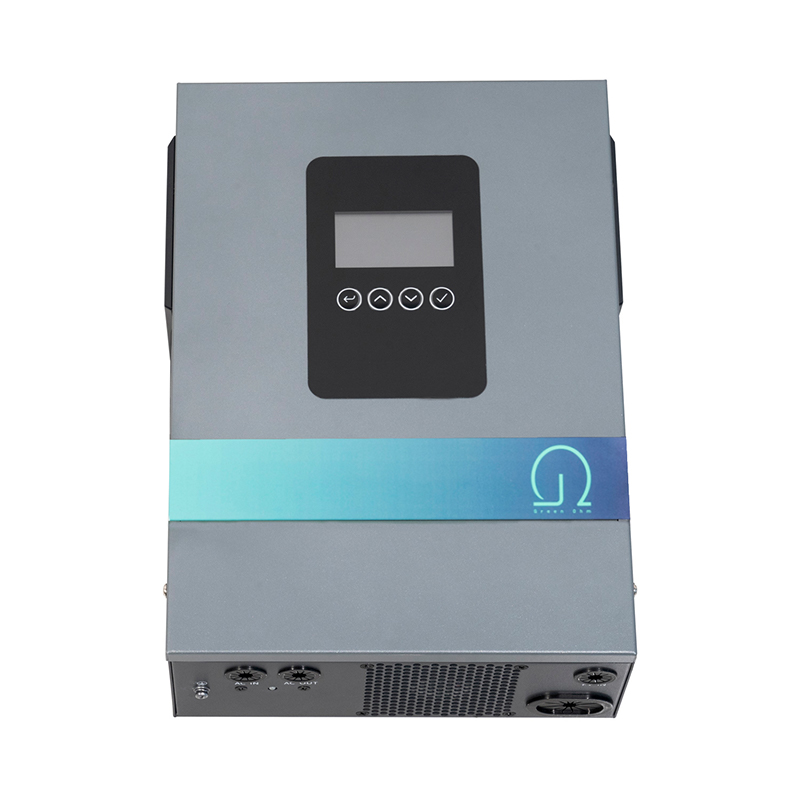

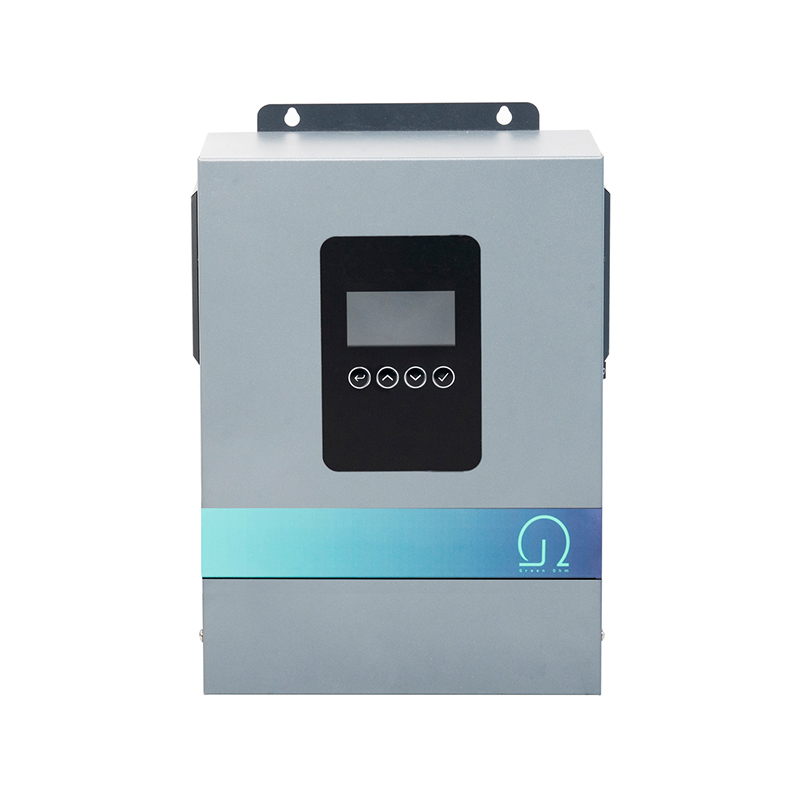

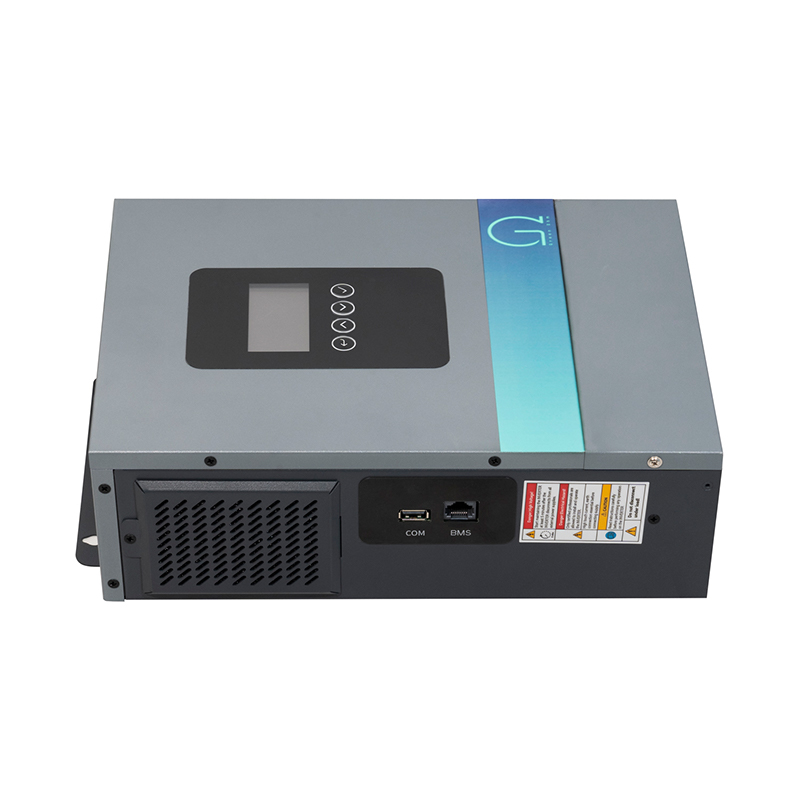

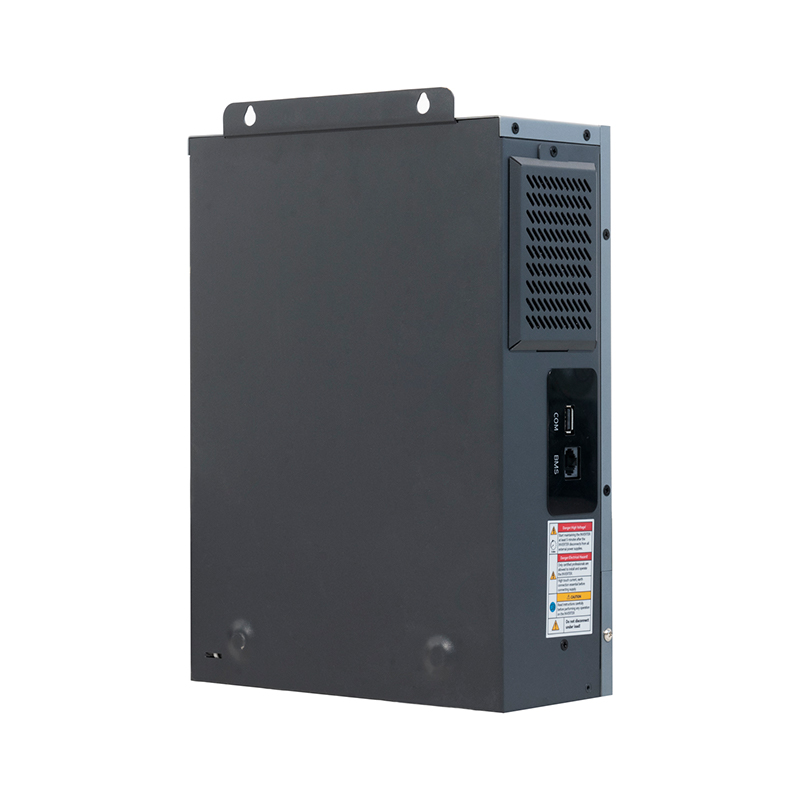

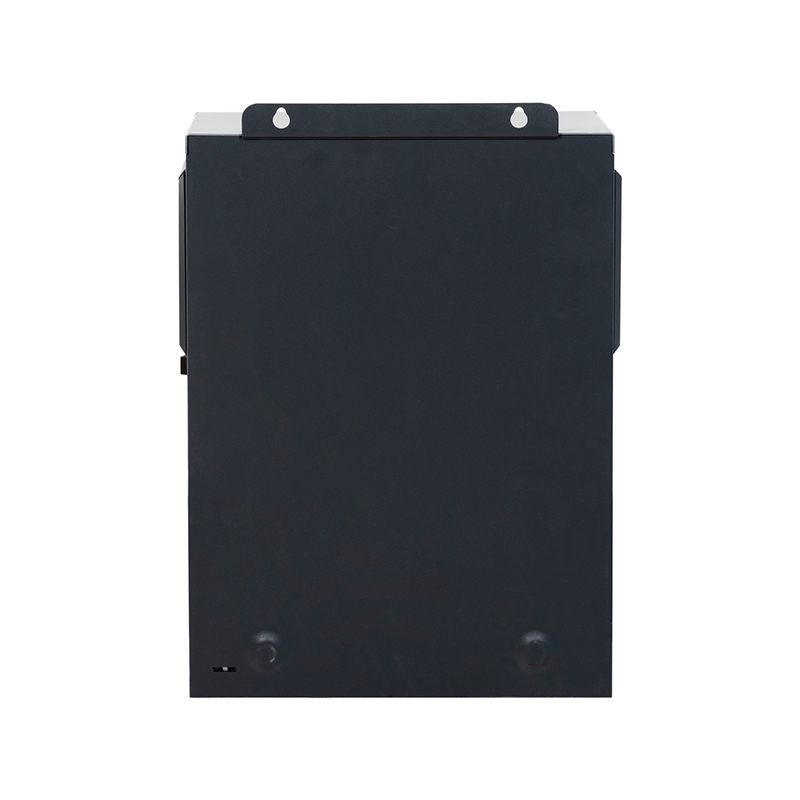

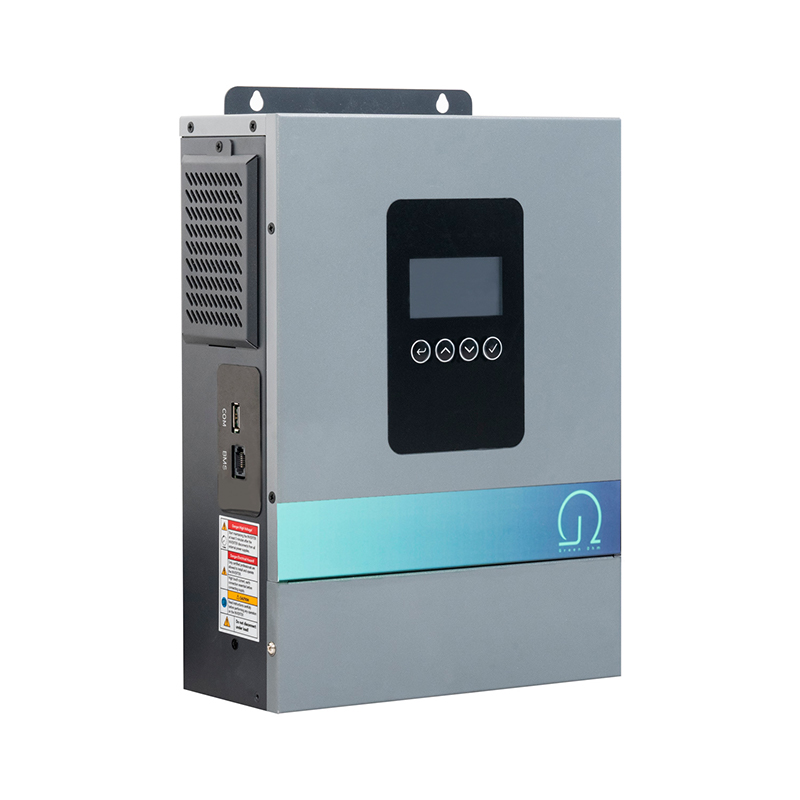

1.2kW low-power off-grid inverter, suitable for camping, outdoor activities, and powering small devices. It can directly convert DC power sources such as solar panels and batteries into stable 230VAC pure sine wave AC power to meet daily low-power electricity needs. With a pure sine wave output, it protects sensitive electronic devices and reduces interference. Lightweight and compact, making it easy to install in camper vans and small solar systems.
| Model | PV800-12 S1.2 |
| AC Input | |
| Rated Input Voltage (VAC) | 208 / 220 / 230 / 240; L + N + PE |
| Voltage Range (VAC) | 90-280±3 (normal mode); 170-280±3 (UPS mode) |
| Frequency (Hz) | 50 / 60 (Auto Adaptive) |
| AC Output | |
| Rated Capacity (kW) | 1.2 |
| Surge Power (kVA) | 2.4 |
| Voltage (VAC) | 208 / 220 / 230 / 240 |
| Power Factor (PF) | 1 |
| Frequency | 50/60Hz±0.1% |
| Switch Time (ms) | 10 (APP/UPS/GEN mode) |
| Wave Form | Pure Sine Wave |
| Overload Capacity (Battery Mode) | 60s@102%-120% load; 10s@120%-200% load; |
| Max. Efficiency (Battery Mode) | 90%@12VDC |
| Parallel Quantity | NA |
| Charger (PV / AC) | |
| Solar Charger Type | MPPT |
| Max PV input current / power | 18A / 800W |
| MPPT Range@Operating Voltage (VDC) | 17–115 |
| Max PV Open Circuit Voltage (VDC) | 115 |
| Max PV Charge Current (A) | 50 |
| Max AC Charge Current (A) | 50 |
| Max. Charge Current (PV + AC) (A) | 100 |
| Battery | |
| Normal Voltage (VDC) | 12 |
| Floating Charge Voltage (VDC) | 13.8 |
| Overcharge Protection (VDC) | 15 |
| Battery Type | Lead-acid / Lithium |
| Interface | |
| HMI | LCD |

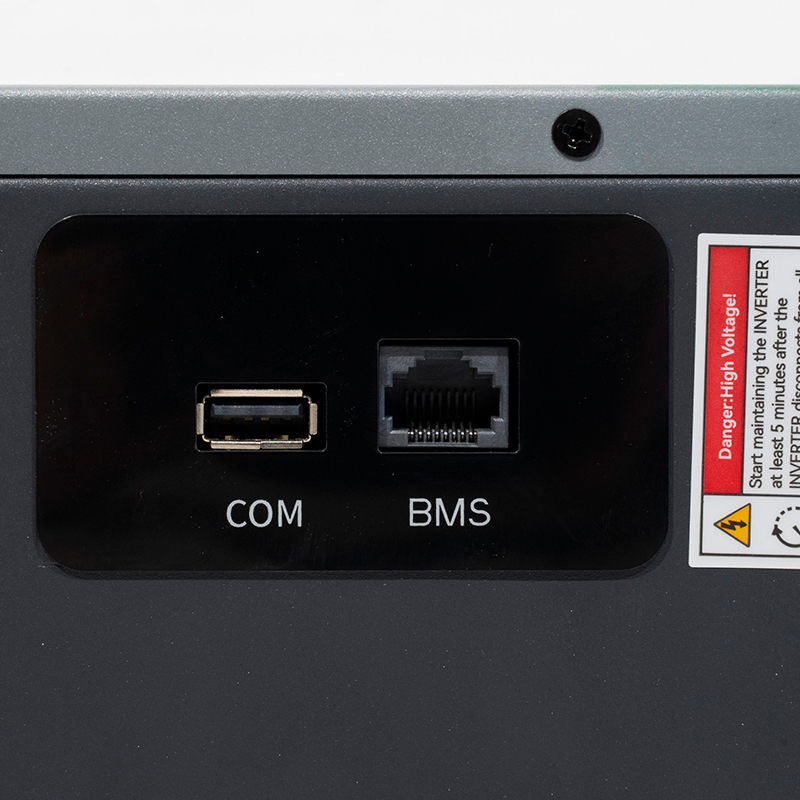

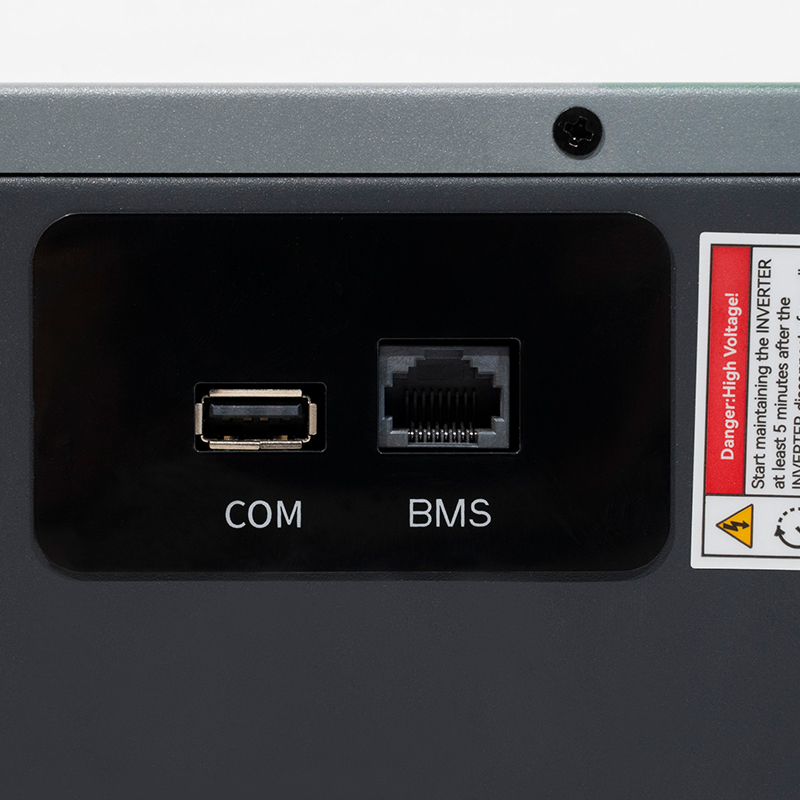

| Interface | RS232 / RS485 (optional) / CAN (optional) |
| Monitoring | Wifi (optional) |
| General Data | |
| Ingress Protection | IP21 |
| Operating Temperature | -10 ℃-60 ℃ |
| Relative Humidity | 5% - 95% (Non-condensing) |
| Storage Temperature | -15 ℃-60 ℃ |
| Net Weight (kg) | 3.5 |
| Dimensions (HWD) | 301*217*97mm |
| Max. Operating Altitude | 4000m (Derating above 1000m) |
| Activation | |
| AC Activation | YES |
| PV Activation | YES |
