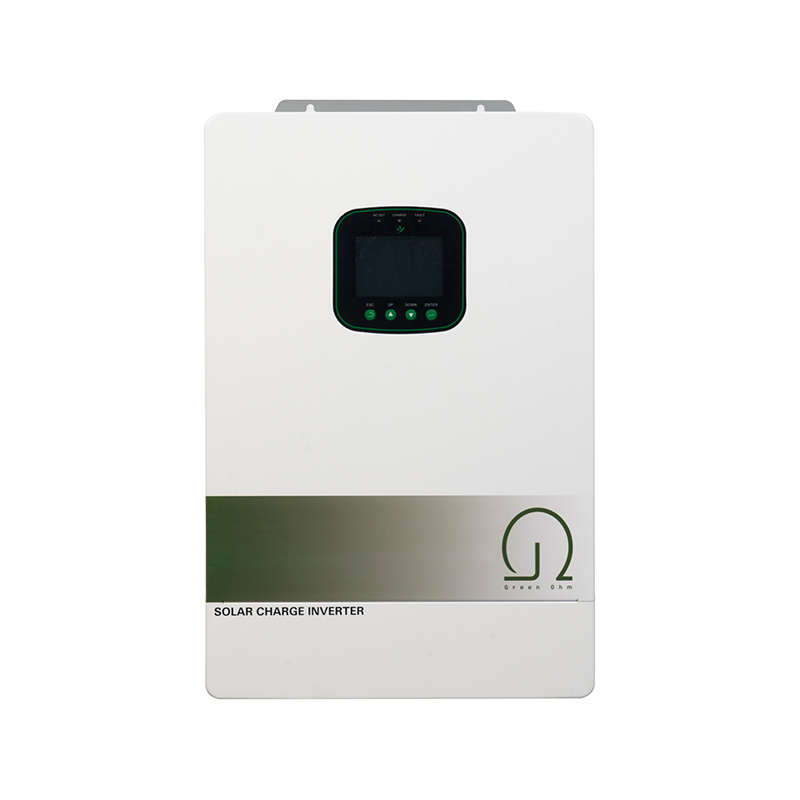

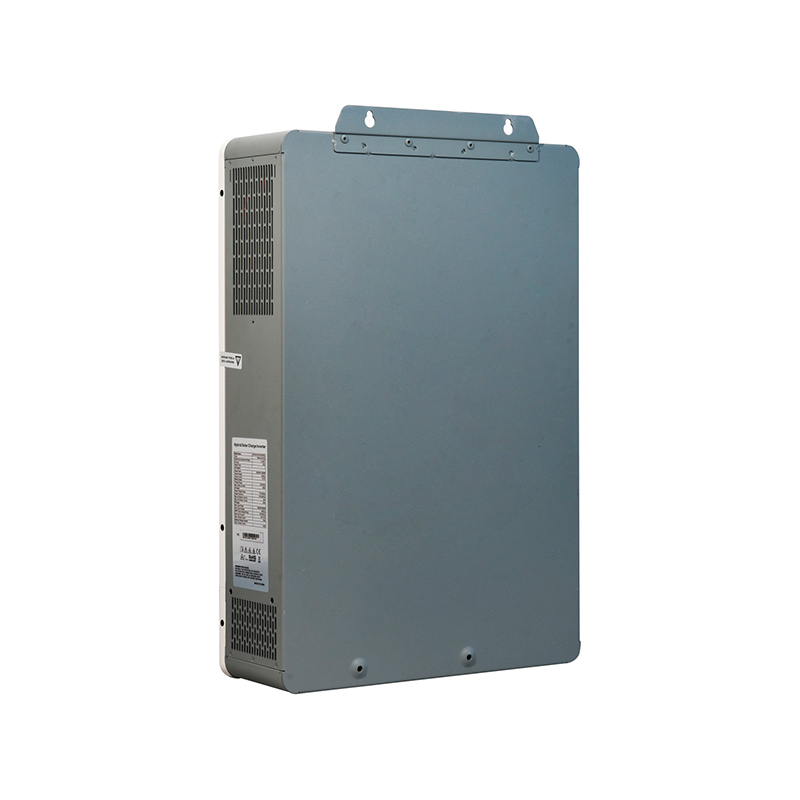

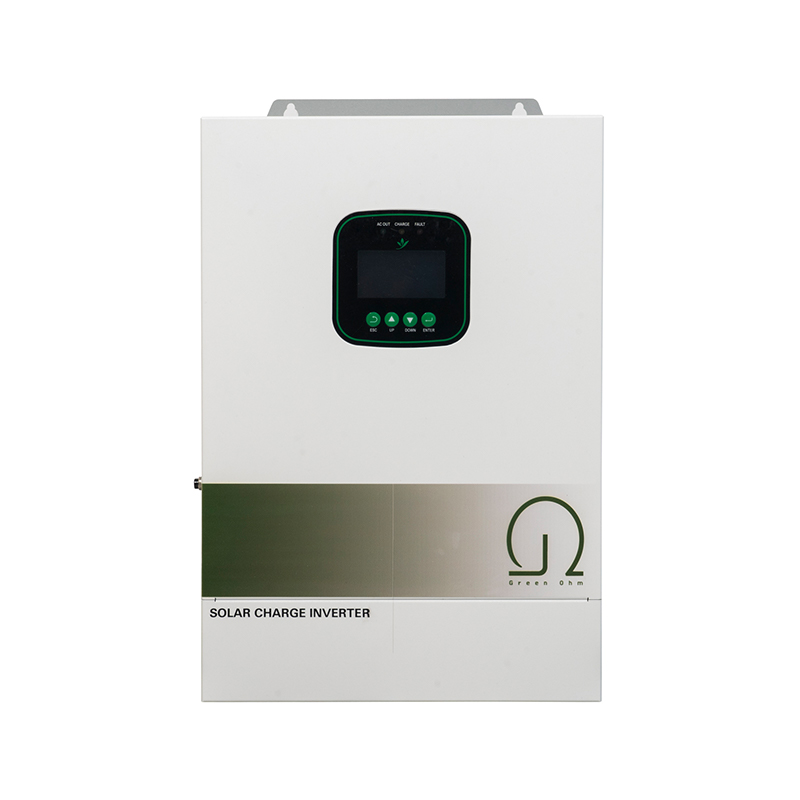

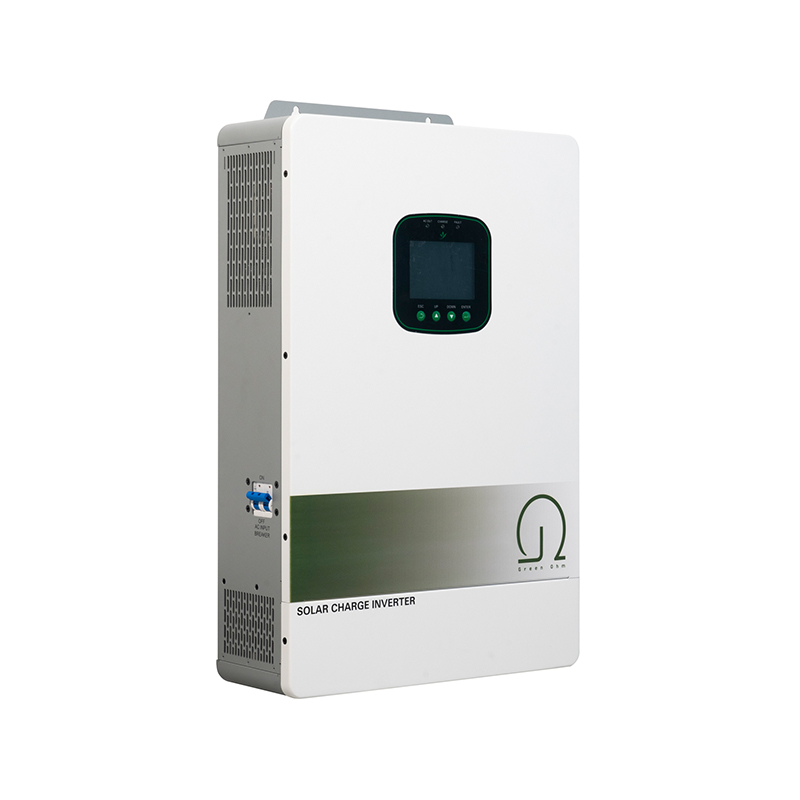

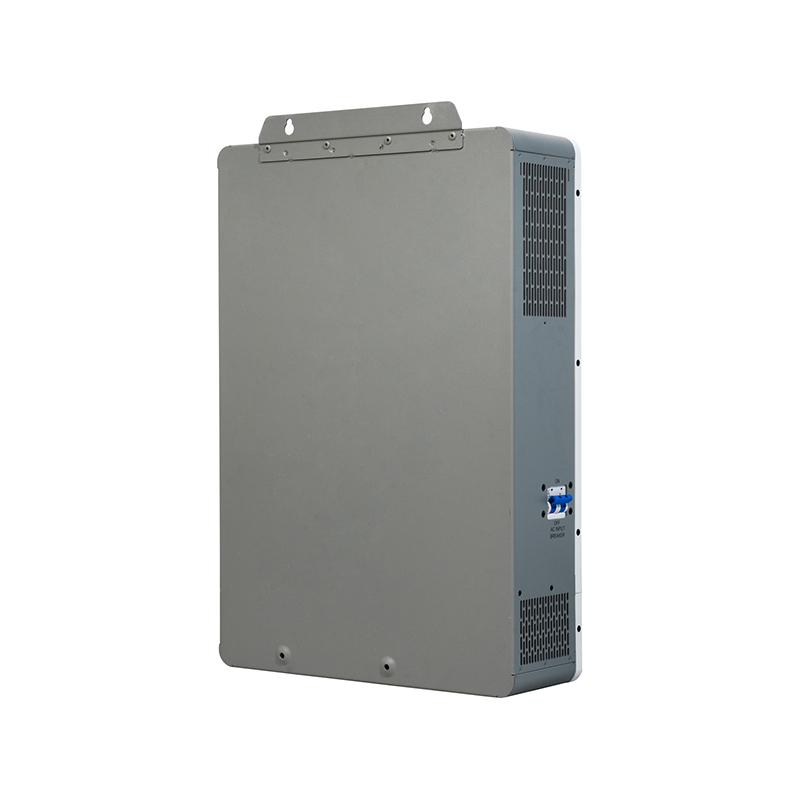

12kW High-power Hybrid Inverter

  model

SPI48120V150-500/SPI48120V150-500P

Parallel mode

Number of parallel machines

No. 1-6 units

Communication mode

Rated input voltage

230Vac±5%

Input voltage range

(170 Vac ~ 280 Vac ) ±2% ( UPS mode ) (90 Vac ~ 280 Vac ) ± 2% ( APL mode )

frequency

50Hz/60Hz (Automatic detection)

Frequency range

47±0.3Hz~55±0.3Hz (50Hz);

57±0.3Hz~65±0.3Hz (60Hz);

Overload/short circuit protection

breaker

efficiency

>93%

Conversion time (bypass and inverter)

10ms (typical)

AC reverse protection

yes

Maximum bypass phase overload current

60A

Inverter mode

Output voltage waveform

Pure sine wave

Rated output power (W)

12000VA/12000W

Power factor

1

Rated output voltage ( Vac )

230Vac

Output voltage error

±5%

Output frequency range  ( Hz )

50Hz±0.3Hz/60Hz±0.3Hz

Maximum efficiency

>94%

Overload protection

Peak power

(102% < Load < 125%) ±10%:  Report an error and shut down ;

(125% < Load < 150%) ± 10%: Report an error and shut down the output after 10 seconds ;

Load > 150% ± 10%: Report an error and shut down the output after 5 seconds;

24000VA

Load motor performance

8HP

Output short circuit protection

200 ms protection

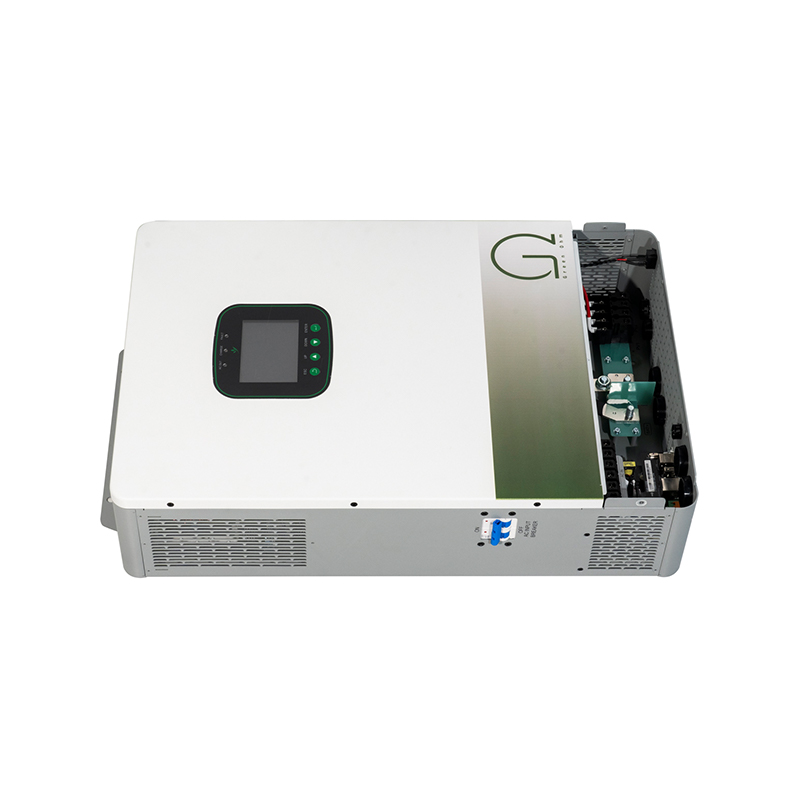

Bypass circuit breaker specifications

63A

Rated battery input voltage

51.2V (Minimum startup voltage 44V)

Battery voltage range

40.0 Vdc  ~ 60 Vdc ±0.6 Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... can be set on the LCD screen)

Power saving mode self-consumption

AC charging

Enter power saving mode when the load is ≤50W.

Battery Type

lead-acid or lithium batteries

Maximum charging current (configurable)

150A

Charging current error

±5Adc

Charging voltage range

40 –60Vdc

Short circuit protection

breaker

Circuit breaker specifications

63A

Photovoltaic charging

MPPT group number

2

Maximum photovoltaic open circuit voltage

500Vdc

Photovoltaic operating voltage range

120Vdc~500Vdc

MPPT voltage range

90Vdc~450Vdc

Battery voltage range

40-60Vdc

Maximum photovoltaic input power

9000W+9000W

Maximum photovoltaic input current

27A+27A

Solar charging current range (adjustable)

0-150A

Charging short circuit protection

Fuse

Wiring protection

Reverse connection protection

Maximum mixed charging current ( PV + AC )

Maximum hybrid charging current (configurable)

Certification Specifications

0-150A

Specifications Certification

EMC Certification Level

CE(IEC62109-1,2)，

EN61000, C2

Operating temperature range

-10°C to 55°C (reduction if >45°C )

Storage temperature range

-25°C ~60°C

Humidity range

5% to  95% (coating protection)

noise

≤60dB

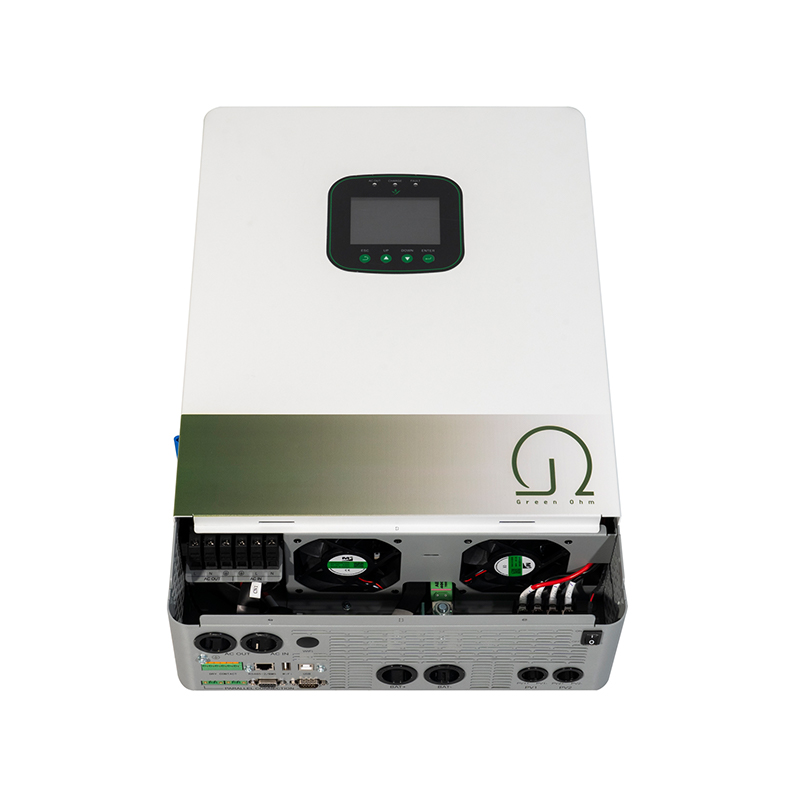

Heat dissipation

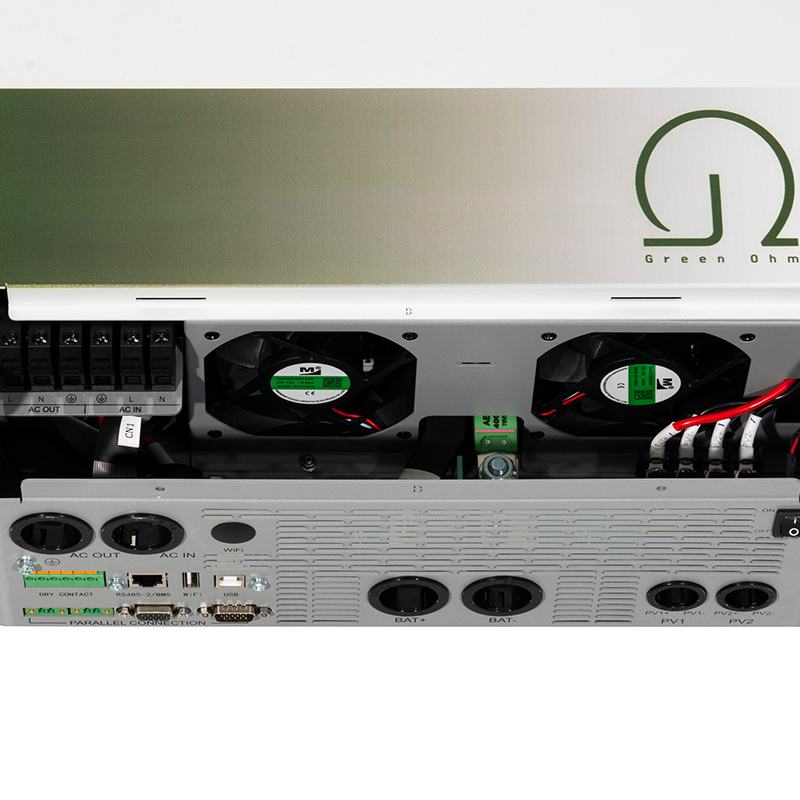

Forced air cooling, adjustable fan speed

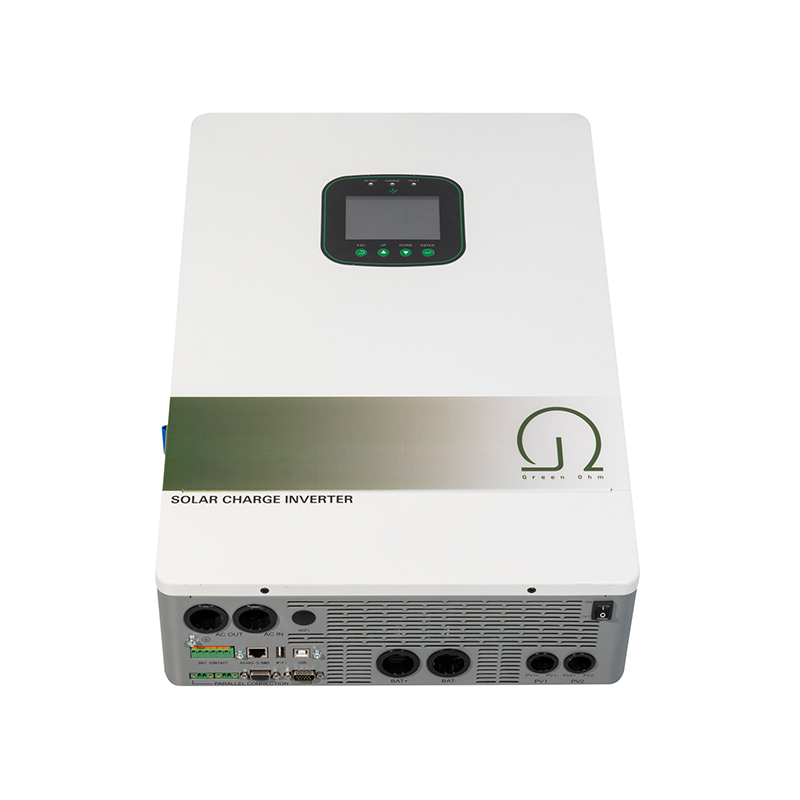

Communication interface

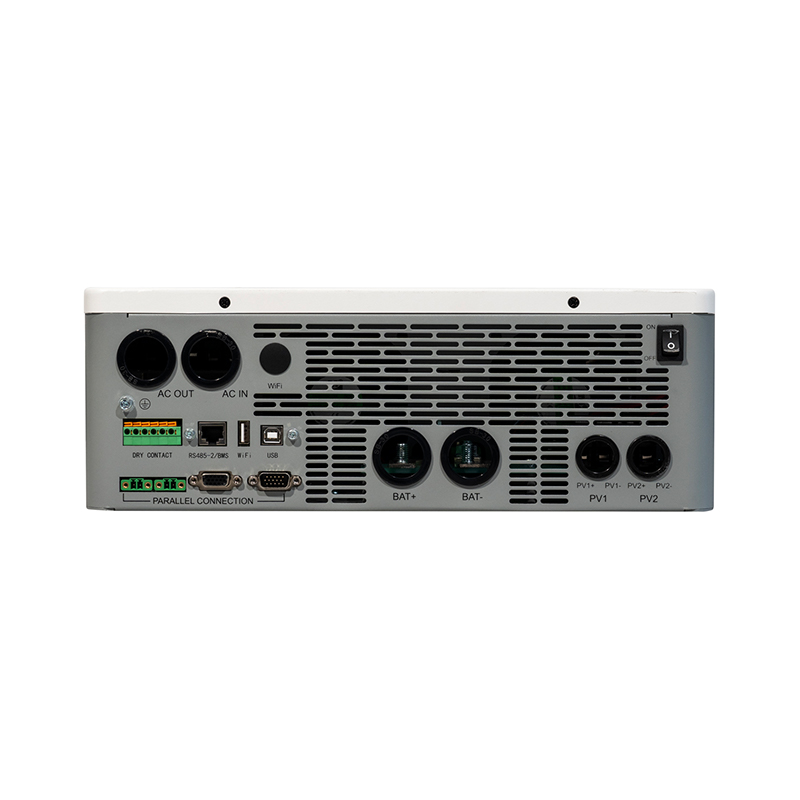

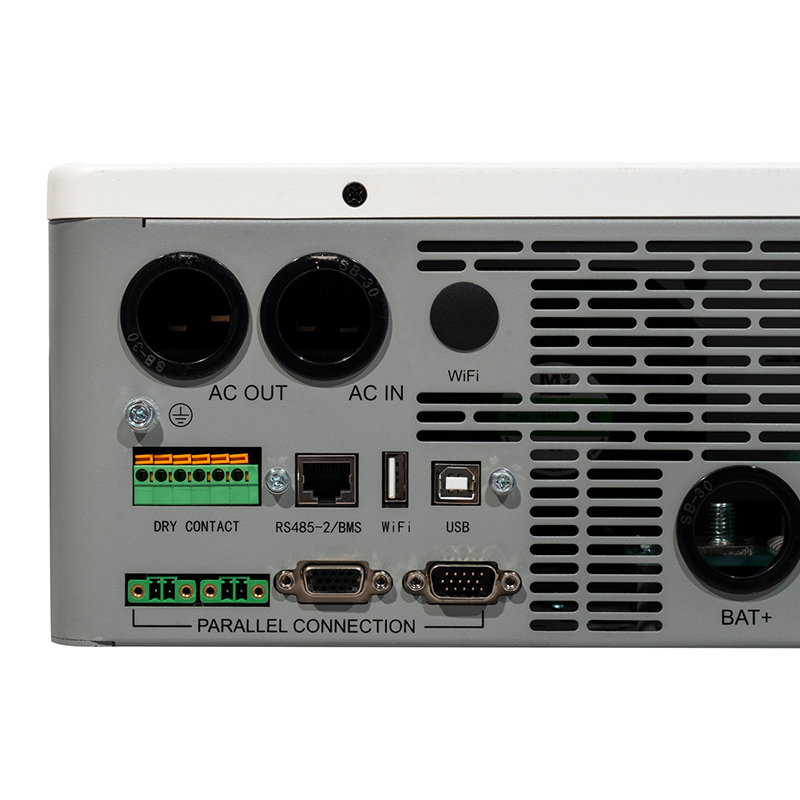

USB / RS 485 (/ WiFi / GPRS ) / Dry-connection control

Product dimensions/Packaging dimensions (Length * Width * Depth)

540x350x120mm

Product net weight/package weight ( kg )

19.5
