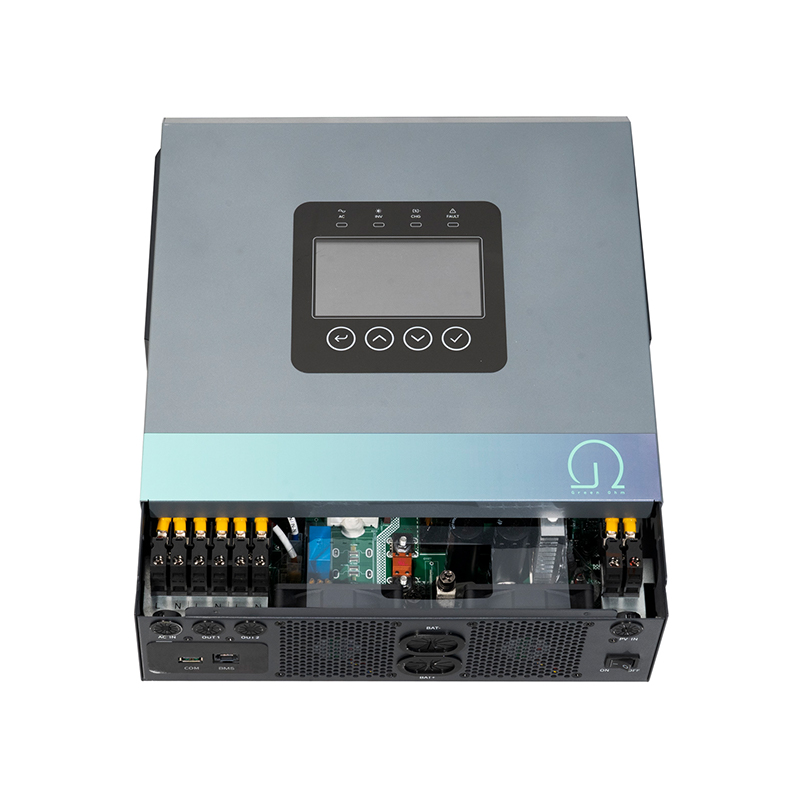

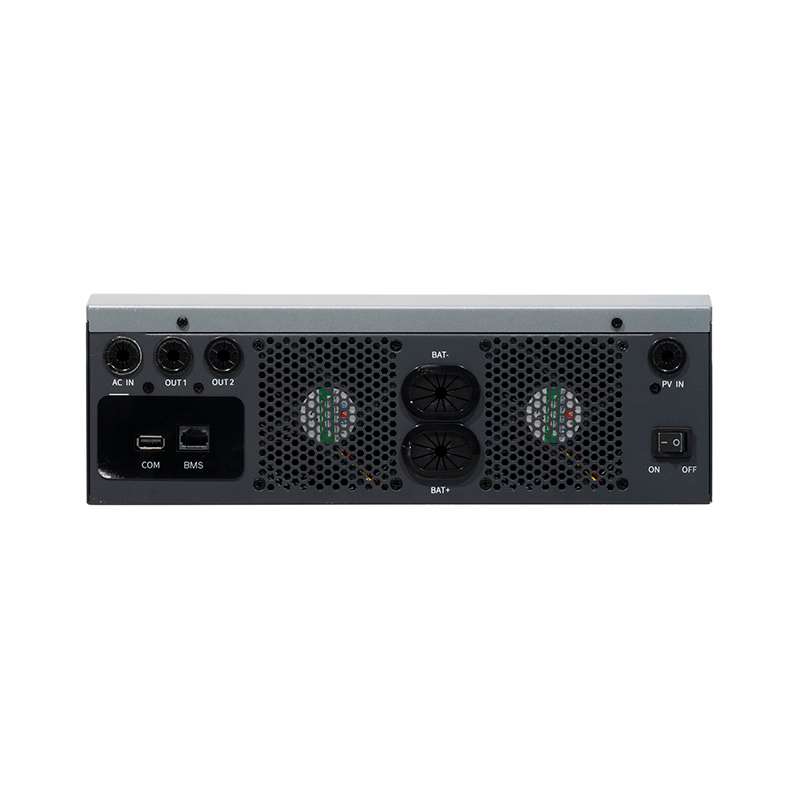

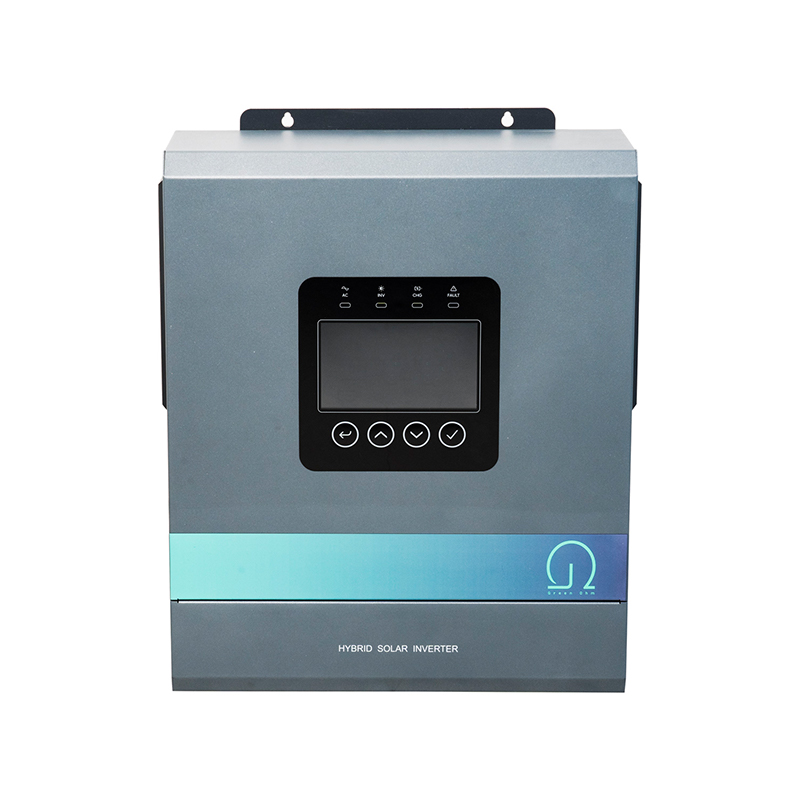

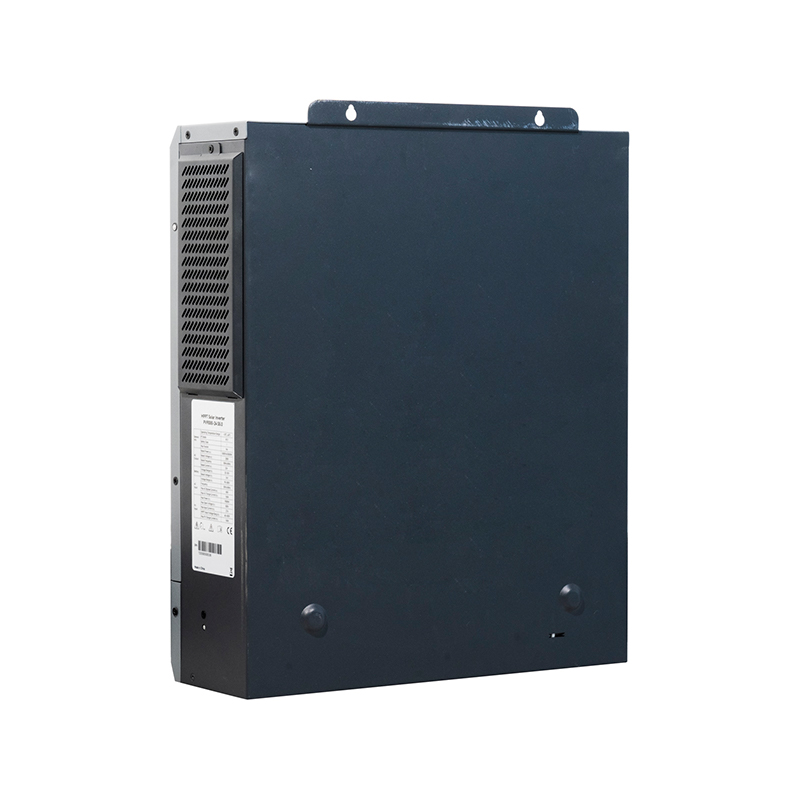

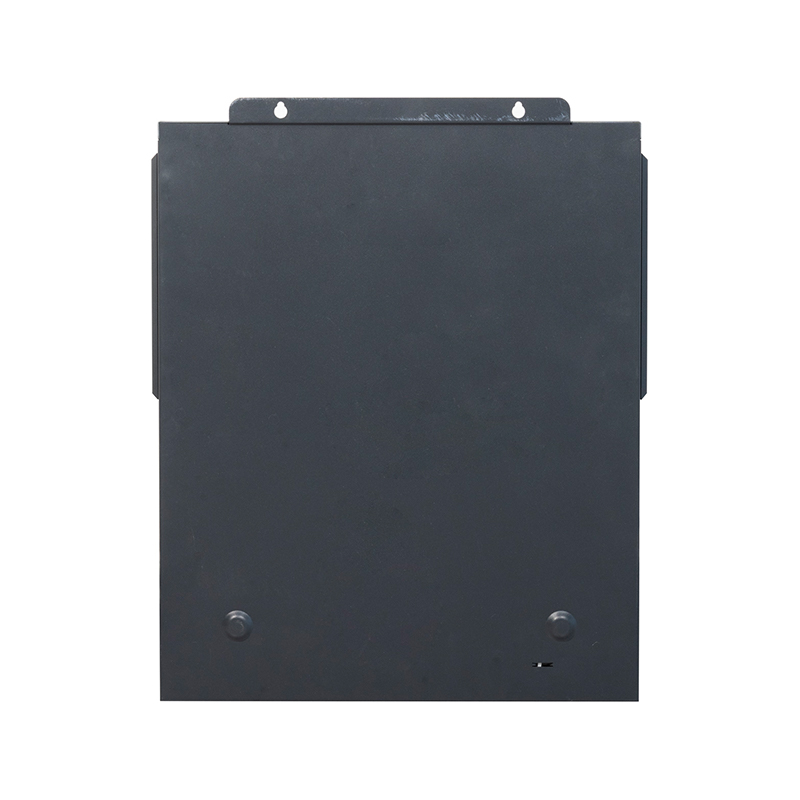

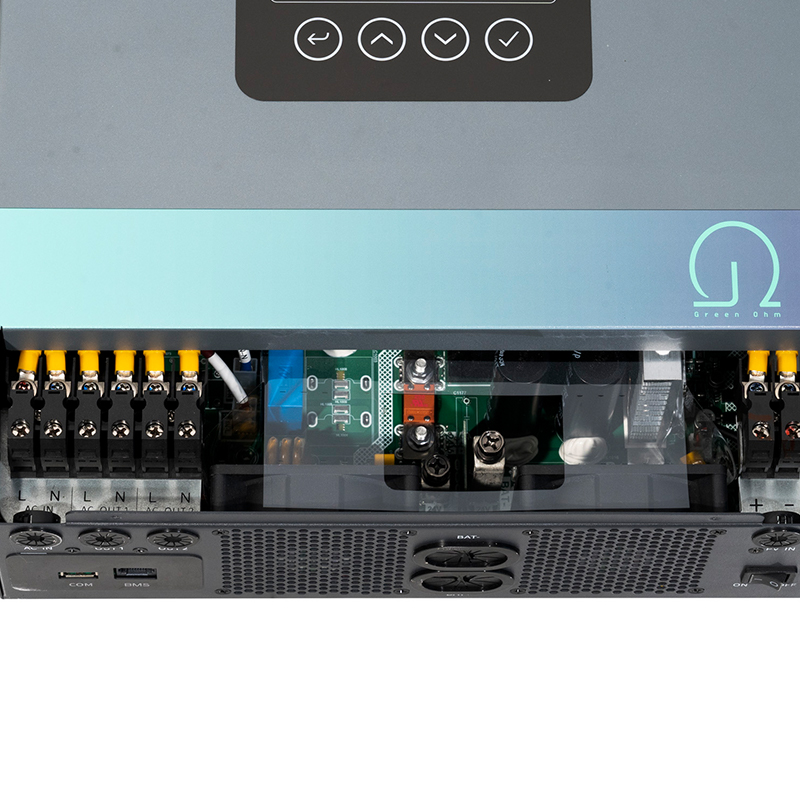

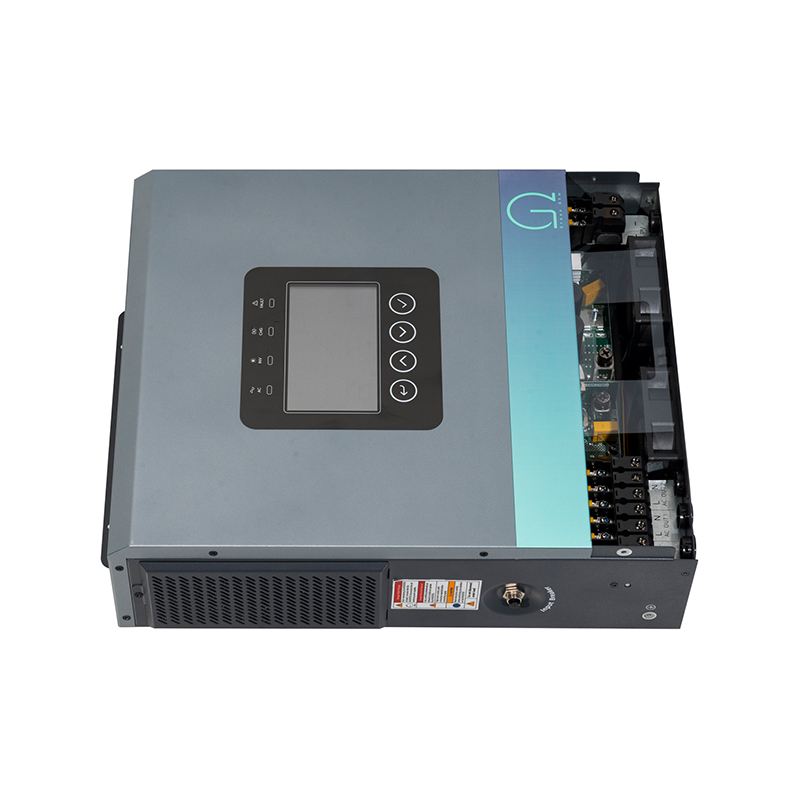

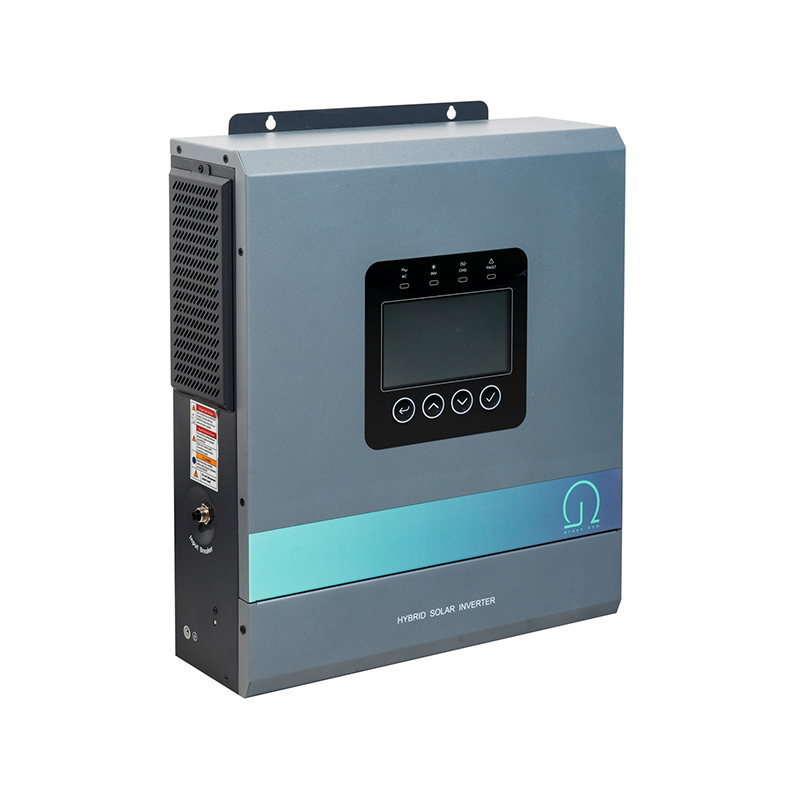

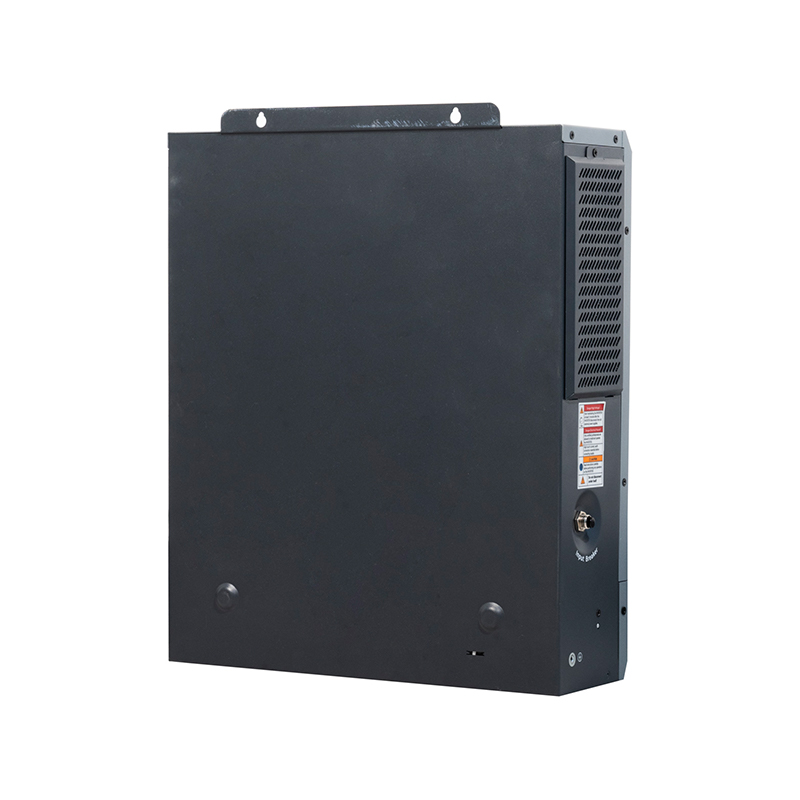

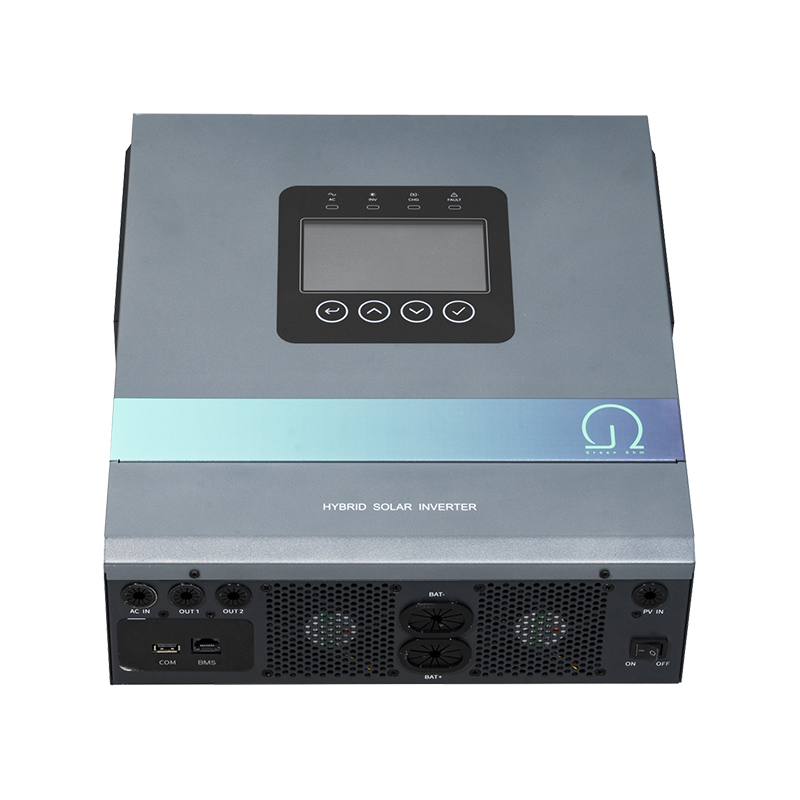

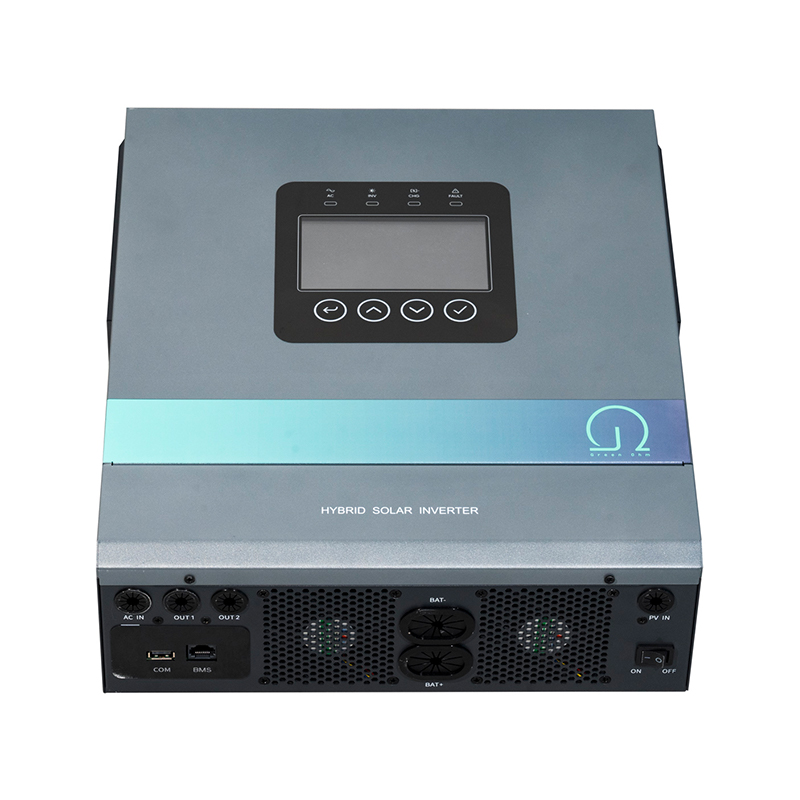

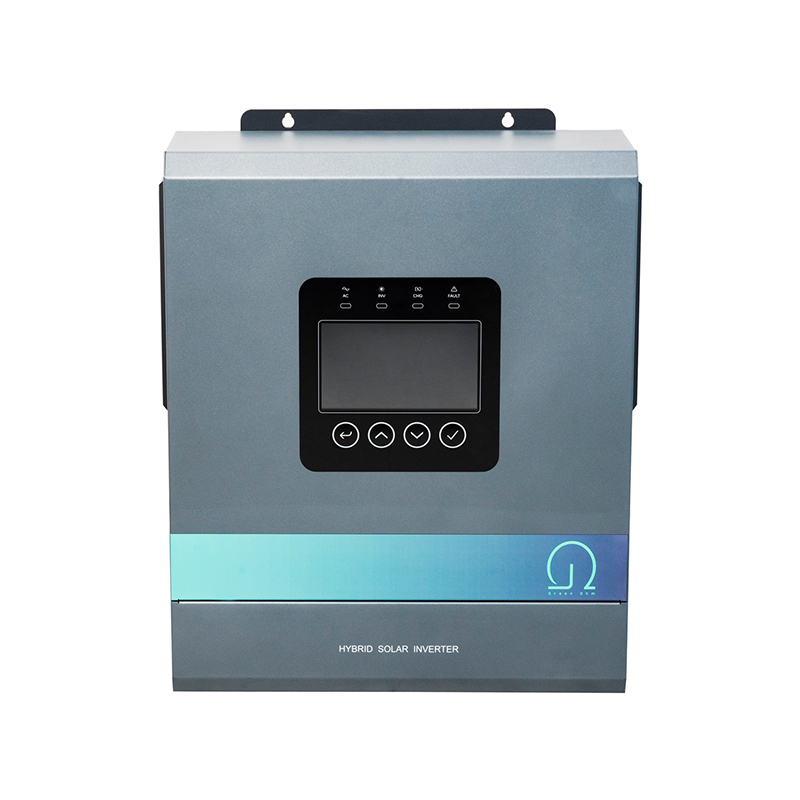

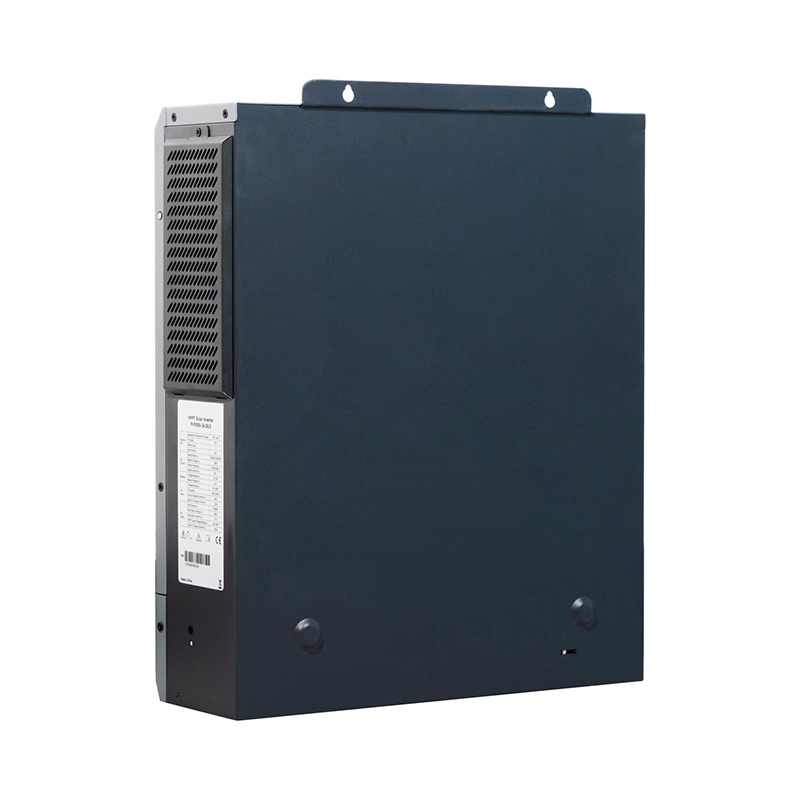

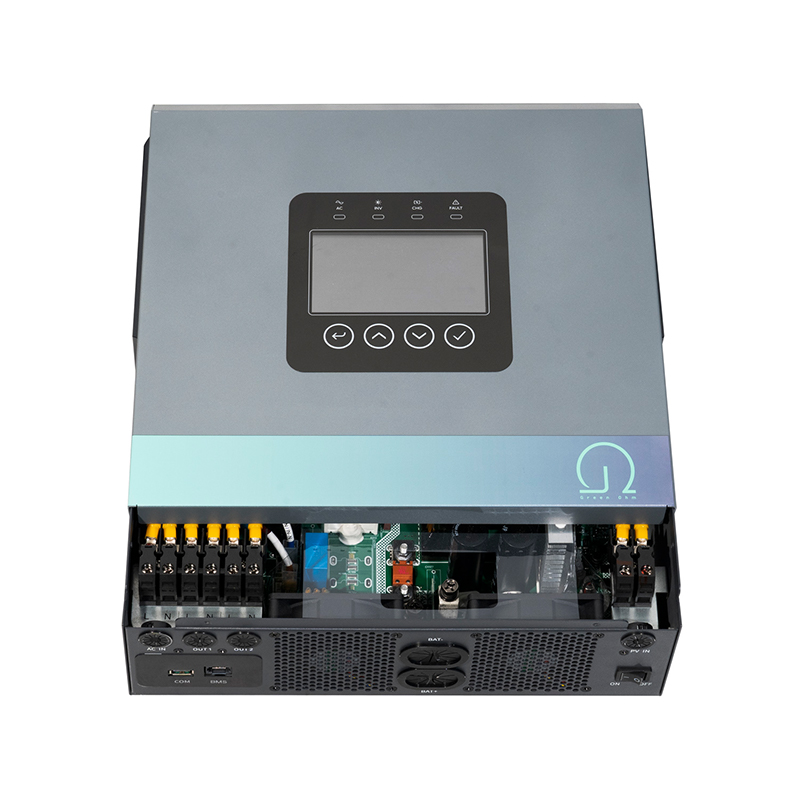

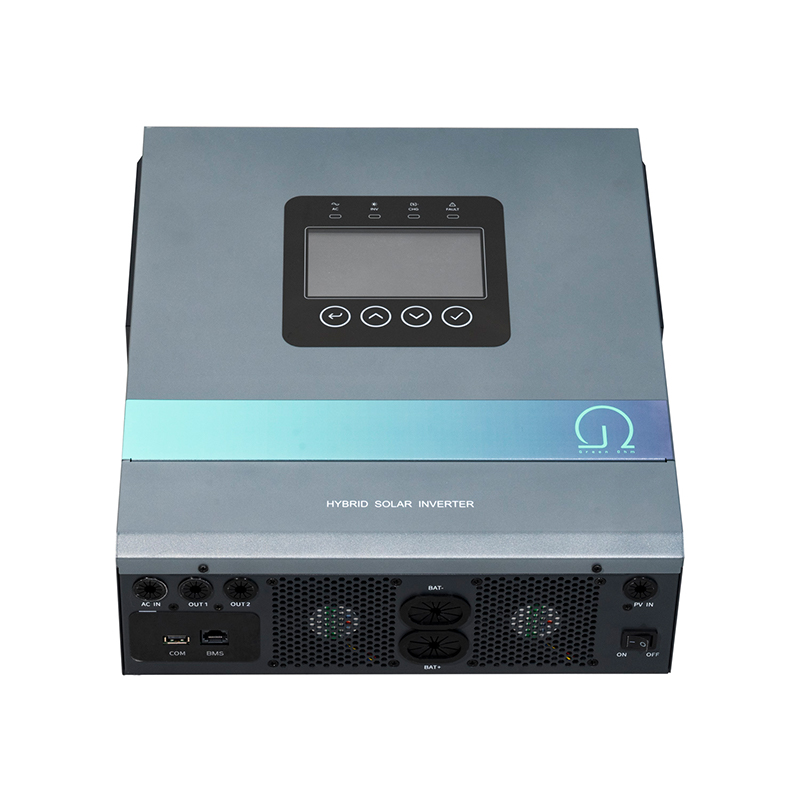

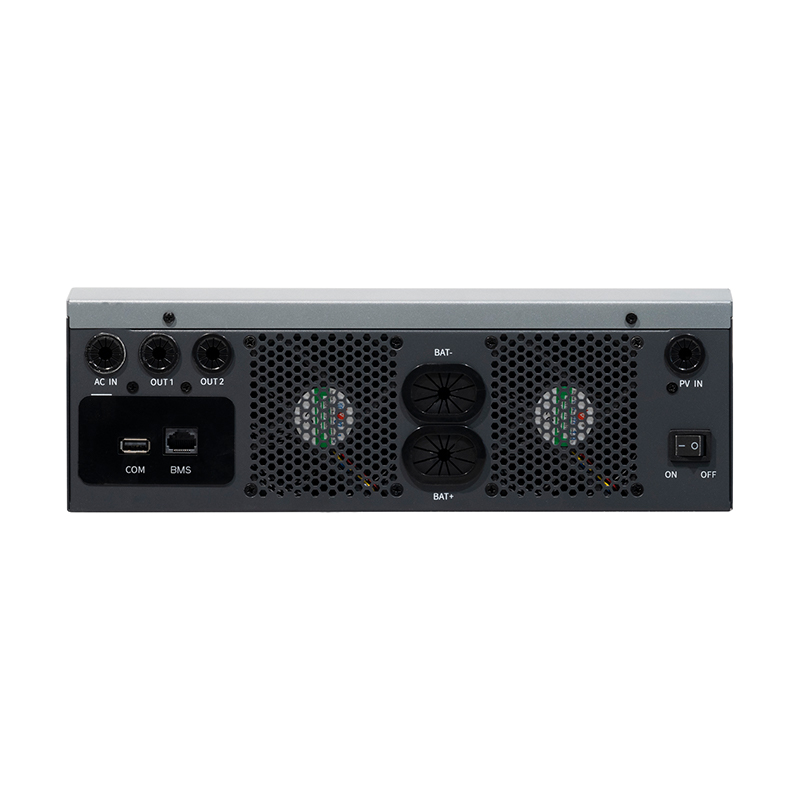

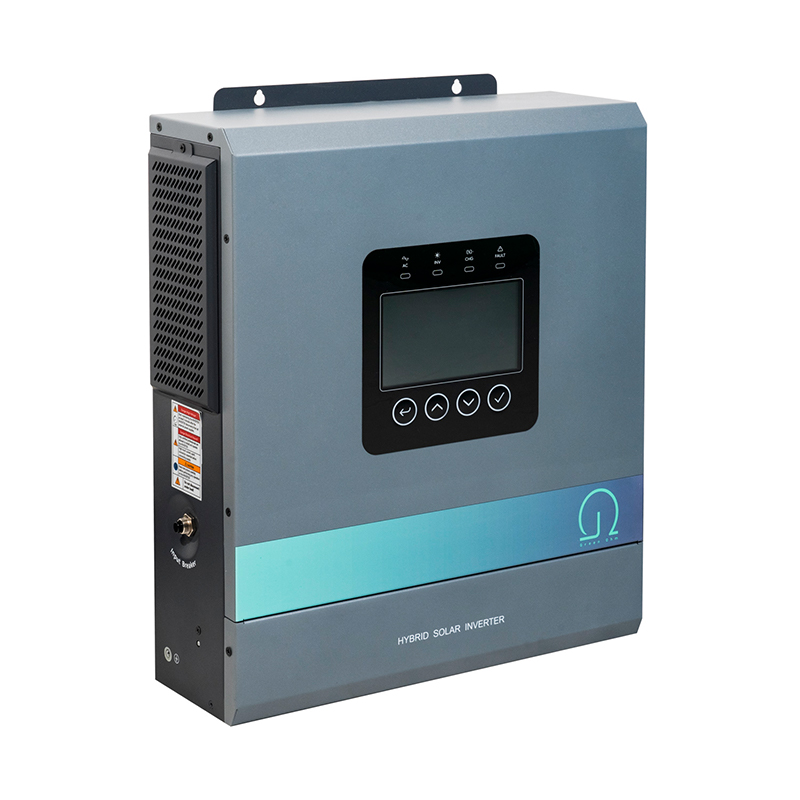

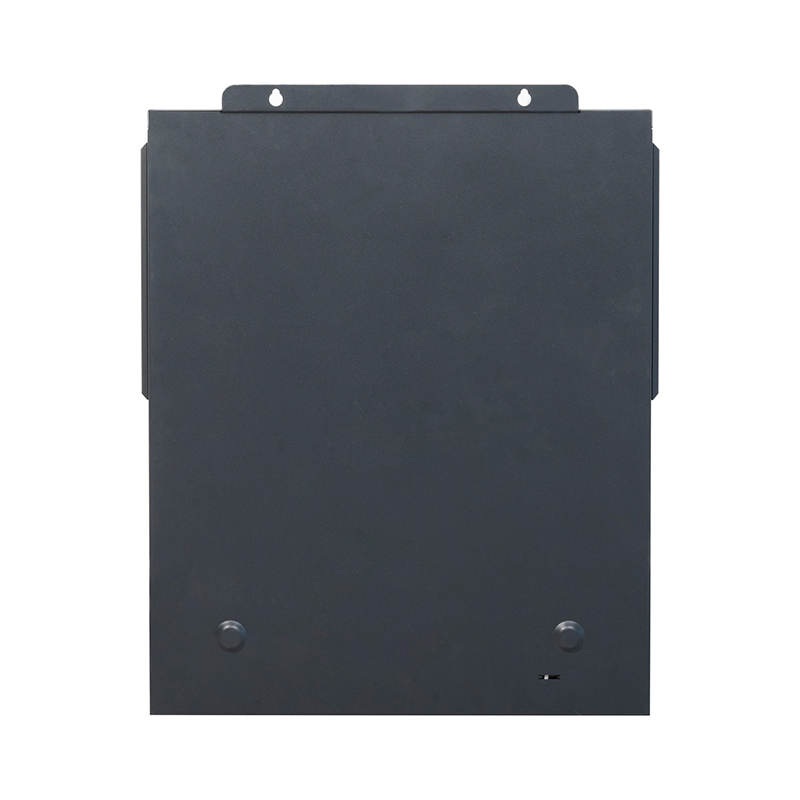

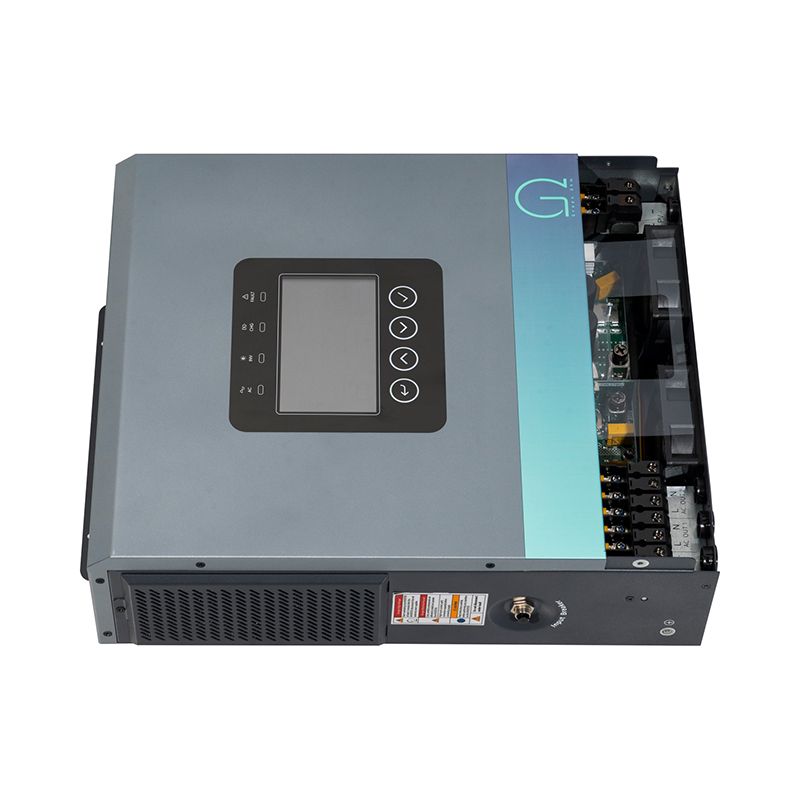

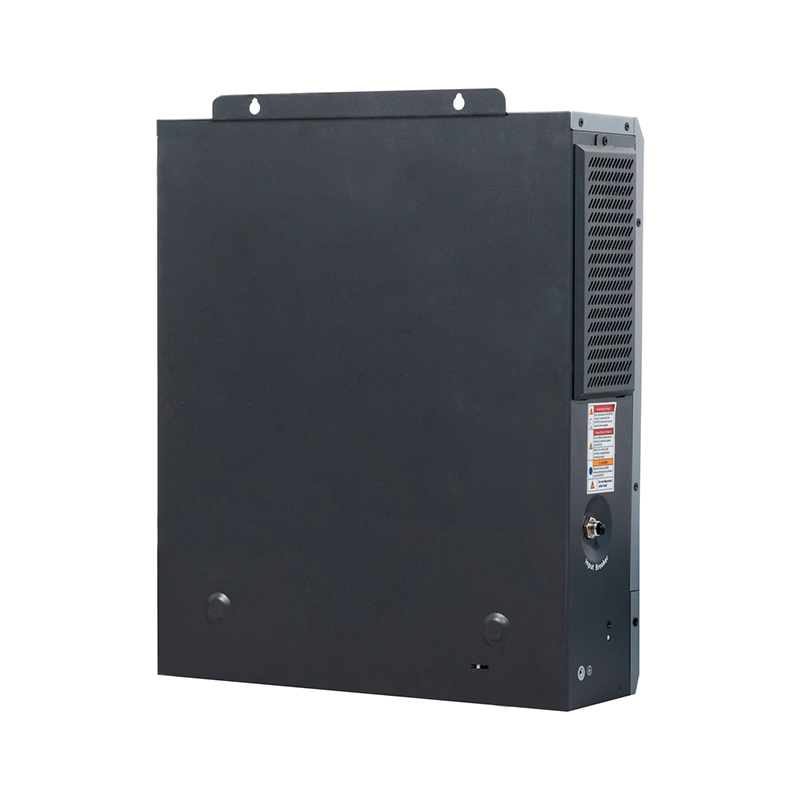

3.6kW off-grid inverter, suitable for homes, offices, and small shops. Equipped with dual MPPT (Maximum Power Point Tracking) technology to improve the power generation efficiency of the solar system, ensuring more energy can be harvested under varying sunlight conditions. Supports battery-less direct supply mode (e.g., daytime solar direct supply to AC loads). Compared with the basic model, it has higher power and supports more complex power topologies.
|
Model |
PV5000-24 S3.6D |
|
AC Input |
|
|
Rated Input Voltage (VAC) |
208 / 220 / 230 / 240; L + N + PE |
|
Voltage Range (VAC) |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
Frequency (Hz) |
50 / 60 (Auto Adaptive) |
|
AC Output |
|
|
Rated Capacity (kW) |
3.6 |
|
Surge Power (kVA) |
7.2 |
|
Voltage (VAC) |
208 / 220 / 230 / 240 |
|
Power Factor (PF) |
1 |
|
Frequency |
50/60Hz±0.1% |
|
Switch Time (ms) |
10 (APP/UPS mode) / 20 (GEN mode) |
|
Wave Form |
Pure Sine Wave |
|
Overload Capacity (Battery Mode) |
60s@102%-110% load; 10s@110%-130% load; 3s@130%-150% load; 0.2s@>150% load |
|
Max. Efficiency (Battery Mode) |
92.7%@24VDC |
|
Parallel Quantity |
NA |
|
Charger (PV / AC) |
|
|
Solar Charger Type |
MPPT |
|
Max PV input Current / Input Power |
18A / 5000W |
|
MPPT Range@Operating Voltage (VDC) |
40-450 |
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
Max PV Charge Current (A) |
100 |
|
Max AC Charge Current (A) |
100 |
|
Max. Charge Current (PV + AC) (A) |
100 |
|
BatteŊ |
|
|
Rated Voltage (VDC) |
24 |
|
Floating Charge Voltage (VDC) |
27 |
|
Overcharge Protection (VDC) |
30.5 |
|
Battery Type |
Lithium and Lead-acid |
|
Interface |
|
|
HMI |
LCD |
|
Interface |
RS485 / CAN / RS232 |
|
Monitoring |
WiFi (built-in) |
|
General Data |
|
|
Ingress Protection |
IP21 |
|
Operating Temperature |
-10 ℃ - 60 ℃ |
|
Relative Humidity |
5% ~ 95% (Non-condensing) |
|
Storage Temperature |
-15 ℃ - 60 ℃ |
|
Net Weight (kg) |
6.2 |
|
Dimensions (H*W*D) |
420*284*94mm |
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
