6.2kW Hybrid Inverter

model

SPI4862V100-500/SPI4862V100-500P

Parallel mode

Number of parallel machines

No. 1-6 units

Communication mode

Rated input voltage

220/230Vac

Input voltage range

(170Vac~280Vac)±2% (UPS mode) (90Vac~280Vac)±2% (APL mode)

frequency

50Hz/60Hz (Automatic detection)

Frequency range

47±0.3Hz~55±0.3Hz (50Hz);

57±0.3Hz~65±0.3Hz (60Hz);

Overload/short circuit protection

breaker

efficiency

>93%

Conversion time (bypass and inverter)

10ms (typical)

AC reverse protection

yes

Maximum bypass phase overload current

40A

Inverter mode

Output voltage waveform

Pure sine wave

Rated output power (W)

6200VA/6200W

Power factor

1

Rated output voltage (Vac)

230Vac

Output voltage error

±5%

Output frequency range (Hz)

50Hz±0.3Hz/60Hz±0.3Hz

Maximum efficiency

>94%

Overload protection Peak power

(102% < Load < 125%) ±10%: Report an error and shut down the output after 5 minutes;

(125% < Load < 150%) ± 10%: Report an error and shut down the output after 10 seconds;

Load > 150% ± 10%: Report an error and shut down the output after 5 seconds;

12000VA

Load motor performance

4HP

Output short circuit protection

200ms protection

Bypass circuit breaker specifications

40A

Rated battery input voltage

51.2V (Minimum startup voltage 44V)

Battery voltage range

40.0Vdc ~ 60Vdc±0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery... can be set on the LCD screen)

Power saving mode self-consumption

AC charging

Battery Type

lead-acid or lithium batteries

Maximum charging current (configurable)

80A

Charging current error

±5Adc

Charging voltage range

40 –60Vdc

Short circuit protection

breaker

Circuit breaker specifications

40A

Photovoltaic charging

MPPT group number

1

Maximum photovoltaic open circuit voltage

500Vdc

Photovoltaic operating voltage range

120Vdc~500Vdc

MPPT voltage range

90Vdc~450Vdc

Battery voltage range

40-60Vdc

Maximum photovoltaic input power

6000W

Maximum photovoltaic input current

27A

Solar charging current range (adjustable)

0-100A

Charging short circuit protection

Fuse

Wiring protection

Reverse connection protection

Maximum hybrid charging current (PV+AC)

Maximum hybrid charging current (configurable)

Certification Specifications

0-100A

Specifications Certification

EMC Certification Level

CE(IEC62109-1,2)，

EN61000, C2

Operating temperature range

-10°C to 55°C (reduction if >45°C)

Storage temperature range

-25°C ~60°C

Humidity range

5% to 95% (coating protection)

noise

≤60dB

Heat dissipation

Forced air cooling, adjustable fan speed

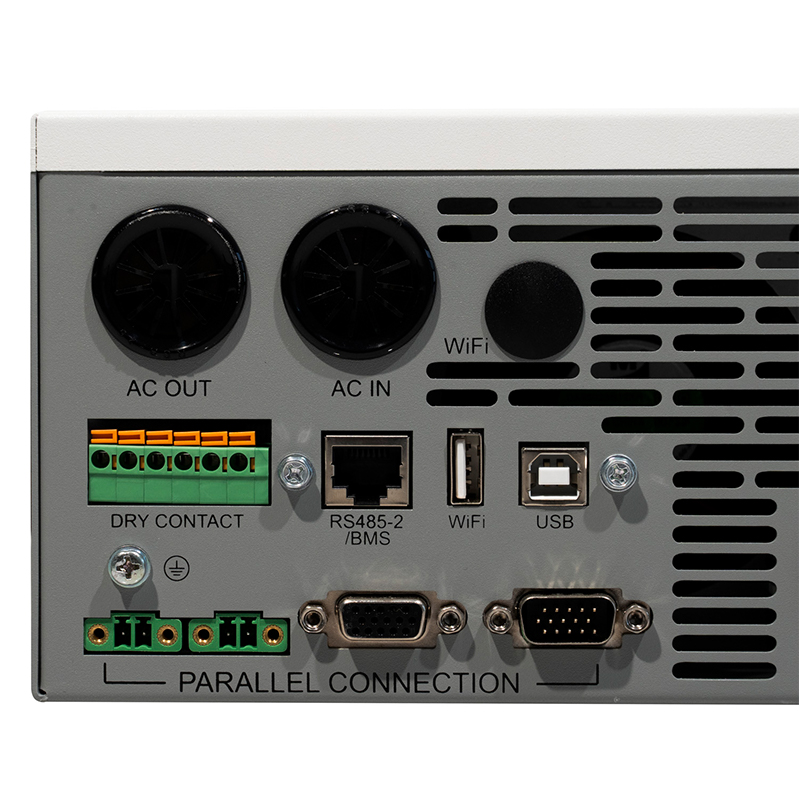

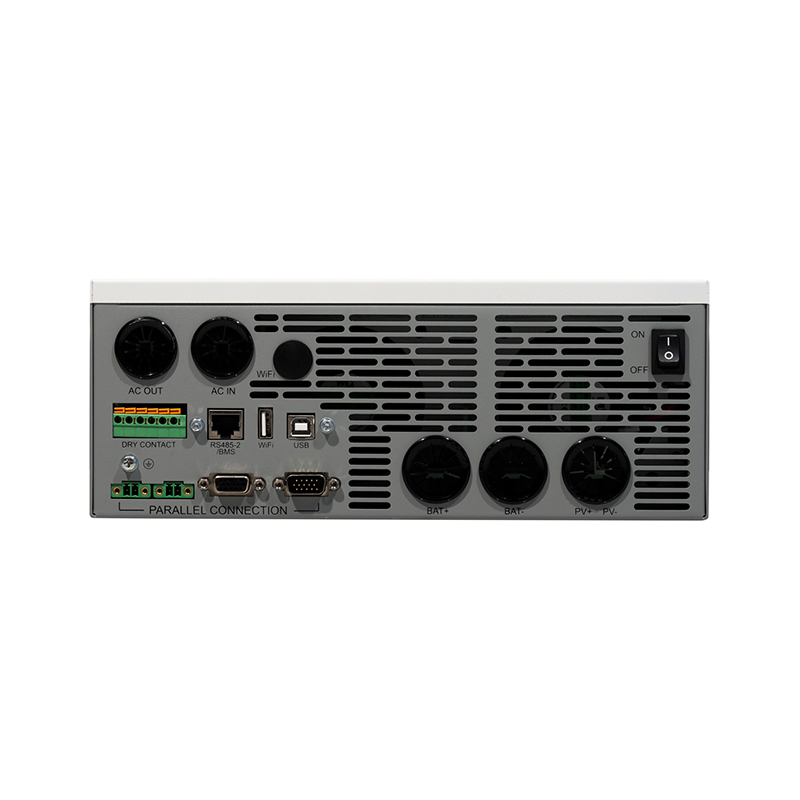

Communication interface

USB/RS485 (/WiFi/GPRS)/Dry contact control

Product dimensions/Packaging dimensions (Length * Width * Depth)

428x280x110mm

Product net weight/package weight (kg)

8.2
