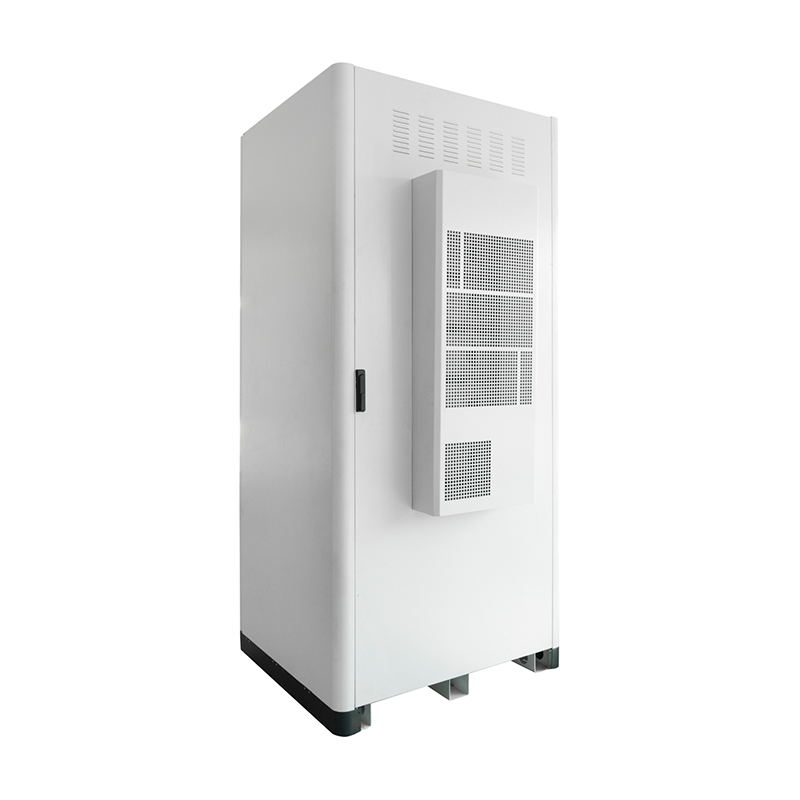

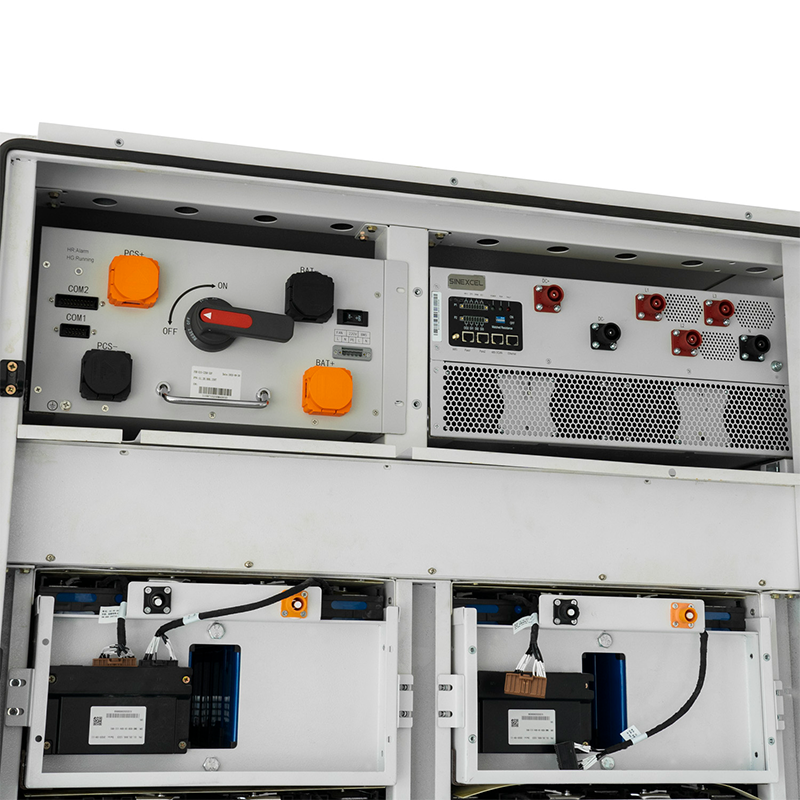

Upgraded capacity model with higher energy density, ideal for commercial and industrial scenarios with greater load fluctuation or higher energy demand. Featuring a 257 kWh storage capacity, this version can support increased power requirements while ensuring stable energy delivery during peak load periods. The system integrates advanced control algorithms that can accurately forecast usage patterns and optimize energy consumption in real time, enhancing overall system efficiency and energy cost effectiveness. These intelligent energy management features enable better load shaping, peak shaving, and strategic use of stored energy to maximize economic benefits across diverse industrial and commercial settings.
| Model | GCab-W-200 | GCab-W-250 | GCab-W-800 |
| Basic Electrical Parameters | |||
| Rated Capacity | 225kwh | 257kwh | 836kwh |
| Rated Charge/ Discharge Power | 1100kw/110kw | 125kw/125kw | 418kw/418kw |
| Voltage Range ( VDC) | 710-1500 | 810-1500 | 1123-1500 |
| Depth Of Discharge (DoD) | 95% | ||
| Round-trip Efficiency | ≥ 91% | ||
| Mechanical & Structural Parameters | |||
| Dimensions(WxDxH) | 1200X1100X2700mm | 1200X1100X2700mm | 1550X2430X2900mm |
| Weight | 2500KG | 2650KG | 10500KG |
| Protecting Method | IP54+IK10 | ||
| Cooling Method | Forced air cooling | ||
| Battery System Characteristics | |||
| Battery Type | LFP (Lithium Iron Phosphate) | ||
| Cycle Life | 8000 cycles | ||
| Service Life | 15 years | ||
| Operating Temperature Range | Charging : 0~500C / Discharging : -20~500C | ||
| Power Conversation System | |||
| Self-discharge Rate | ≤ 3% per month | ||
| PCS Topology | Bidirectional energy storage converter + MPPT | ||
| Grid-tied Characteristics | Voltage ± 10% ,Frequency ± 2.5% | ||
| Off-grid Switching Time | ≤ 10 ms | ||
| THDi | ≤ 3% | ||
| Intelligent Management System | |||
| EMS Functions | Peak-valley arbitrage control, demand management, VPP interface, SOC balancing algorithm | ||
| Communication Protocols | Standard Modbus TCP/RTU, ICE 61850, CAN2.0B | ||
