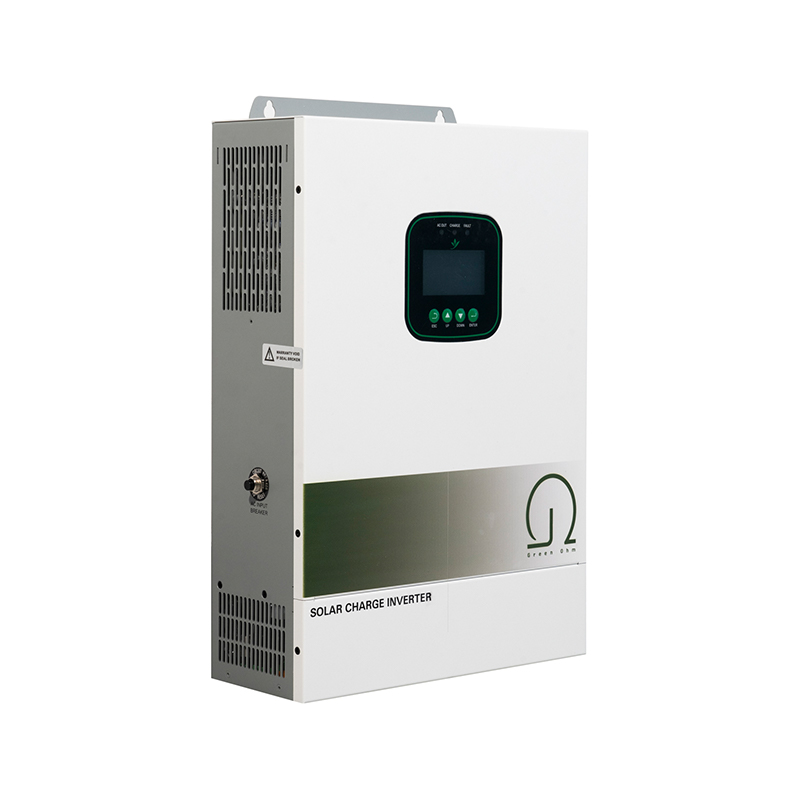

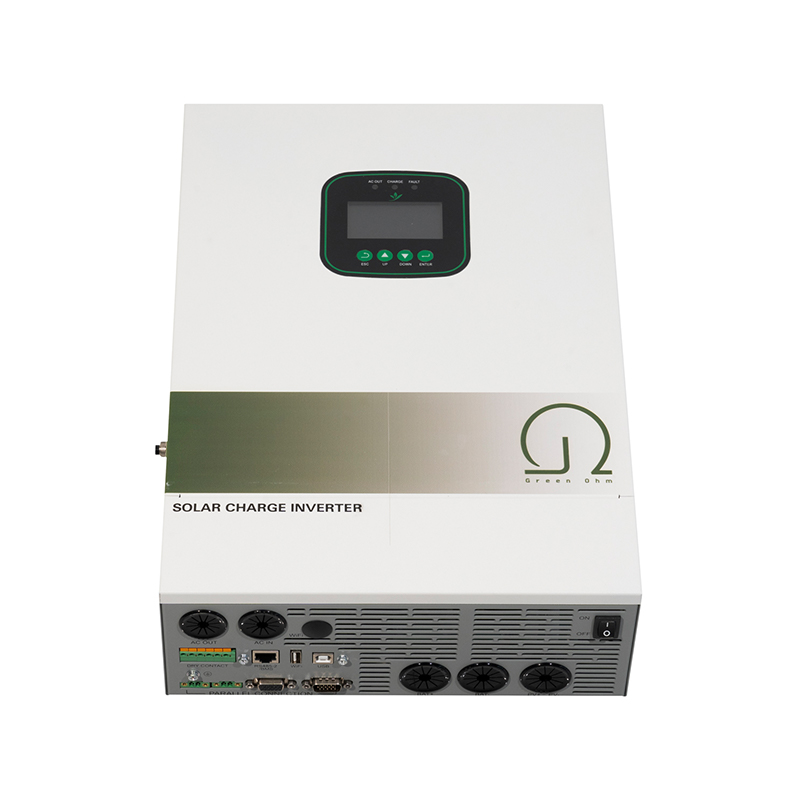

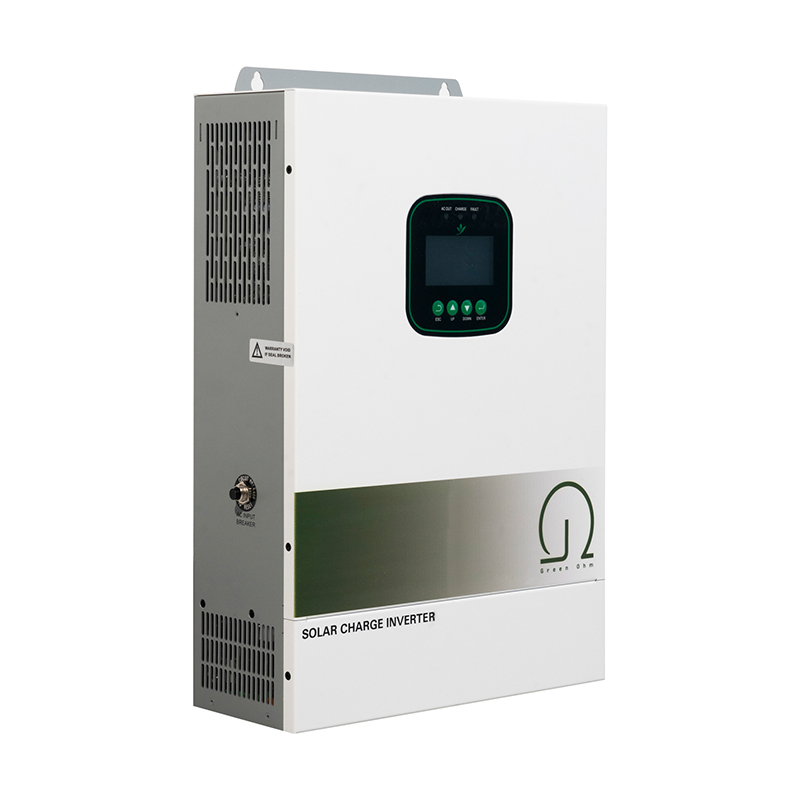

6kW high-performance off-grid inverter, supporting three-phase load output and featuring highly reliable protection and monitoring functions. It is suitable for remote area power supply, off-grid homes, agricultural systems, and powering high-power equipment. It integrates robust MPPT energy management, efficient inversion, and flexible system integration capabilities.
| Model | LD12PV12O | LD36PV24O | LD62PV48O | LD120PV48O |
| AC Input | ||||
| Rated Input Voltage (VAC) | 208/220/230/240 ; L + N + PE | |||
| Voltage Range (VAC) | 90~280 ±3 (normal mode) ; 170~ 280±3 (UPS Mode ) | |||
| Frequency (Hz) | 50/ 60 ( Auto Adaptive ) | |||
| AC Output | ||||
| Rated Capacity (KW) | 1.2 | 3.6 | 6.2 | 12 |
| Surge Power (KVA) | 2.4 | 7.2 | 12 | 24 |
| Voltage (VAC) | 208/220/230/240 | 220/230/240 | ||
| Power Factor (PF) | 1 | |||
| Frequency | 50/60 Hz±0.1% | |||
| Switch Time (ms) | 10 ( APP/UPS/GEN mode ) | |||
| Wave Form | Pure Sine Wave | |||
| Overload Capacity ( Battery Mode) | 60s@102%---120% load; 10s@120%-200% load | |||
| Max. Efficiency (Battery Mode) | 90% @12VDC | 92.7%@24VDC | 94%@48VDC | 94%@48VDC |
| Parallel Quantity | NA | |||
| Charge PV/AC | ||||
| Solar Charge Type | MPPT | Dual MPPTs | ||
| MAX PV Input Current /Power | 18A/800W | 18A / 5000W | 27A / 9000W | Using One MPPT: 27A/9KW |
| Using Two MPPTs: 22.5A/Per MPPT, 15kW/Total | ||||
| MPPT Range@Operating Voltage ( VDC) | 17-115 | 40-450 | 60-450 | 60-450 |
| MAX PV Open Circuit Voltage (VDC) | 115 | 500 | 500 | 500 |
| MAX PV Charge Current (A) | 50 | 100 | 120 | 160 |
| MAX AC Charge Current (A) | 50 | 100 | 120 | 160 |
| MAX Charge Current ( PV +AC ) (A) | 100 | 100 | 120 | 160 |
| Battery | ||||
| Normal Voltage (VDC) | 12 | 24 | 48 | 48 |
| Floating Charge Voltage (VDC) | 13.8 | 27 | 54 | 54 |
| Overcharge Protection (VDC) | 15 | 30.5 | 61 | 61 |
| Battery Type | Lead-acid /Lithium | |||
| Interface | ||||
| HMI | LCD | |||
| Interface | RS485 / CAN / RS232 | |||
| Monitoring | Wifi (optional) | WiFi (built-in) | ||
| General Date | ||||
| Ingress Protection | IP 21 | |||
| Operating Temperature | -10 ℃ - 60 ℃ | |||
| Relative Humidity | 5% - 95% (Non-condensing) | |||
| Storage Temperature | -15 ℃ - 60 ℃ | |||
| Net Weight (Kg) | 3.5 | 6.2 | 8.4 | 15 |
| Dimensions (H*W*D) | 301*217*97mm | 420*284*94mm | 410*336*110mm | 495*425*120mm |
| Max.Operating Altitude | 4000mm ( Derating above 1000m ) | |||
| Activation | ||||
| AC Activation | YES | |||
| PV Activation | YES | |||
