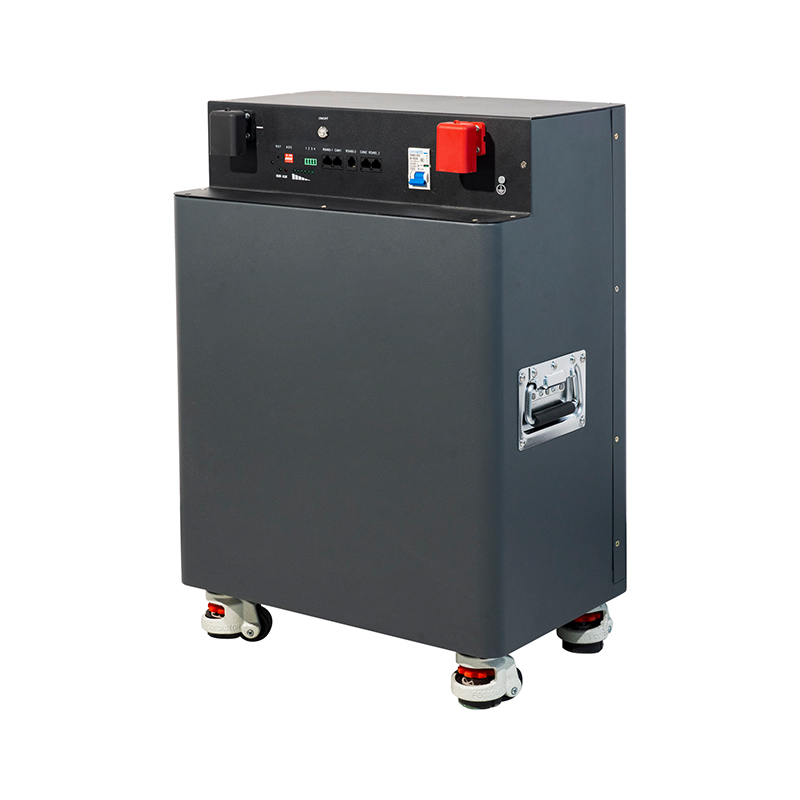

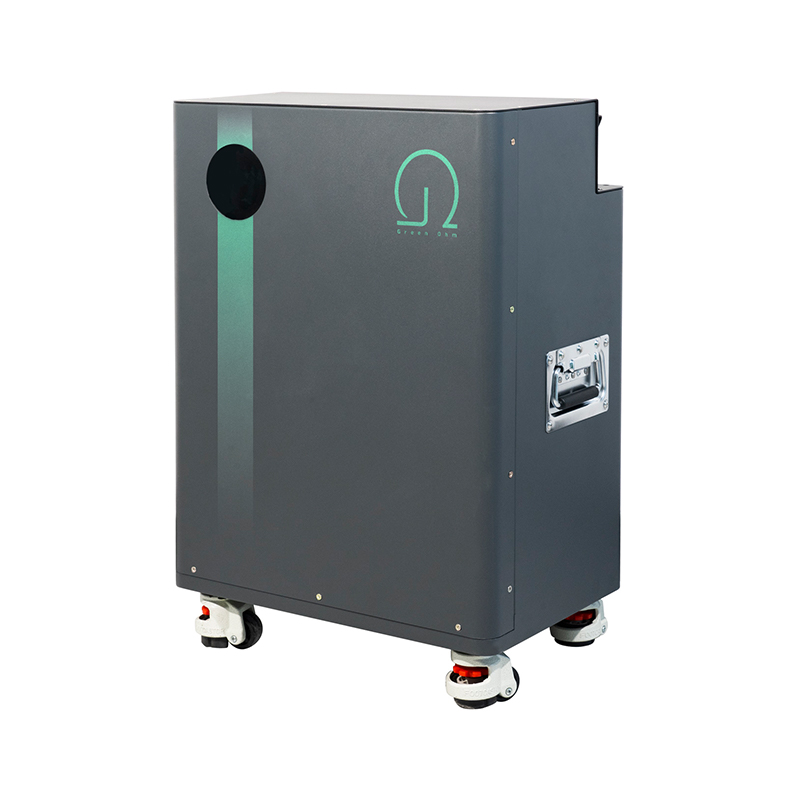

This system delivers 10kWh of storage with a 6kW continuous inverter rating, specifically configured to accommodate high-surge loads common in residential and light commercial environments. The elevated power output supports startup currents for inductive loads such as submersible pumps, compressors, and central air conditioning fan units without voltage sag. The portable form factor incorporates heavy-duty casters and a reinforced enclosure for repeated transport and site deployment. System architecture includes dual MPPT charge controllers, maximizing PV harvest efficiency under varying irradiation conditions.
| Model | GMLW24-1.2-5 | GMLM48-5-10 | GMLM48-6-10 | GMLM48-12-20 |
| Efficiency | ||||
| MPPT | 99.90% | |||
| Maximum Efficiency | 97.80% | |||
| Battery Efficiency | 98.10% | |||
| Battery Pack | ||||
| Battery Type | LFP | |||
| Battery Capacity | 314Ah | |||
| Storage Capacity | 5.1KWh | 10.2KWh | 10.2KWh | 20.5KWh |
| Voltage Range | 40~60V | |||
| Cycle Life | 8000 | |||
| Battery Port | ||||
| Operating Voltage Range | 40~60V | |||
| Standard Voltage | 51.2V | |||
| Max Current | 40A | 120A | 150A | 200A |
| Reverse Polarity Protection | Y | |||
| Photovoltaic Port | ||||
| Max Input Voltage | 500 VDC | |||
| MPPT Voltage Range | 30~450VDC | |||
| Max Input Power | 800 W | 4500 W | 5500 W | 11000W |
| Number of MPPT Trackers | 1 | 1 | 1 | 2 |
| Max Input Current per MPPT | 18A | 30A | 35A | 40A |
| DC Connection Type | Quick fit | |||
| AC Output | ||||
| Grid Type | Single | |||
| Rated Output Power | 1200W | |||
| Peak Power | 1200W | |||
| Standard Grid Voltage | 220/230V | |||
| Standard Grid Frequency | 50Hz/60Hz | |||
| Power Factor (PF) | 1leading-1lagging | |||
| THDi | <3% | |||
| AC Connection Type | Quick fit | |||
| Basic | ||||
| Communication | WIFI/GPRS/Ethernet/Meter/DRM(optional) | |||
| Display | LCD/APP/Web | |||
| Ambient Temperature | -20~60℃ | |||
| Relative Humidity (RH) | 4-95%(non-condensing) | |||
| Standard | ||||
| Safety | IEC62109-1/-2 | |||
| EMC | EN61000-6-1,EN61000-6-2,EN61000-6-3,IEC61000-2-2:2018 | |||
| GRID | AS4777.2,NRS097-2-1:2017,GBT34120-2017 | |||
Zhejiang Green Ohm Power Technology Co., Ltd., located in Wenzhou, Zhejiang, China, is a custom 10kWh 6kW Portable Energy Storage System Manufacturers and OEM 10kWh 6kW Portable Energy Storage System company. Our corporate vision is to "Unlock Energy's Full Potential," which drives us to consistently provide high-quality products and services to global customers.
For years, Green Ohm Power has been committed to being an innovation driver in the global transition to clean energy. With the mission of "building a sustainable energy future," the company leverages its independently developed PV inverters, energy storage systems, and smart energy management solutions to deliver comprehensive energy scenarios for residential, commercial, industrial, and microgrid applications.
To date, we have established long-term partnerships with users across Europe, America, the Middle East, Africa, Southeast Asia, and other regions. We are dedicated to building an. Moving forward, we will continue to expand our technological capabilities in integrated solar-storage-charging systems, collaborate with global partners, and promote smart energy networks. Together, we will bring the benefits of clean energy to more households and enterprises, building a low-carbon and sustainable future.
