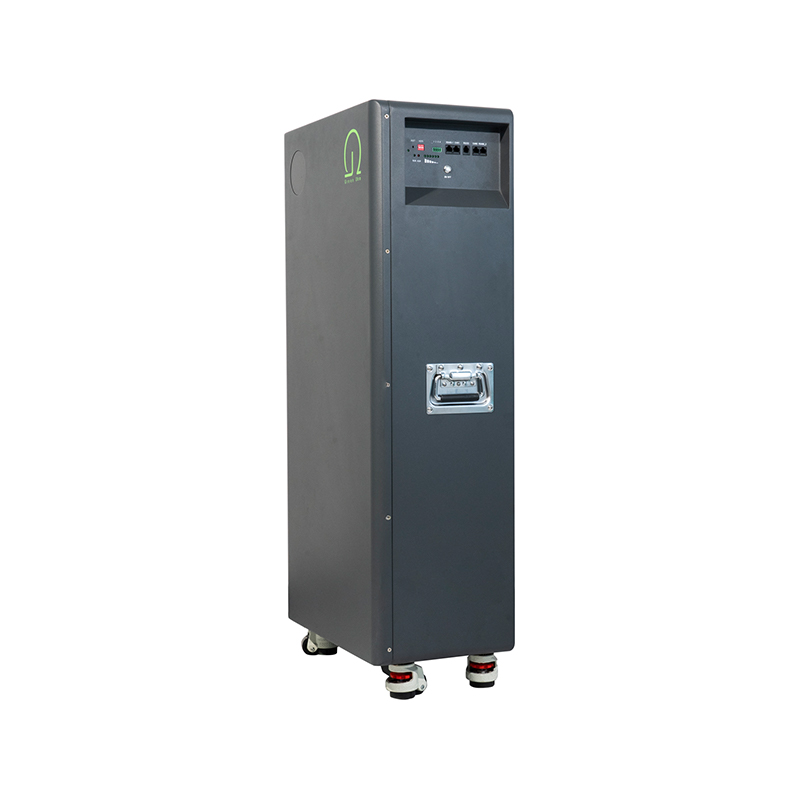

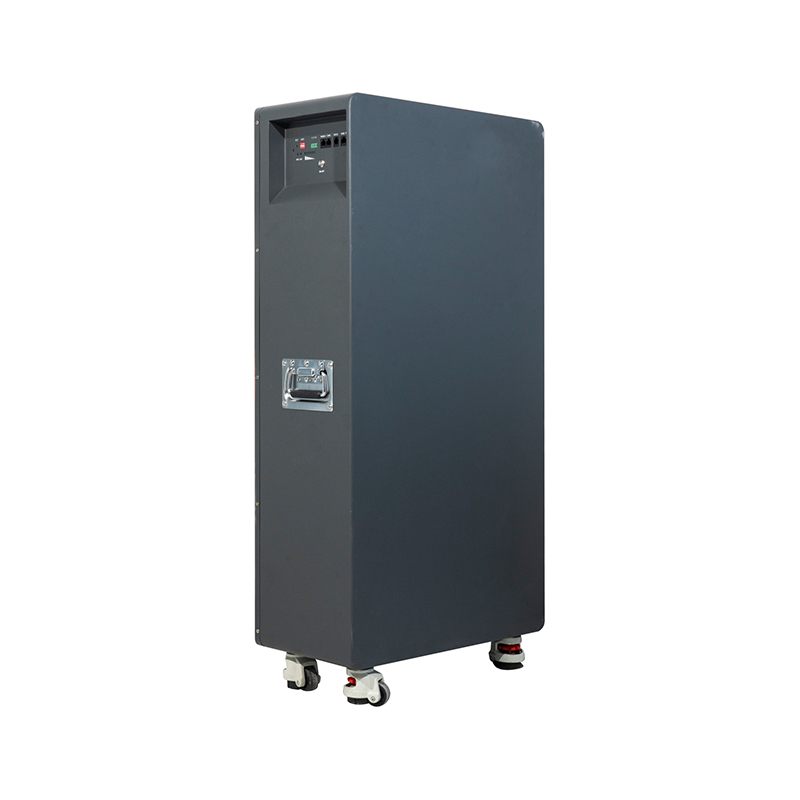

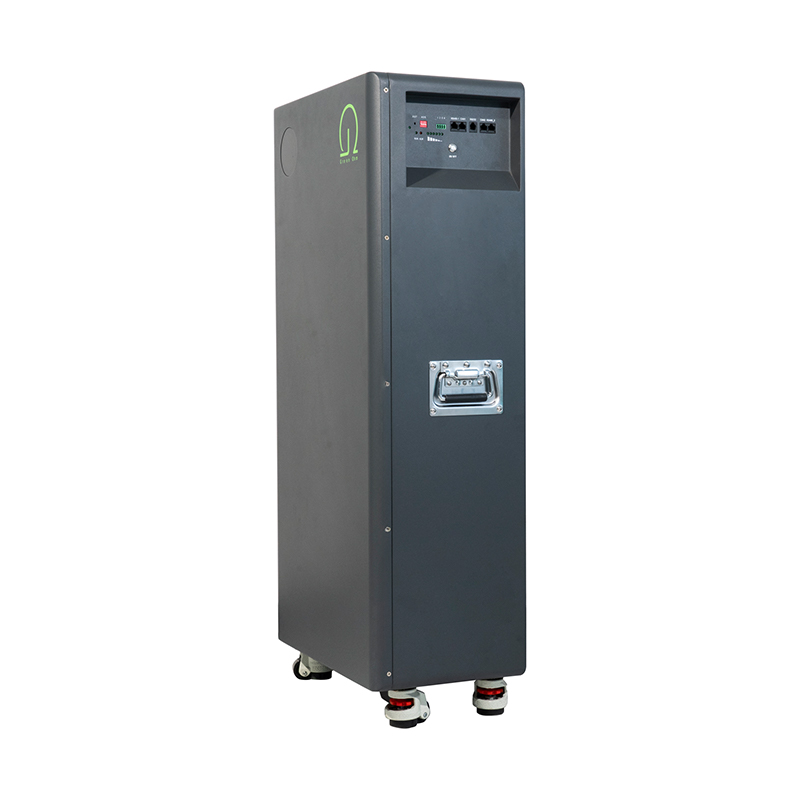

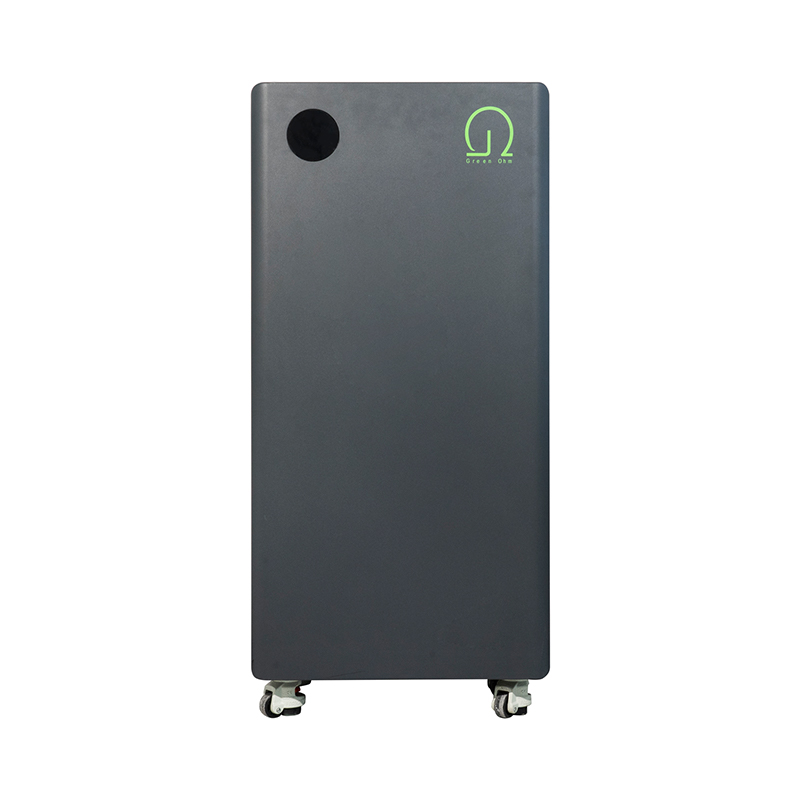

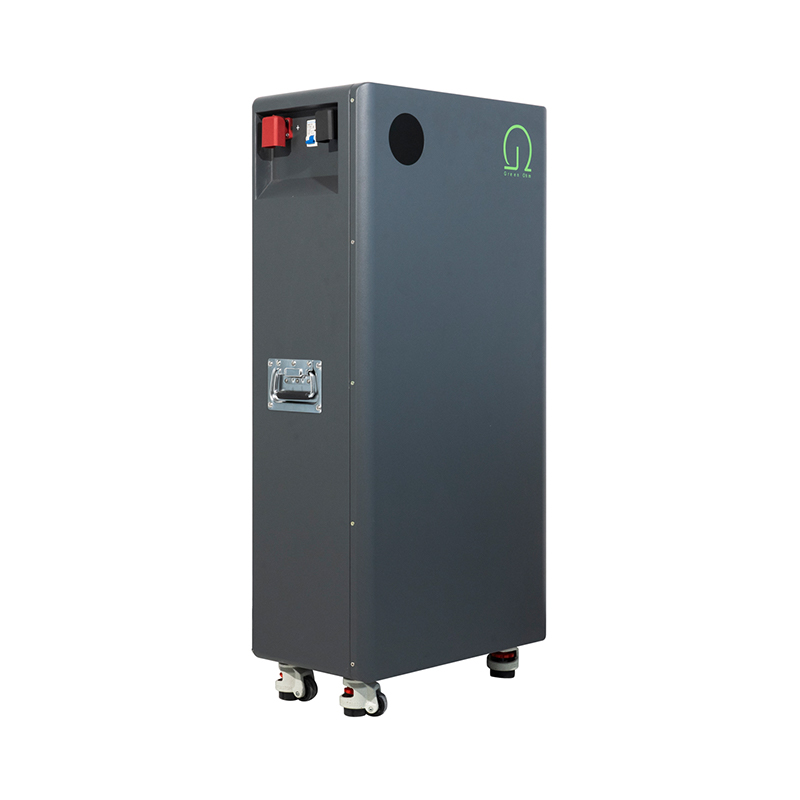

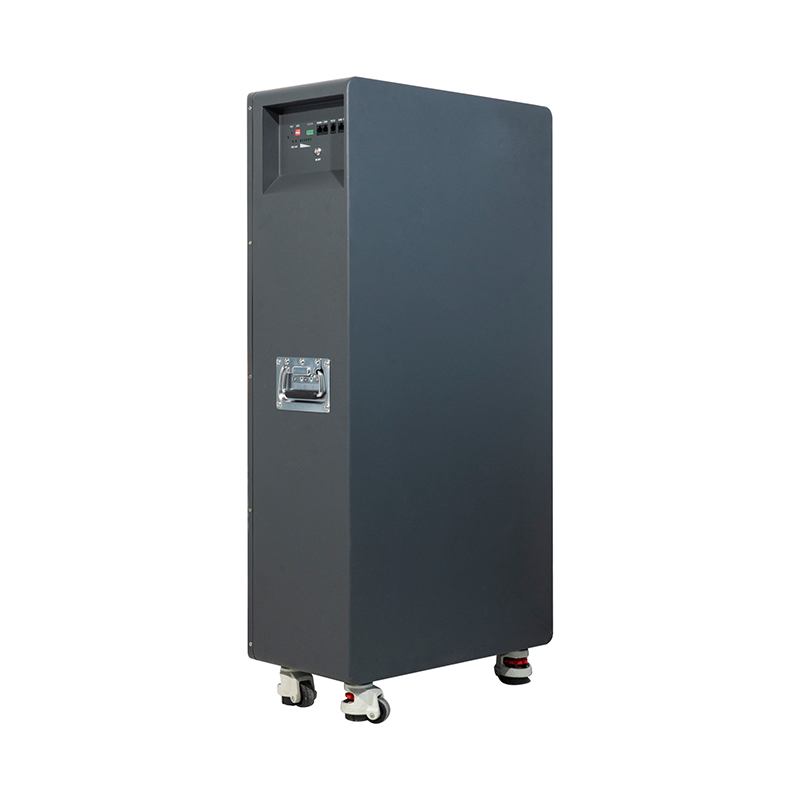

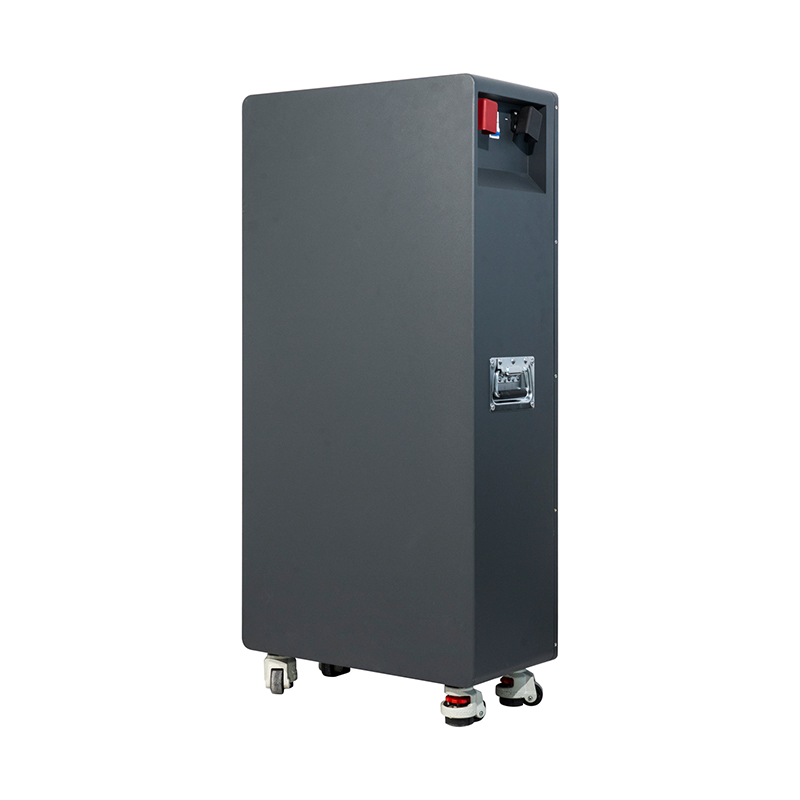

This energy storage system further enhances power output performance based on the 16 kWh configuration, making it suitable for users with higher instantaneous power demands, such as large-capacity home appliances, heavy-duty power tools, or simultaneous multi-device supply.
The combination of an advanced BMS and robust LFP battery technology ensures improved safety, reliability, and durability even under demanding load conditions.
It features a full suite of monitoring and protection functions, tracking temperature, current, voltage, and other critical indicators in real time to safeguard performance and extend service life.
| Model | GMLW 12-1.2-4 | GMLM24-5-8 | GMLM48-6-16 | GMLM48-12-16 |
| Efficiency | ||||
| MPPT | 99.90% | |||
| Maximum Efficiency | 97.80% | |||
| Battery Efficiency | 98.10% | |||
| Battery Pack | ||||
| Battery Type | LFP | |||
| Battery Capacity | 314Ah | |||
| Storage Capacity | 4KWh | 8KWh | 16KWh | |
| Voltage Range | 10~14.6V | 24~30.5V | 40 ~ 60V | 40 ~ 60V |
| Cycle Life | 8000 | |||

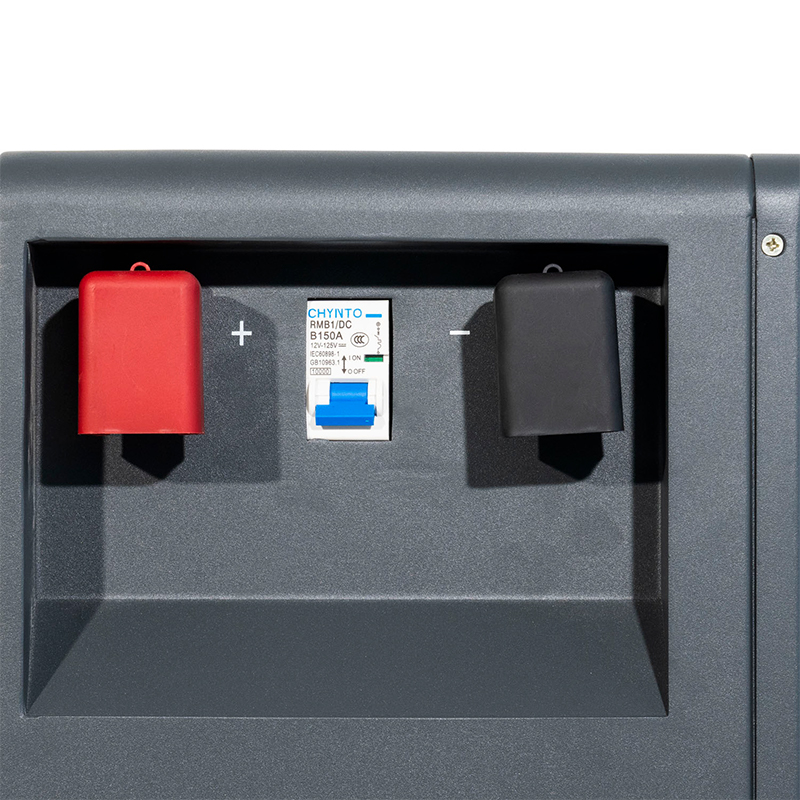

| Battery Port | ||||
| Operating Voltage Range | 10~14.6V | 24~30.5V | 40 ~ 60V | 40 ~ 60V |
| Standard Voltage | 12.8V | 25.6V | 51.2V | 51.2V |
| Max Current | 100A | 200A | 100A | 200A |
| Reverse Polarity Protection | Y | |||
| Photovoltaic Port | ||||
| Max Input Voltage | 500 VDC | |||
| MPPT Voltage Range | 30~450VDC | 60~450VDC | 90~ 450VDC | |
| Max Input Power | 800 W | 9000 W | 9000 W | 9000W+9000W |
| Number of MPPT Trackers | 1 | 2 | 1 | 2 |
| Max Input Current per MPPT | 18A | 27A | 27A | 27A+27A |
| DC Connection Type | Quick fit | |||
| AC Output | ||||
| Grid Type | Single | |||
| Rated Output Power | 1200W | 5000W | 6200W | 12000W |
| Peak Power | 1200W | 5000W | 6200W | 12000W |
| Standard Grid Voltage | 220/230V | |||
| Standard Grid Frequency | 50Hz/60Hz | |||
| Power Factor (PF) | 1leading-1lagging | |||
| THDi | <3% | |||
| AC Connection Type | Quick fit | |||
| Basic | ||||

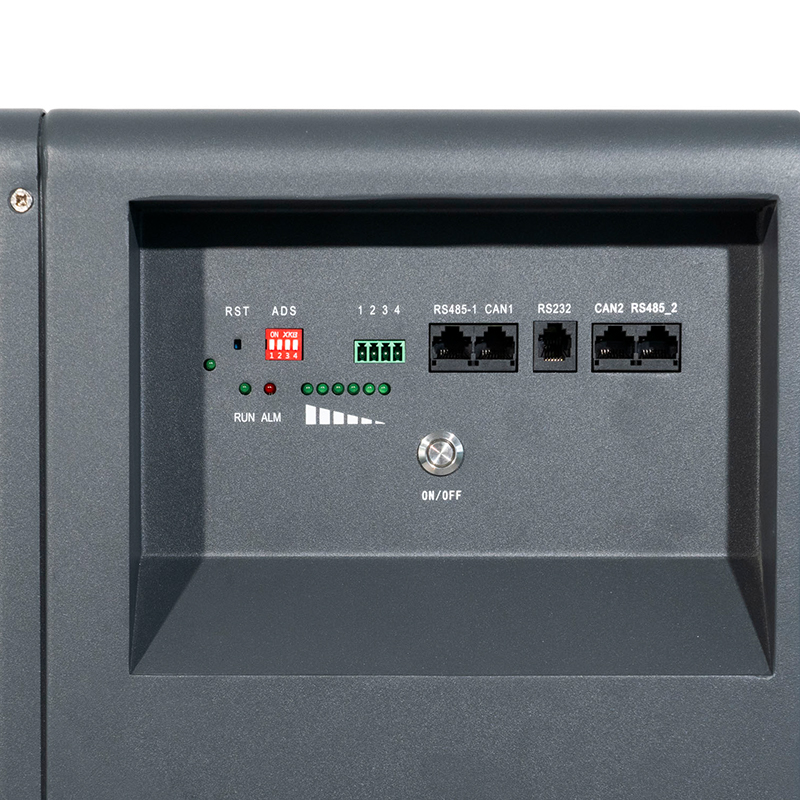

| Communication | WIFI/GPRS/Ethernet/Meter/DRM(optional) | |||
| Display | LCD/APP/Web | |||
| Ambient Temperature | -20~60℃ | |||
| Relative Humidity (RH) | 4-95%(non-condensing) | |||
| Standard | ||||
| Safety | IEC62109-1/-2 | |||
| EMC | EN61000-6-1,EN61000-6-2,EN61000-6-3,IEC61000-2-2:2018 | |||
| GRID | AS4777.2,NRS097-2-1:2017,GBT34120-2017 | |||
