16 kWh capacity offers greater power to support higher energy demands, allowing operation of heating & cooling devices, power tools, and other high-power loads.

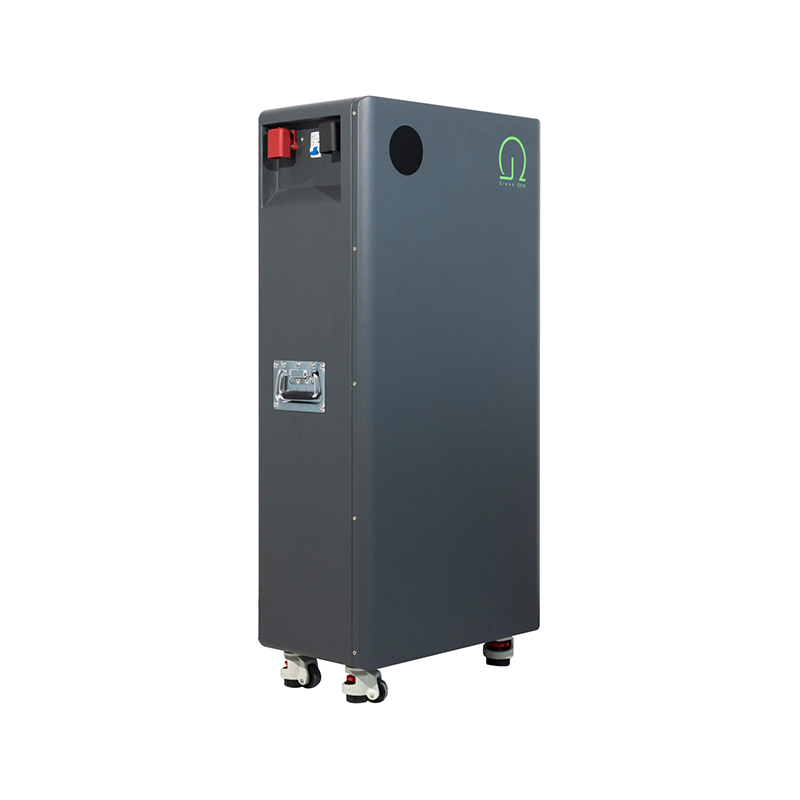

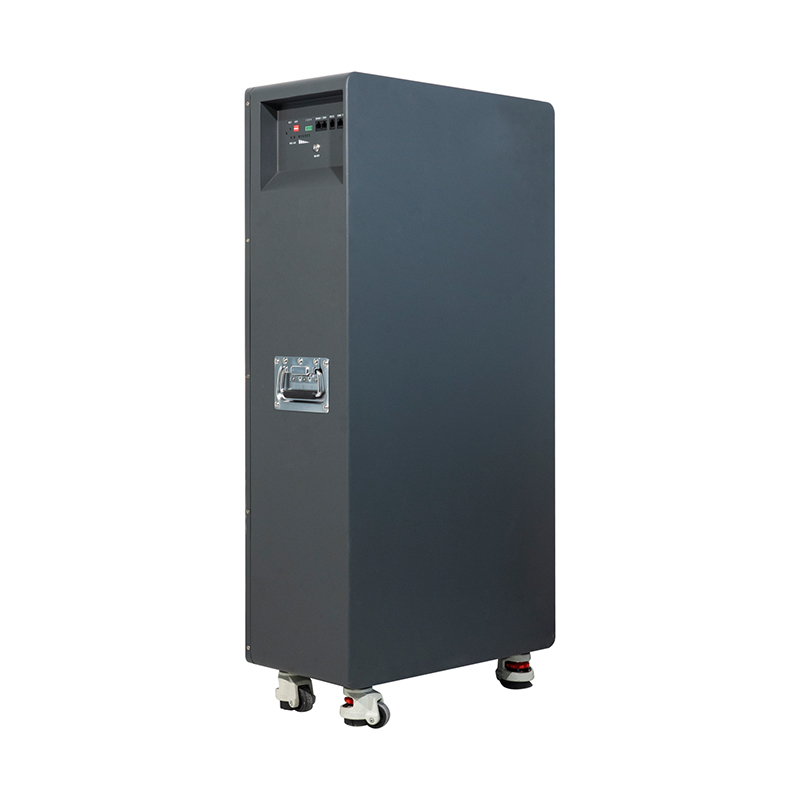

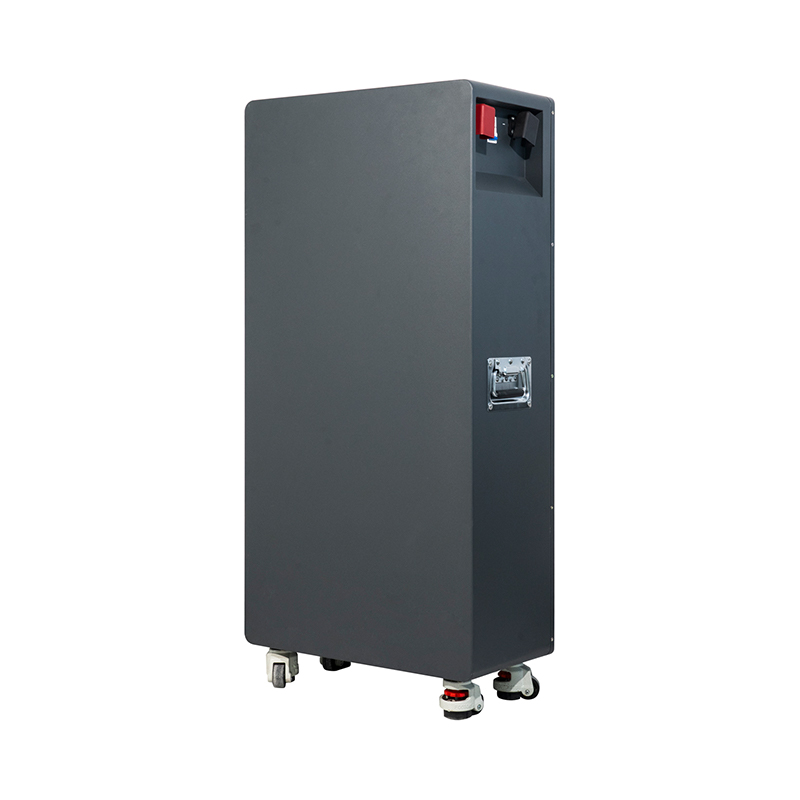

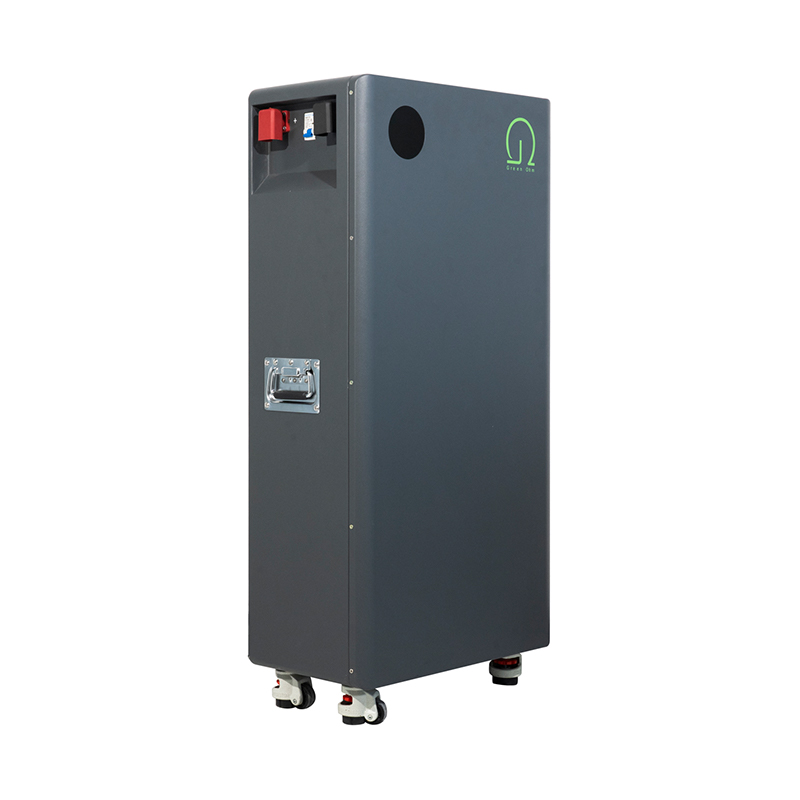

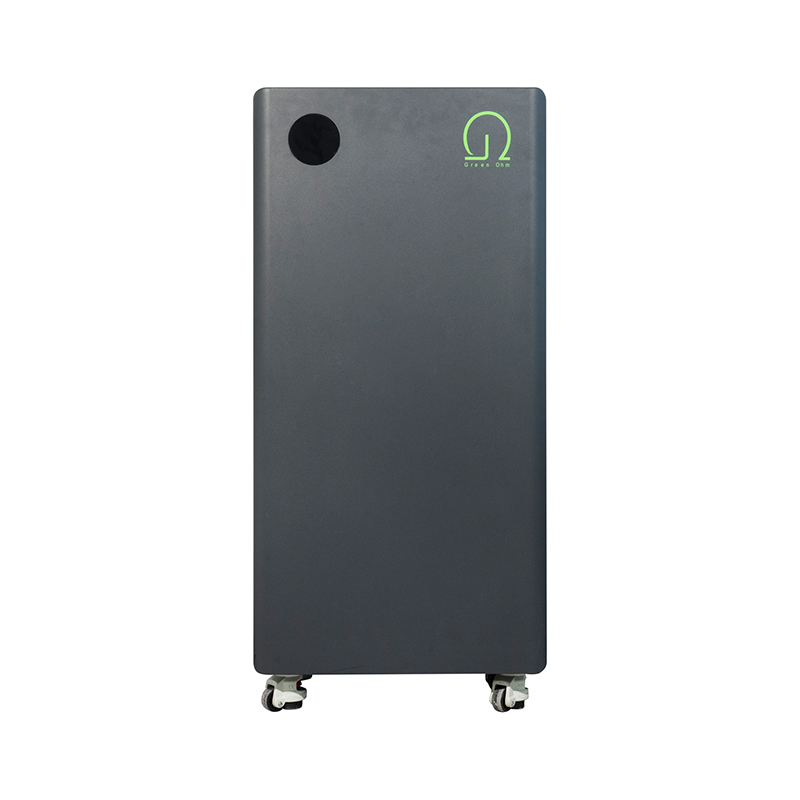

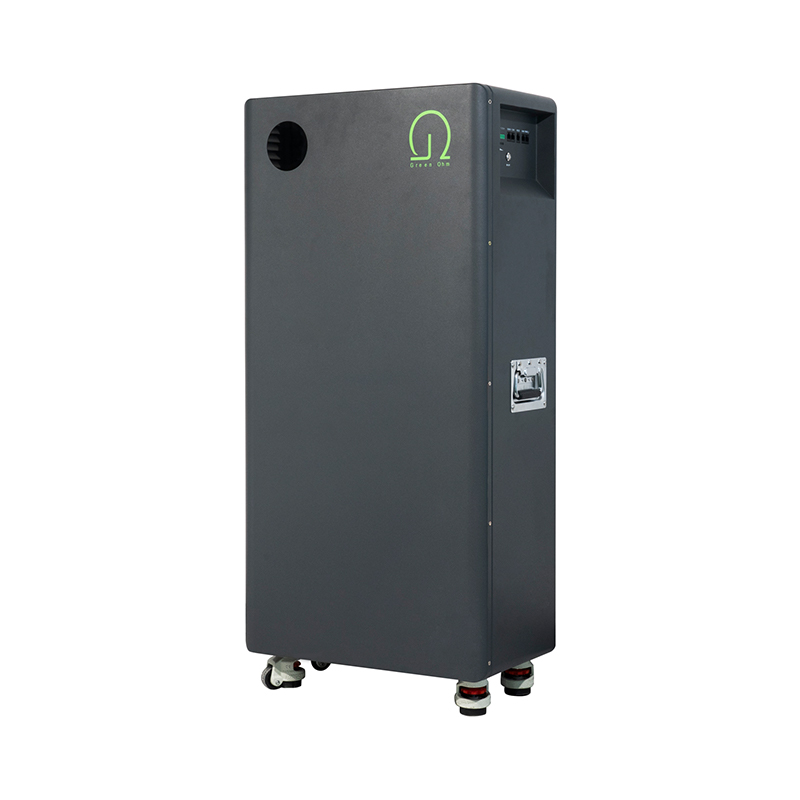

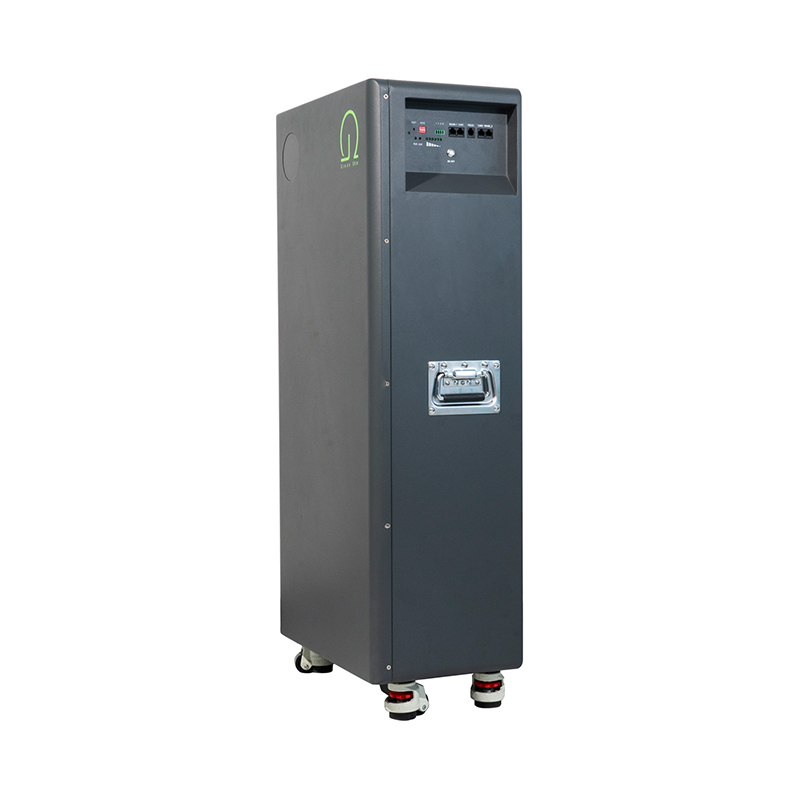

The bottom-mounted wheel design makes the unit easy to move both indoors and outdoors. Utilizing high-performance LFP battery technology, the system provides extended cycle life and excellent thermal stability, delivering consistent power to multiple loads simultaneously.
Equipped with comprehensive protection mechanisms — including overcharge, over-discharge, short-circuit, over-temperature, and over-current protection — it ensures safe operation with a single-button peace-of-mind experience.
| Basic Parameters | GMLM24-5-8/48-6-16/48-12-16 | GMLW48-6-16/48-12-16 |
| Basic Electrical Parameters | ||
| Battery Type | LFP (Lithium Iron Phosphate) | |
| Nominal Capacity | 5/7.5/15 | 7.5/15 |
| Rated Battery Voltage | 12.8/25.6/51.2V | 25.6/51.2V |
| Operating Voltage Range | 12~60V | 24~60V |
| Max Charging/Discharging Current | 100/200/200A | 200/200A |
| Operating Temperature Range | -10°C to 55°C | |
| Operating RH | 5% to 95% | |
| Weight | 22/44/88KG | 44/88KG |
| Size (WxDxH) | 410*320*120mm | 302*353*208mm |
| 352*300*190mm | 594*353*208mm | |
| 452*353*210mm | ||
| PV Input | ||
| Num. of MPPT Trackers | 2 | |
| Max.PV Array (input) Power | 9000W+9000W | |
| Max.Voltage of Open Circuit | 500VDC | |
| Solar charging current range | 0-150A | |
| MPPT Voltage Range | 90~450VDC | |
| MPPT Tracking Efficiency | 99.90% | |
| Inverter Output | ||
| Rated Output Power | 12000VA/12000W | |
| Max.Peak Power | 24KW | |
| Rated Output Voltage | 230Vac±5% | |
| Max.Battery Inverter Efficiency | >93% | |
| Rated AC Frequency | 50Hz/60Hz | |
| Waveform | Pure sine wave | |
| Output Phase | Single-Phase | |
