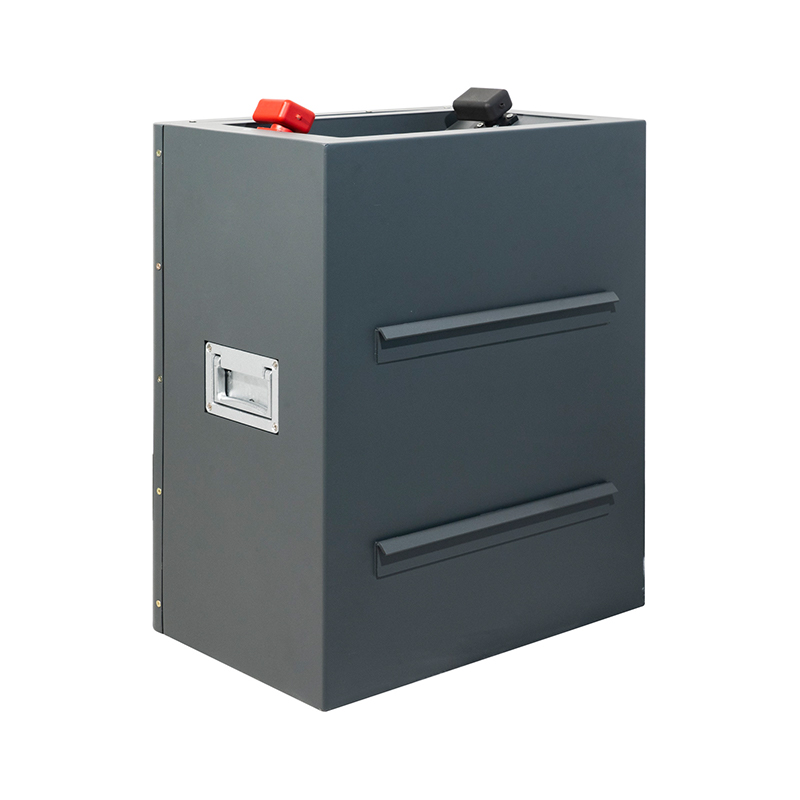

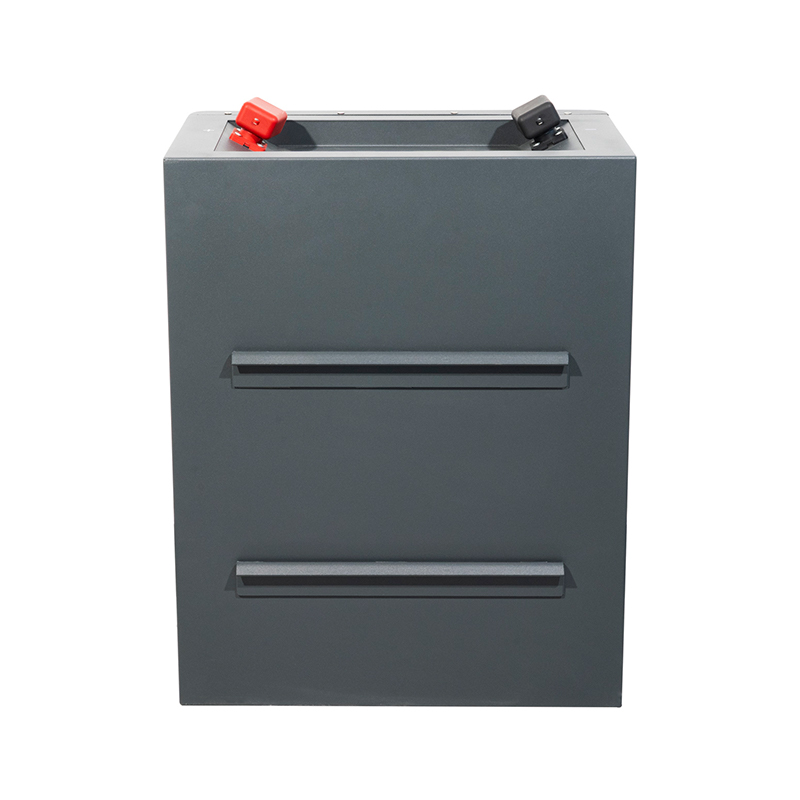

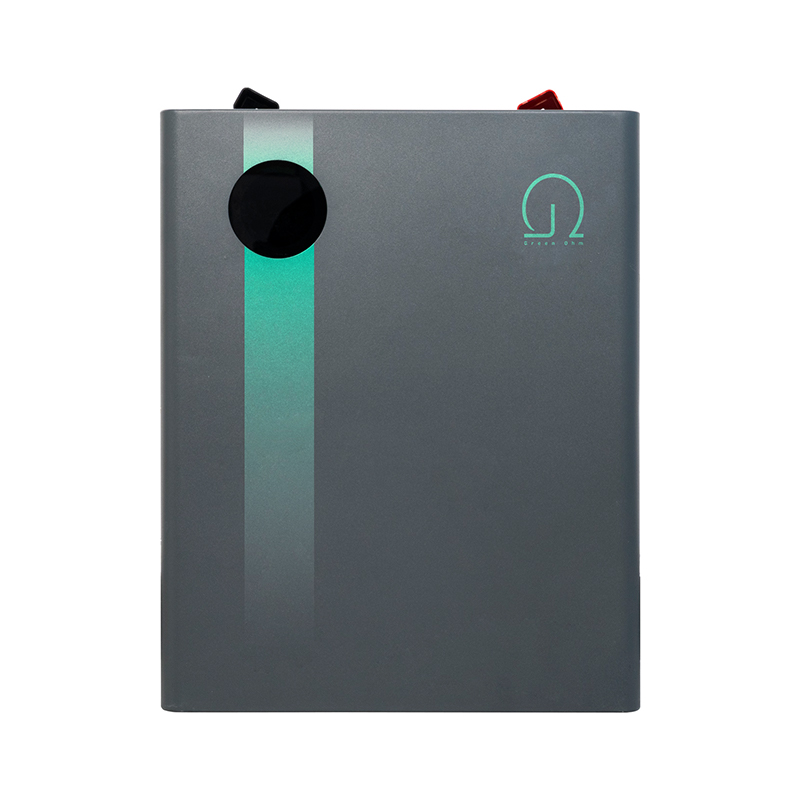

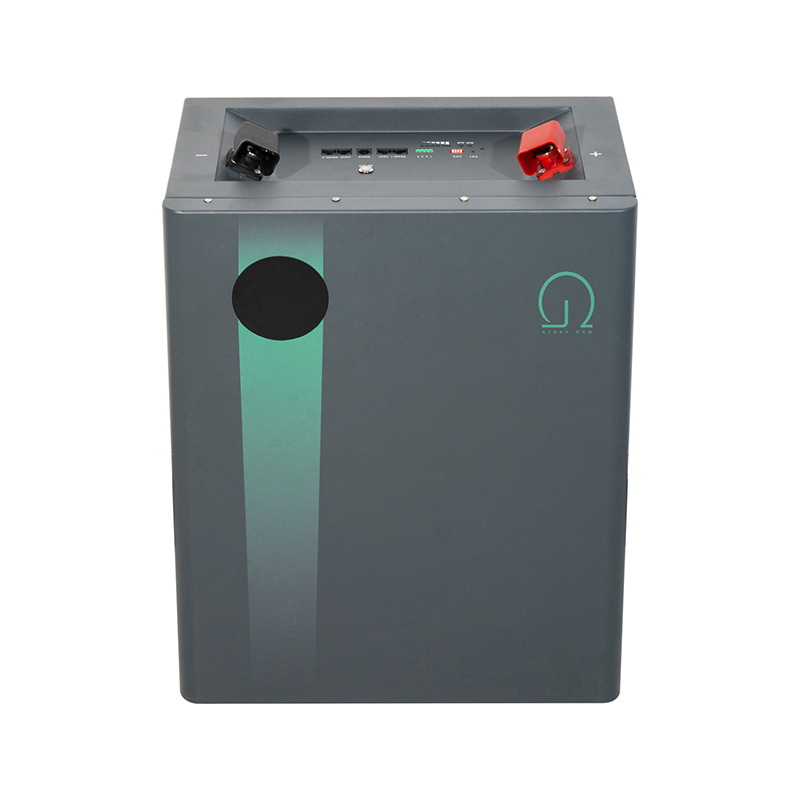

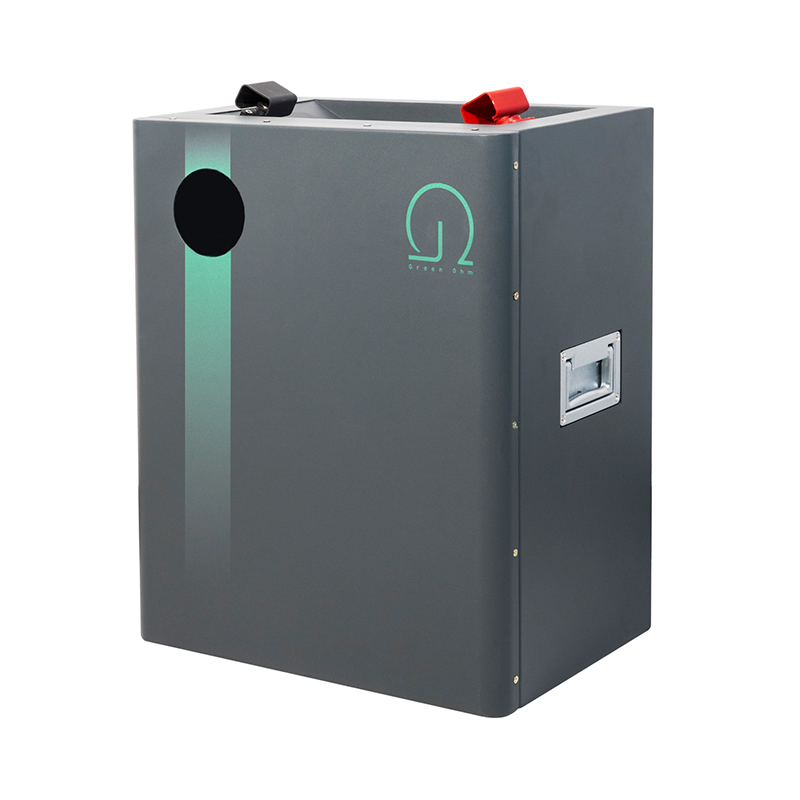

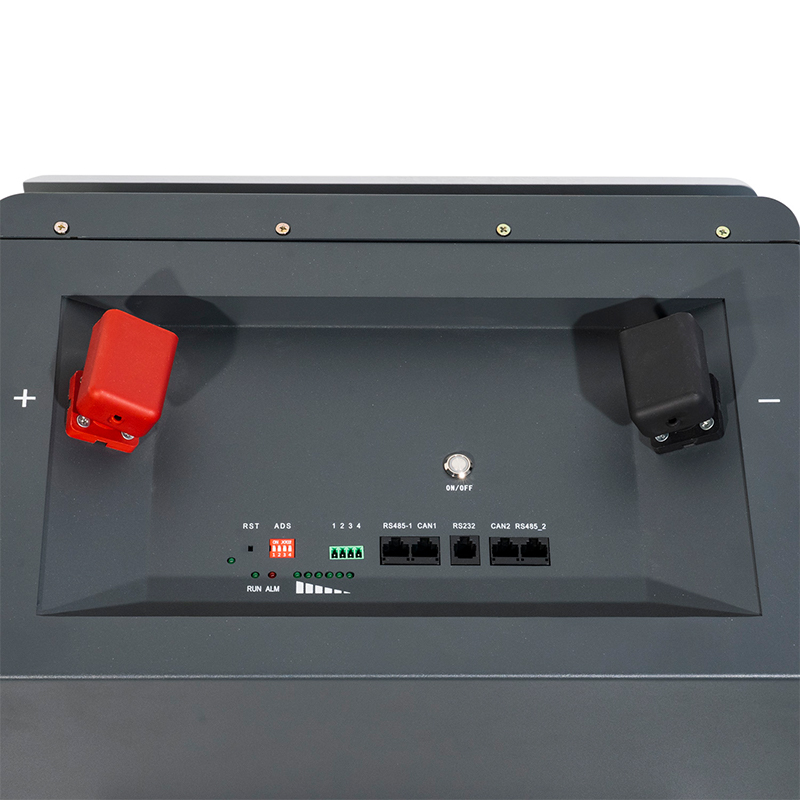

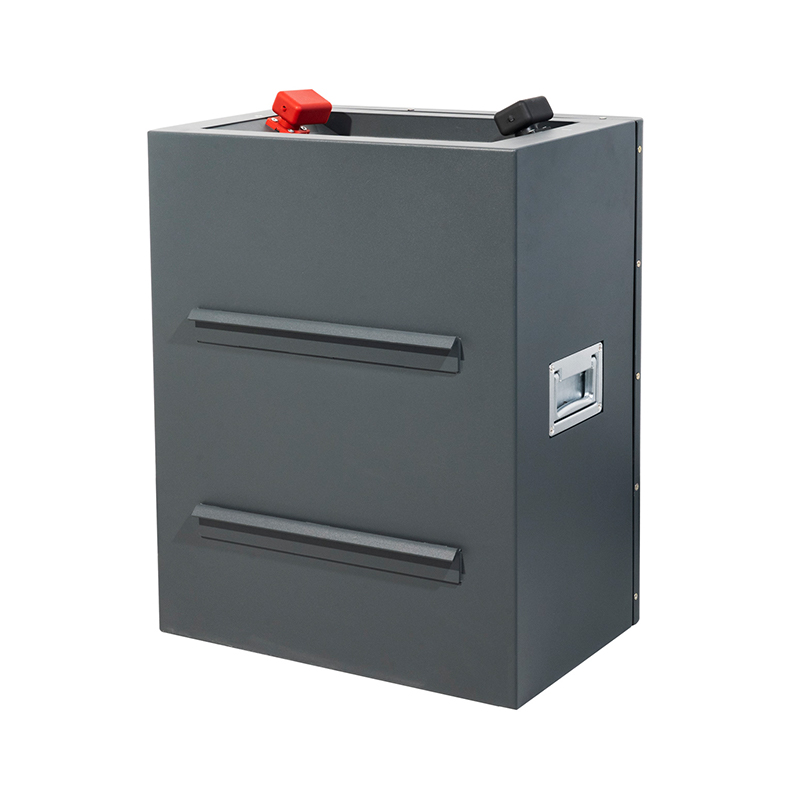

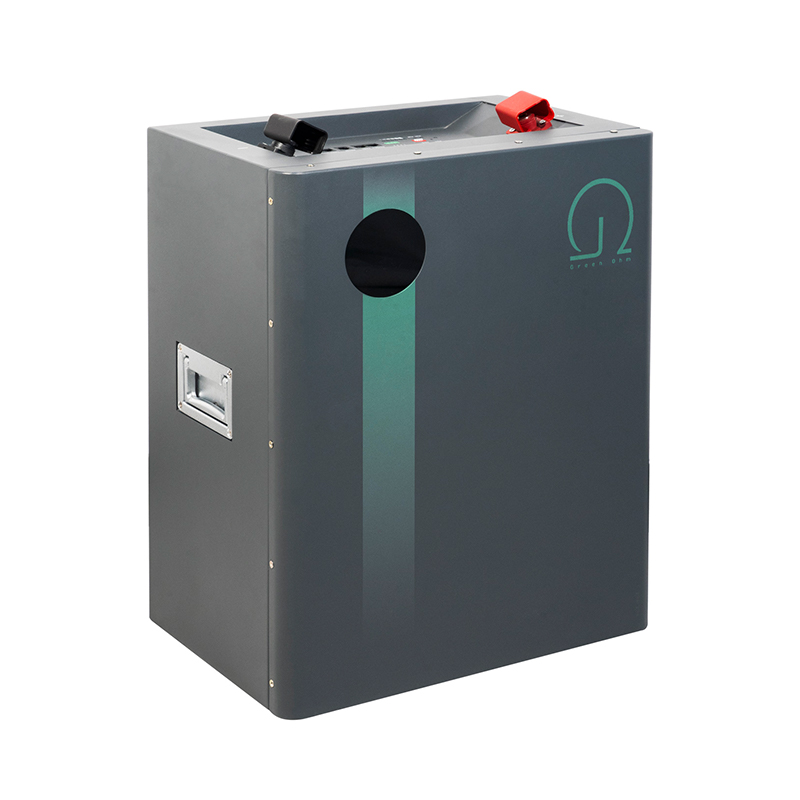

Designed for households requiring greater daily energy shifting capability, this 5kWh system offers increased storage capacity while maintaining the same 1.2kW continuous output architecture. The expanded capacity enables full capture of surplus PV generation during daylight hours, supporting extended evening consumption without grid draw. The system employs lithium iron phosphate (LFP) cell chemistry, delivering consistent cycle life exceeding 6,000 cycles at 80% depth of discharge. An integrated battery management system (BMS) provides real-time monitoring of cell voltage, temperature, and state of charge, ensuring operational safety across varying ambient conditions.
| Model | GMLW24-1.2-5 | GMLM48-5-10 | GMLM48-6-10 | GMLM48-12-20 |
| Efficiency | ||||
| MPPT | 99.90% | |||
| Maximum Efficiency | 97.80% | |||
| Battery Efficiency | 98.10% | |||
| Battery Pack | ||||
| Battery Type | LFP | |||
| Battery Capacity | 314Ah | |||
| Storage Capacity | 5.1KWh | 10.2KWh | 10.2KWh | 20.5KWh |
| Voltage Range | 40~60V | |||
| Cycle Life | 8000 | |||
| Battery Port | ||||
| Operating Voltage Range | 40~60V | |||
| Standard Voltage | 51.2V | |||
| Max Current | 40A | 120A | 150A | 200A |
| Reverse Polarity Protection | Y | |||
| Photovoltaic Port | ||||
| Max Input Voltage | 500 VDC | |||
| MPPT Voltage Range | 30~450VDC | |||
| Max Input Power | 800 W | 4500 W | 5500 W | 11000W |
| Number of MPPT Trackers | 1 | 1 | 1 | 2 |
| Max Input Current per MPPT | 18A | 30A | 35A | 40A |
| DC Connection Type | Quick fit | |||
| AC Output | ||||
| Grid Type | Single | |||
| Rated Output Power | 1200W | |||
| Peak Power | 1200W | |||
| Standard Grid Voltage | 220/230V | |||
| Standard Grid Frequency | 50Hz/60Hz | |||
| Power Factor (PF) | 1leading-1lagging | |||
| THDi | <3% | |||
| AC Connection Type | Quick fit | |||
| Basic | ||||
| Communication | WIFI/GPRS/Ethernet/Meter/DRM(optional) | |||
| Display | LCD/APP/Web | |||
| Ambient Temperature | -20~60℃ | |||
| Relative Humidity (RH) | 4-95%(non-condensing) | |||
| Standard | ||||
| Safety | IEC62109-1/-2 | |||
| EMC | EN61000-6-1,EN61000-6-2,EN61000-6-3,IEC61000-2-2:2018 | |||
| GRID | AS4777.2,NRS097-2-1:2017,GBT34120-2017 | |||
