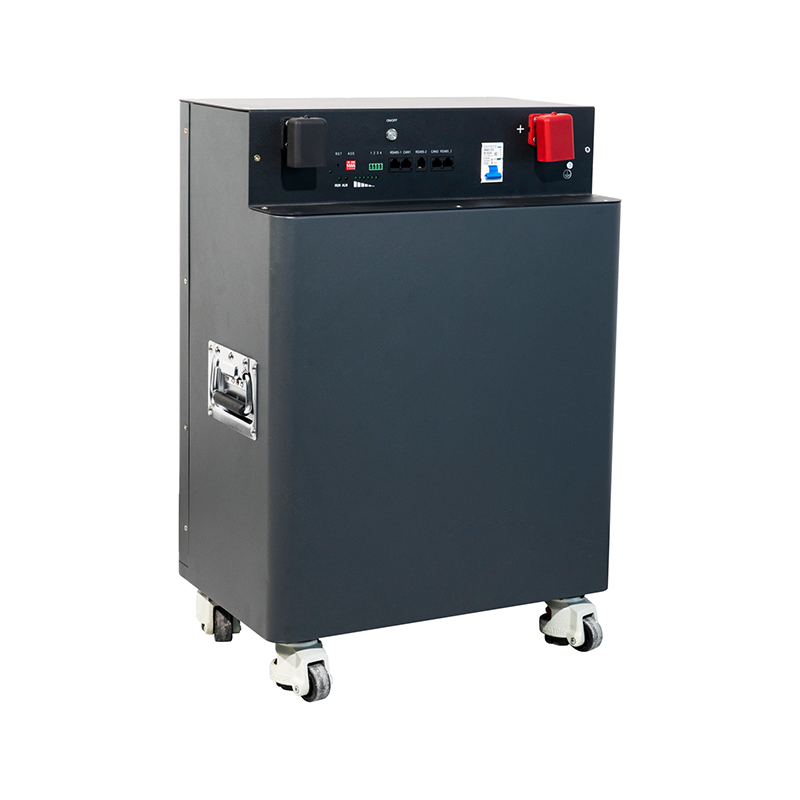

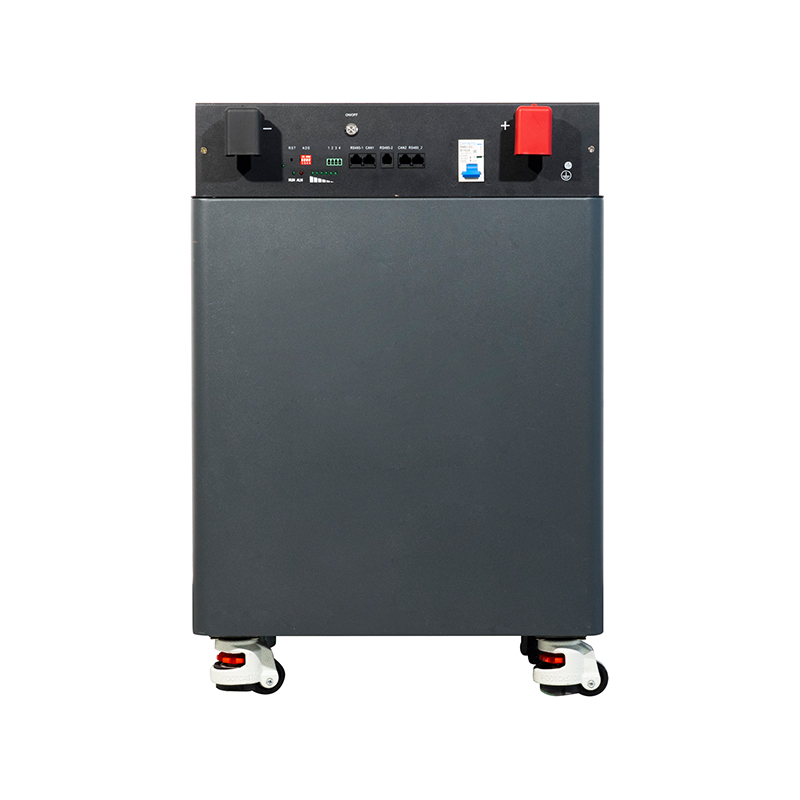

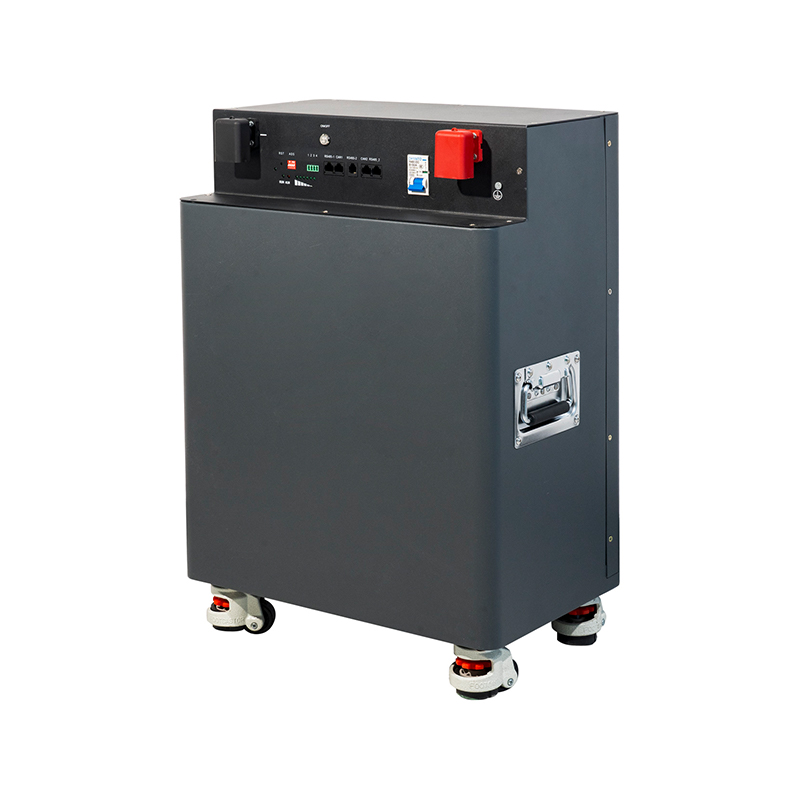

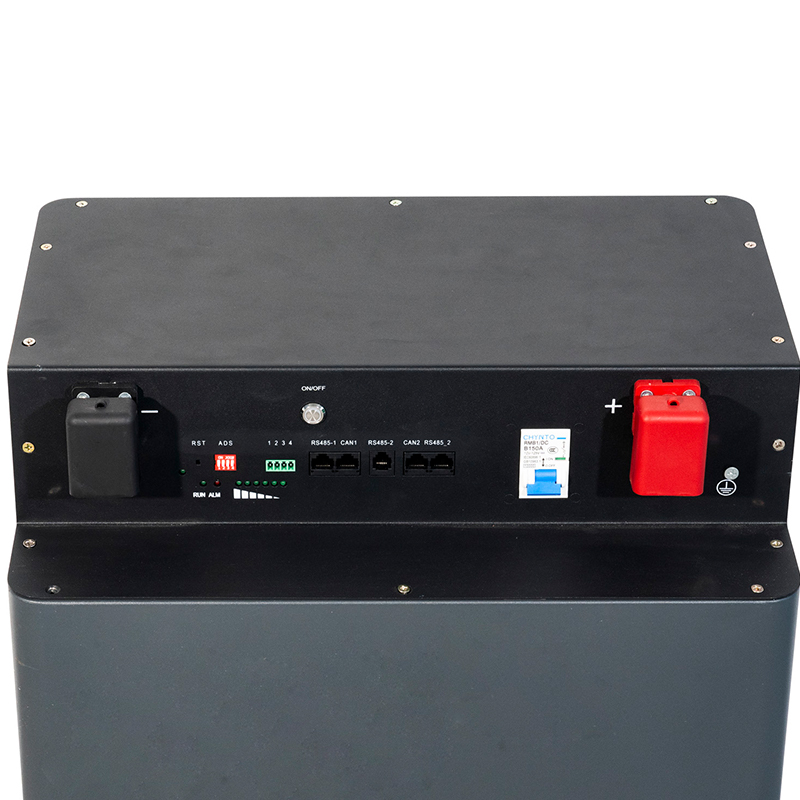

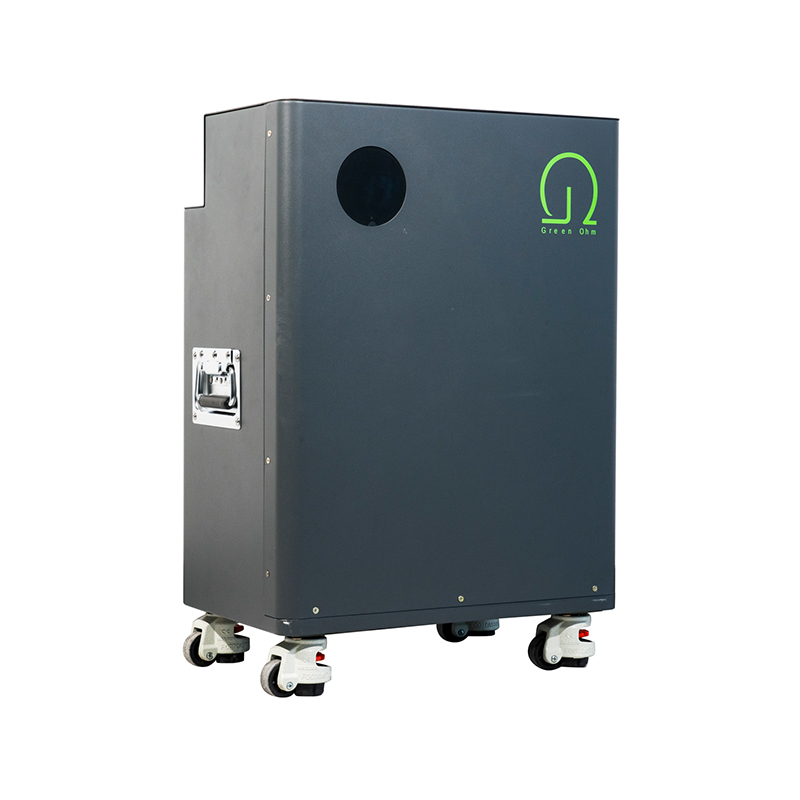

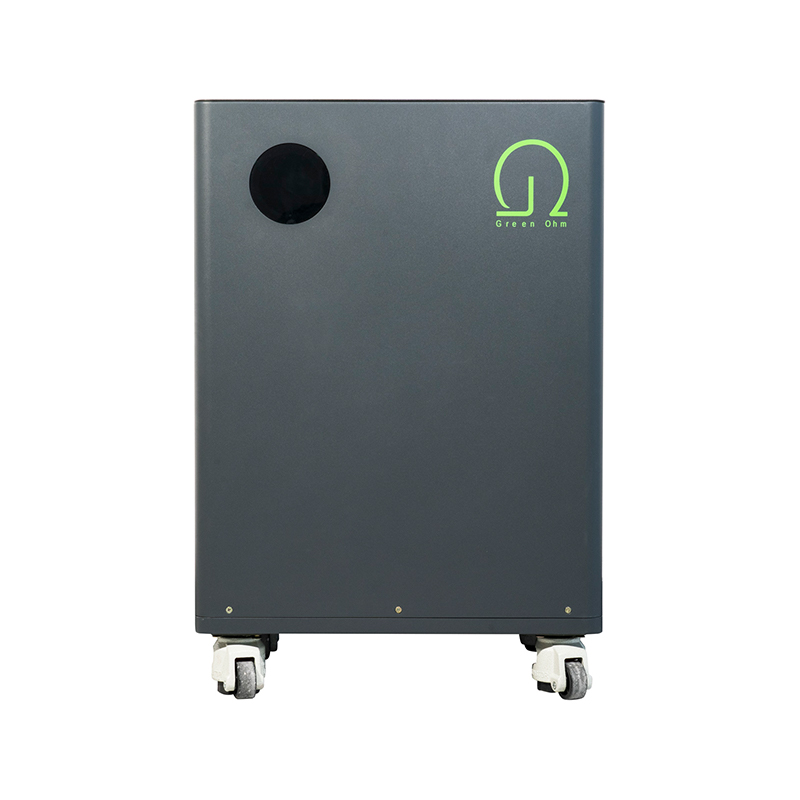

8 kWh capacity meets basic household loads and essential device backup power needs.
It features advanced Lithium Iron Phosphate (LFP) battery cells and an intelligent Battery Management System (BMS) to deliver efficient, safe, and stable energy support. The system is equipped with sturdy wheels for smooth mobility, making it ideal for temporary power use and emergency power supply scenarios.
Supports multiple charging modes, including solar energy and AC mains charging (additional adapters required), enabling flexible integration with renewable energy sources or traditional power inputs.
| Basic Parameters | GMLM24-5-8/48-6-16/48-12-16 | GMLW48-6-16/48-12-16 |
| Basic Electrical Parameters | ||
| Battery Type | LFP (Lithium Iron Phosphate) | |
| Nominal Capacity | 5/7.5/15 | 7.5/15 |
| Rated Battery Voltage | 12.8/25.6/51.2V | 25.6/51.2V |
| Operating Voltage Range | 12~60V | 24~60V |
| Max Charging/Discharging Current | 100/200/200A | 200/200A |
| Operating Temperature Range | -10°C to 55°C | |
| Operating RH | 5% to 95% | |
| Weight | 22/44/88KG | 44/88KG |
| Size (WxDxH) | 410*320*120mm | 302*353*208mm |
| 352*300*190mm | 594*353*208mm | |
| 452*353*210mm | ||
| PV Input | ||
| Num. of MPPT Trackers | 2 | |
| Max.PV Array (input) Power | 9000W+9000W | |
| Max.Voltage of Open Circuit | 500VDC | |
| Solar charging current range | 0-150A | |
| MPPT Voltage Range | 90~450VDC | |
| MPPT Tracking Efficiency | 99.90% | |
| Inverter Output | ||
| Rated Output Power | 12000VA/12000W | |
| Max.Peak Power | 24KW | |
| Rated Output Voltage | 230Vac±5% | |
| Max.Battery Inverter Efficiency | >93% | |
| Rated AC Frequency | 50Hz/60Hz | |
| Waveform | Pure sine wave | |
| Output Phase | Single-Phase | |
